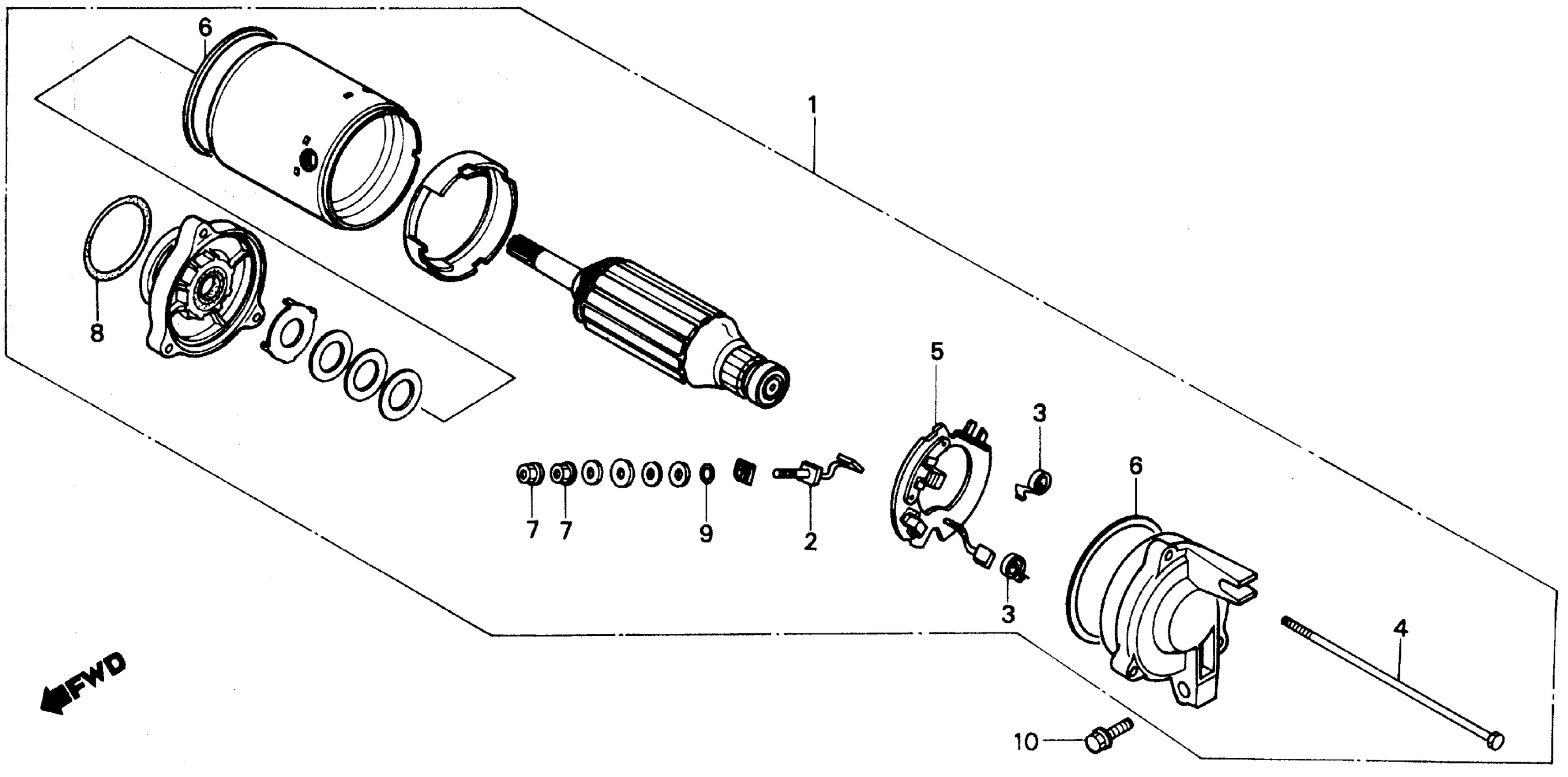

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 STARTER MOTOR Diagram

MOTOR ASSY., STARTER This part replaces 31200-MN0-008.

31200-MN0-018

Unavailable

MOTOR ASSY., STARTER

31200-MN0-018

Unavailable

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$24.71

SPRING, CARBON BRUSH

31204-KS5-901

$2.92

BOLT, SETTING

31205-MN4-008

$5.80

HOLDER SET, BRUSH

31206-MN4-008

$23.32

RING

31207-KS5-901

$3.12

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING

91309-MA6-000

$3.97

O-RING

91320-MB0-000

$2.43

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
