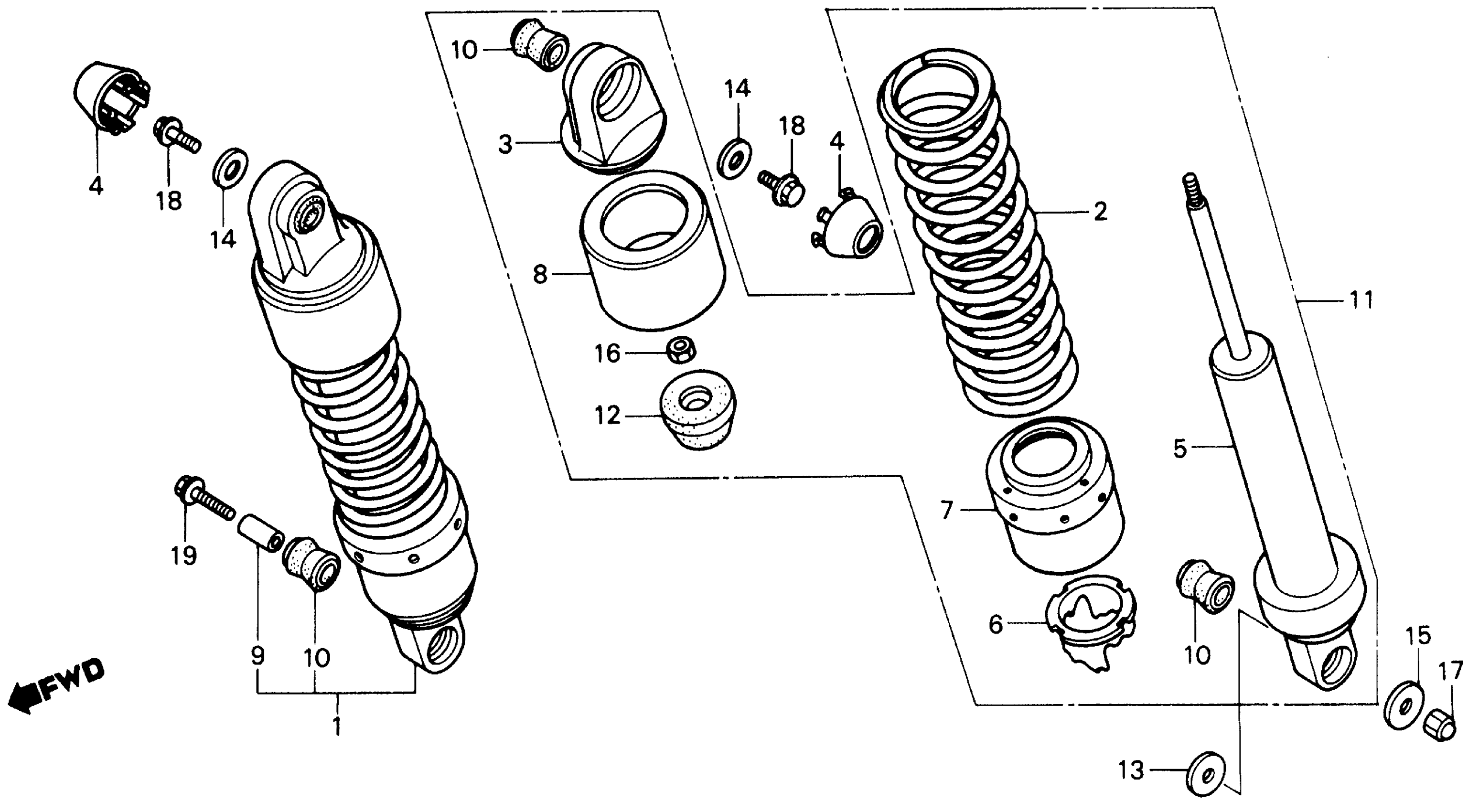

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CUSHION ASSY RR,S This part replaces 52400-MN0-003.

52400-MN0-405

Unavailable

2

SPRING, RR. SHOCK ABSORBER (16.7/22.5N/MM) (SHOWA)

52401-MN0-003

Unavailable

3

JOINT (UPPER) (SHOWA)

52403-MN0-003

Unavailable

4

CAP, RR. SHOCK ABSORBER JOINT (UPPER)

52405-MK3-000

Unavailable

5

DAMPER, RR. (SHOWA) (NOT AVAILABLE)

52410-MN0-003

Unavailable

6

ADJUSTER, SPRING This part replaces 52422-ME9-003.

52422-ME9-013

Unavailable

6

ADJUSTER, SPRING

52422-ME9-013

Unavailable

7

SEAT, SPRING (NOT AVAILABLE)

52458-ME9-003

Unavailable

8

CASE, RR. SHOCK ABSORBER (UPPER) (SHOWA) (NOT AVAILABLE)

52460-MN0-003

Unavailable

9

COLLAR, RR. SHOCK ABSORBER

52486-463-000

$7.77

10

BUSH, RUBBER (UPPER) (SHOWA)

52489-461-771

$6.34

11

CUSHION ASSY RR,S This part replaces 52500-MN0-003.

52400-MN0-405

Unavailable

12

RUBBER, STOPPER

52517-MK3-003

Unavailable

13

WASHER, PLAIN (16MM)

90439-463-000

$1.50

14

WASHER (8.5X26)

90504-MA6-000

$1.66

15

WASHER (10.3MM)

90521-292-000

$3.42

16

NUT, HEX. (12MM)

94002-12000-0S

$2.06

17

NUT, CAP (10MM)

94021-10020-0S

$2.08

18

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

19

BOLT, FLANGE (10X35) This part replaces 95800-10035-02.

95801-10035-02

$2.31
