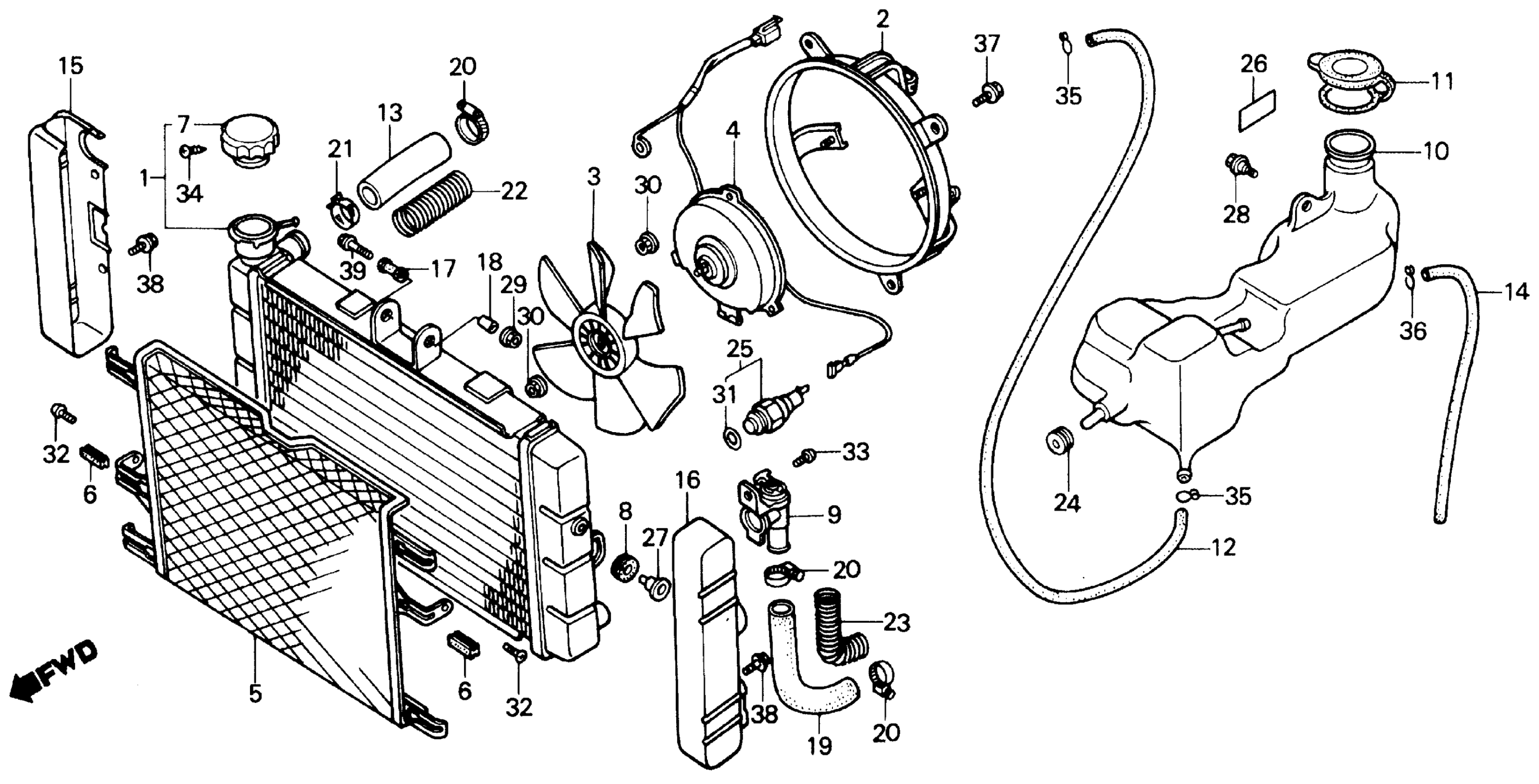

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 RADIATOR Diagram

#

Description
Price

1

RADIATOR (TOYO)

19010-MN0-P00

Unavailable

1

RADIATOR (TOYO) This part replaces 19010-MN0-671.

19010-MN0-P00

Unavailable

2

SHROUD

19015-MN0-003

Unavailable

3

FAN, COOLING

19020-MG8-003

$62.31

4

MOTOR, FAN This part replaces 19030-MN0-014.

19030-MN0-024

Unavailable

4

MOTOR, FAN

19030-MN0-024

Unavailable

5

GRILLE, RADIATOR

19032-MN0-000

Unavailable

6

RUBBER, RADIATOR GRILLE

19033-MN0-000

Unavailable

7

CAP, RADIATOR This part replaces 19045-MB3-000.

19045-MZ3-405

$32.49

8

RUBBER, RADIATOR SETTING

19051-MN0-000

$4.87

9

VALVE ASSY., RADIATOR

19060-MN0-003

Unavailable

10

TANK, RESERVE (NOT AVAILABLE)

19101-MN0-000

Unavailable

11

CAP, RESERVE TANK

19104-MB0-700

$12.16

12

TUBE, RADIATOR RESERVE (NOT AVAILABLE)

19105-MN0-000

Unavailable

13

HOSE, RADIATOR (UPPER) (NOT AVAILABLE)

19107-MN0-000

Unavailable

14

TUBE, RESERVE TANK OVERFLOW

19108-MN0-000

Unavailable

15

COVER, R. RADIATOR

19110-MN0-000

Unavailable

16

COVER, L. RADIATOR

19111-MN0-000

Unavailable

17

RUBBER, RADIATOR SETTING

19113-MB0-000

Unavailable

18

COLLAR, RADIATOR SETTING

19114-MB0-000

Unavailable

19

HOSE, RADIATOR (LOWER) (NOT AVAILABLE)

19115-MN0-000

Unavailable

20

CLAMP, HOSE (24-32MM) This part replaces 19503-ML0-003.

19516-ML7-691

$14.40

20

CLAMP, HOSE (24-32)

19516-ML7-691

$14.40

21

CLAMP, HOSE (22-29MM) This part replaces 19513-MF5-000.

19517-ML7-691

$11.62

21

CLAMP, HOSE (22-29MM) This part replaces 19513-MM4-003.

19517-ML7-691

$11.62

21

CLAMP, HOSE (22-29)

19517-ML7-691

$11.62

22

GUARD, RADIATOR HOSE (UPPER/LOWER) (NOT AVAILABLE)

19551-MN0-000

Unavailable

23

GUARD, RADIATOR HOSE (LOWER)

19552-MN0-000

Unavailable

24

GROMMET A, TUBE This part replaces 36043-657-000.

36037-657-000

$6.16

25

SWITCH ASSY., THERMO This part replaces 37760-MB2-901.

37760-MR1-003

$71.91

25

SWITCH ASSY., THERMO

37760-MR1-003

$71.91

26

LABEL, RESERVE TANK

87507-MB4-670

Unavailable

27

BOLT, RADIATOR SETTING

90111-MN0-000

Unavailable

28

BOLT, FLANGE (6MM)

90111-187-000

$5.59

29

NUT, FLANGE (6MM) This part replaces 90301-428-900.

94050-06070

$1.49

29

NUT, FLANGE (6MM)

94050-06070

$1.49

30

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

31

O-RING (13.5X1.4)

91307-PH7-660

$2.83

31

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

32

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

32

SCREW, PAN (6X10)

93500-06010-0A

$1.49

33

SCREW, PAN (6X10)

93500-06010-0H

$1.49

33

SCREW, PAN (6X10) This part replaces 93500-06010-08.

93500-06010-0H

$1.49

34

SCREW, TAPPING (3X8)

93901-22180

$1.49

35

CLIP, TUBE (B12)

95002-02120

$2.00

36

CLIP, TUBE (C11)

95002-70000

$1.56

37

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

37

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

38

BOLT, FLANGE (6X10) This part replaces 96000-06010-07.

96001-06010-07

$1.62

38

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

39

BOLT, FLANGE (6X45) This part replaces 96000-06045-07.

96001-06045-07

$2.16

39

BOLT, FLANGE (6X45)

96001-06045-07

$2.16
