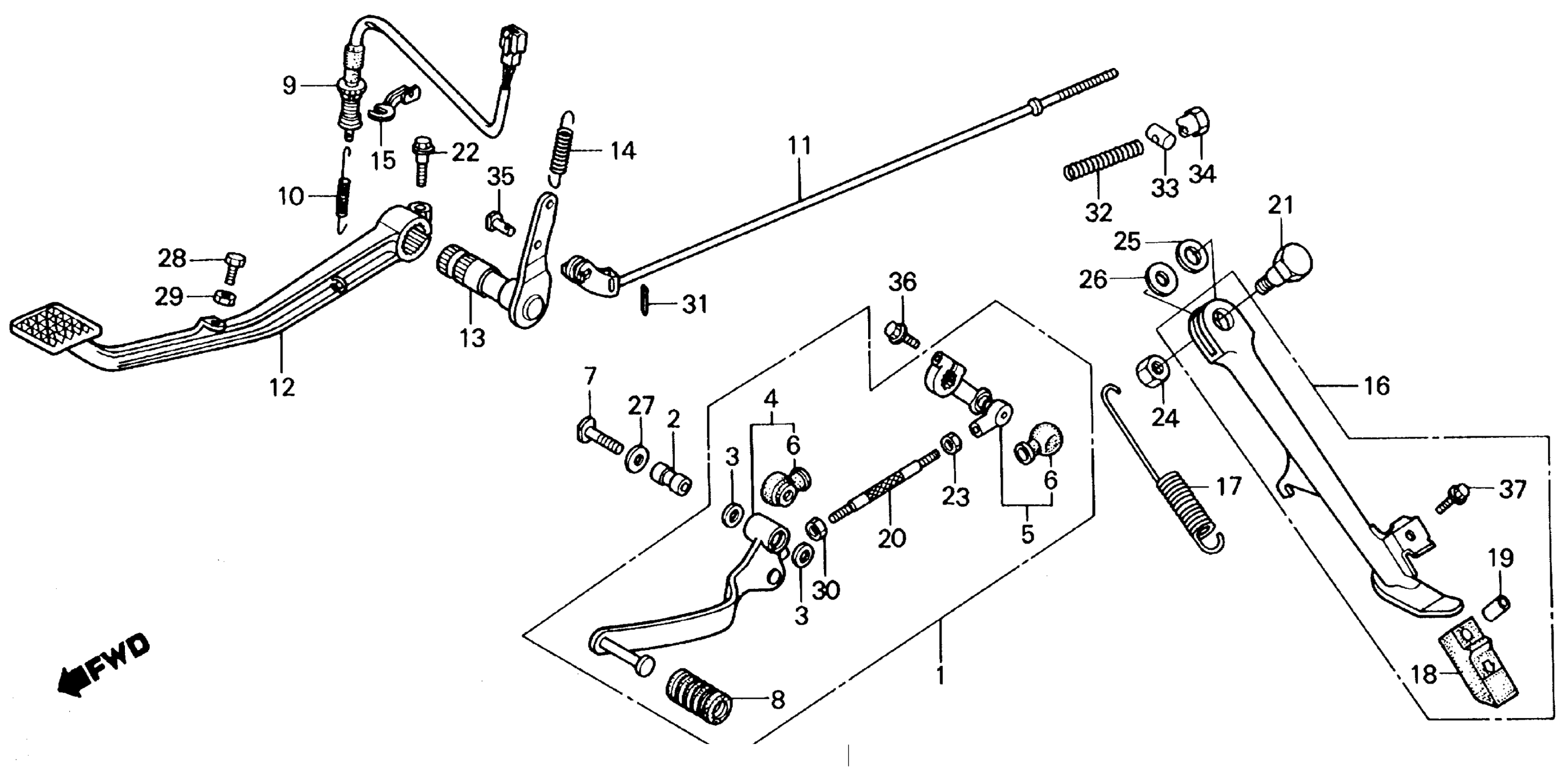

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 PEDAL Diagram

#

Description
Price

1

PEDAL ASSY., CHANGE (NOT AVAILABLE)

24700-MN0-000

Unavailable

2

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MK3-000

$10.67

3

RUBBER, DUST SEAL

24706-MK3-770

$4.48

4

PEDAL, GEARSHIFT

24720-MN0-000

Unavailable

5

ARM, GEARSHIFT

24721-MB1-000

Unavailable

5

ARM, GEARSHIFT This part replaces 24721-MN0-000.

24721-MB1-000

Unavailable

6

COVER, DUST

24724-422-000

$6.68

7

BOLT, CHANGE PEDAL PIVOT

24725-MK3-000

Unavailable

8

RUBBER, CHANGE PEDAL

24781-KR3-770

$3.39

9

SWITCH ASSY., RR. STOP This part replaces 35350-MK3-000.

35350-MK3-405

$18.15

9

SWITCH ASSY., RR. STOP This part replaces 35350-MK3-010.

35350-MK3-405

$18.15

9

SWITCH ASSY., RR. STOP

35350-MK3-405

$18.15

10

SPRING, STOP SWITCH

35357-KE4-730

Unavailable

10

SPRING, STOP SWITCH This part replaces 35357-425-610.

35357-KE4-730

Unavailable

11

ROD, RR. BRAKE (NOT AVAILABLE)

43451-MN0-000

Unavailable

12

PEDAL, RR. BRAKE

46500-MN0-000

Unavailable

13

ARM, MIDDLE

46513-MK3-000

Unavailable

14

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-KJ1-700

Unavailable

15

STAY, STOP SWITCH

50302-MK3-000

Unavailable

16

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-MN2-670

Unavailable

17

SPRING, SIDE STAND

50541-ML7-000

Unavailable

18

RUBBER, STAND

50548-356-700

$10.50

19

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

20

BOLT, TIE ROD

90065-MN0-000

Unavailable

21

BOLT, SIDE STAND PIVOT

90108-MN2-670

Unavailable

22

BOLT, SPECIAL FLANGE (8X30)

90179-422-000

Unavailable

23

NUT, GOVERNOR ARM FIXING

90201-700-000

$1.49

24

NUT, SIDE STAND

90203-MJ4-000

Unavailable

25

WASHER, THRUST (24X13)

90501-MF9-710

Unavailable

26

WASHER, THRUST (24X10)

90502-MF9-710

Unavailable

27

WASHER (8MM)

90514-921-000

$1.49

28

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

29

NUT, HEX. (6MM)

94002-06000-0S

$1.49

30

NUT, HEX. (6MM)

94002-06020-0S

$1.49

31

PIN, COTTER (1.6X12)

94201-16120

$1.49

32

SPRING A, BRAKE ROD

95014-73100

$1.49

33

JOINT, BRAKE ARM

95015-32001

$1.49

34

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

35

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

36

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

36

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

37

BOLT, FLANGE (6X25)

96001-06025-02

$1.49
