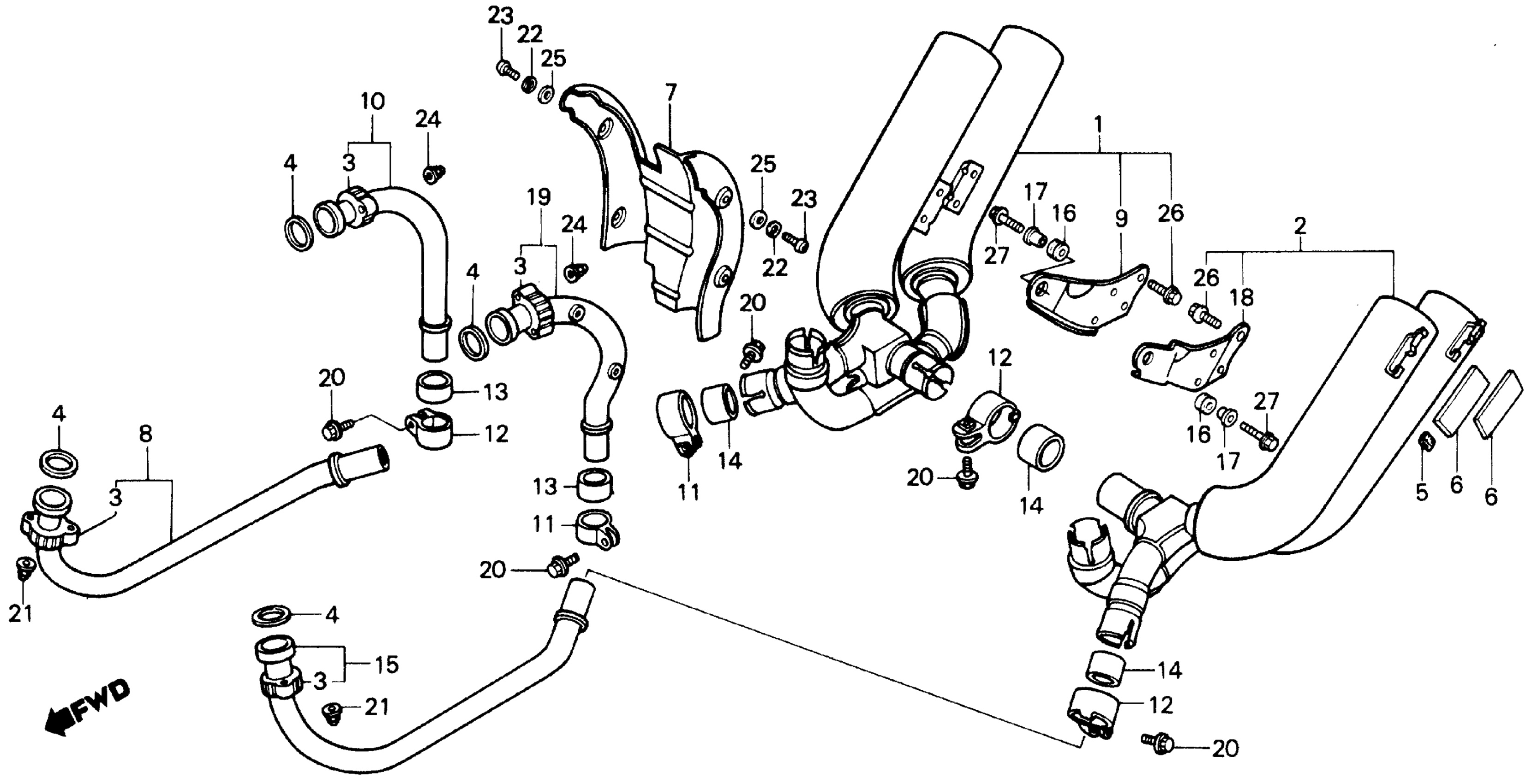

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 MUFFLER Diagram

#

Description
Price

1

MUFFLER ASSY., R.

18100-MN2-670

Unavailable

2

MUFFLER ASSY., L. (NOT AVAILABLE)

18200-MN2-670

Unavailable

3

JOINT, EX. PIPE

18231-MB0-000

Unavailable

4

GASKET, EX. PIPE

18291-MN5-650

$3.77

4

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

5

RUBBER, PROTECTOR

18293-MN0-000

$2.13

6

PROTECTOR, MUFFLER

18315-MN0-000

Unavailable

7

PROTECTOR, RR. EX. PIPE (NOT AVAILABLE)

18316-MN0-000

Unavailable

8

PIPE, R. FR. EX. (NOT AVAILABLE)

18320-MN0-003

Unavailable

9

BRACKET, R. MUFFLER (NOT AVAILABLE)

18365-MN0-000

Unavailable

10

PIPE, R. RR. EX.

18370-MN0-003

Unavailable

11

BAND, R. EX. PIPE

18373-ML4-003

$32.23

12

BAND, L. EX. PIPE

18374-ML4-003

$16.36

13

GASKET, MUFFLER

18391-ML8-000

$9.49

14

GASKET, MUFFLER

18391-ML8-000

$9.49

14

GASKET, MUFFLER This part replaces 18391-110-000.

18391-ML8-000

$9.49

15

PIPE, L. FR. EX. (NOT AVAILABLE)

18420-MN0-003

Unavailable

16

RUBBER, MUFFLER MOUNT

18421-MK3-000

Unavailable

17

COLLAR, MUFFLER MOUNTING This part replaces 18422-MK3-000.

18422-MN5-000

$9.05

18

BRACKET, L. MUFFLER (NOT AVAILABLE)

18465-MN0-000

Unavailable

19

PIPE, L. RR. EX.

18470-MN0-003

Unavailable

20

BOLT, FLANGE (8X35)

90161-ML7-000

$3.67

21

NUT, CAP (6MM)

90304-438-000

$7.14

22

WASHER, SPRING (6MM)

90401-MB2-000

Unavailable

23

SCREW, PAN (6X8)

93500-06008-0B

Unavailable

24

NUT, FLANGE (6MM)

94050-06000

$1.49

25

WASHER, PLAIN (6MM)

94101-06200

$1.49

26

BOLT, FLANGE (8X14) This part replaces 95801-08014-08.

95701-08014-08

$1.80

27

BOLT, FLANGE (8X45)

95801-08045-08

$1.49
