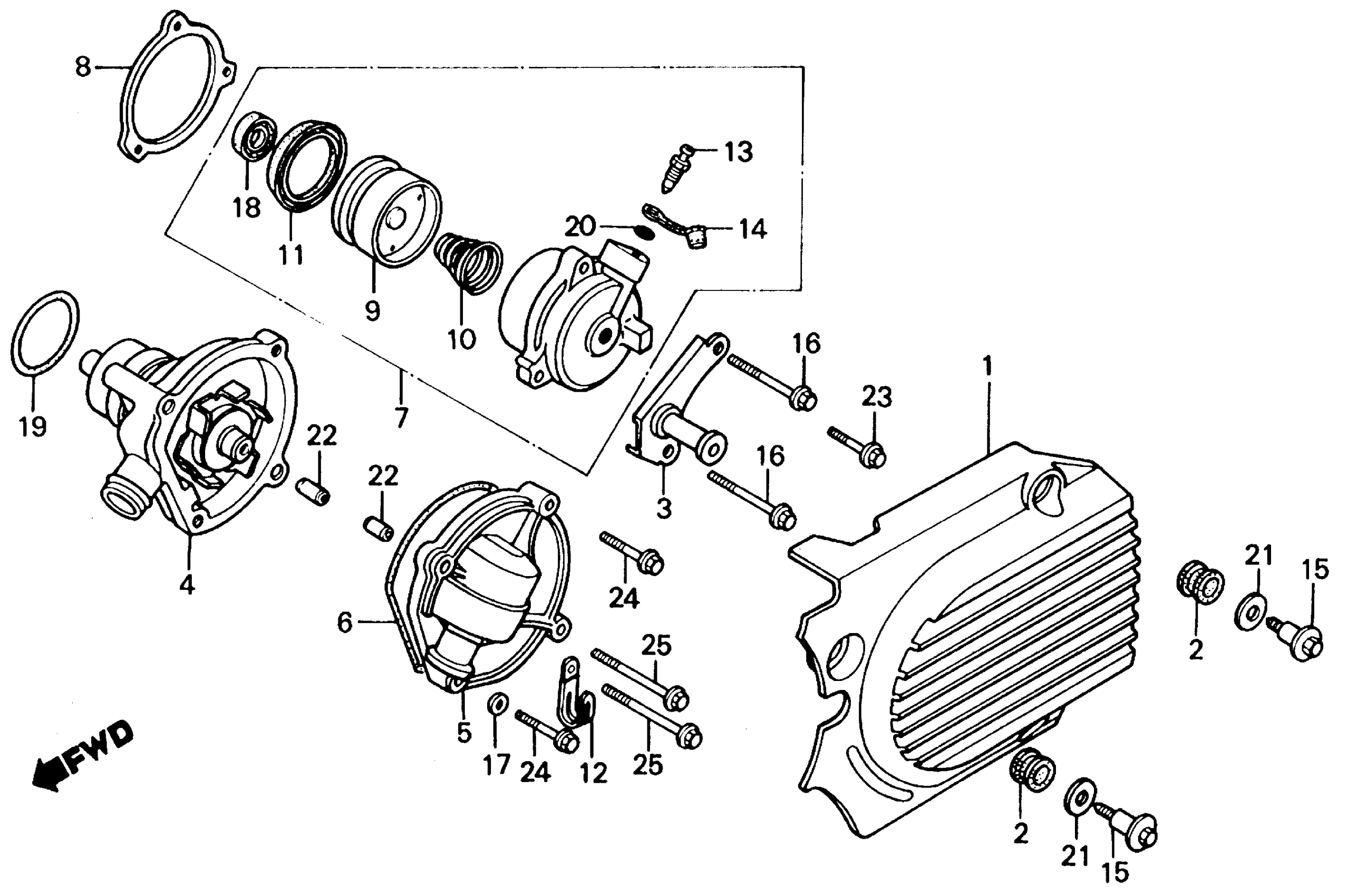

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, RR. (NOT AVAILABLE)

11341-MK3-000

Unavailable

2

GROMMET, RR. COVER

11343-MN0-000

Unavailable

3

STAY B, RR. COVER (NOT AVAILABLE)

11370-MK3-000

Unavailable

4

WATER PUMP

19200-MB4-010

Unavailable

5

COVER, WATER PUMP (NOT AVAILABLE)

19220-MB4-000

Unavailable

6

GASKET, WATER PUMP COVER

19226-MB0-000

Unavailable

7

CYLINDER ASSY., SLAVE (NOT AVAILABLE)

22860-MN2-670

Unavailable

8

INSULATOR, CLUTCH SLAVE

22862-MB0-307

$5.76

8

INSULATOR, CLUTCH SLAVE This part replaces 22862-MB0-770.

22862-MB0-307

$5.76

9

PISTON, SLAVE CYLINDER

22863-MB0-003

$32.02

10

SPRING, SLAVE CYLINDER

22864-MB0-003

$6.25

11

CUP, PISTON

22865-MB0-003

$13.86

12

CLAMP, STARTER CABLE

31211-MB0-000

Unavailable

13

SCREW, BLEEDER

43352-MG9-006

$5.44

14

CAP, BLEEDER

43353-461-771

$5.05

15

BOLT, SPECIAL (6MM) (NOT AVAILABLE)

90018-MK3-000

Unavailable

16

BOLT, FLANGE (6X55)

90051-MB0-000

Unavailable

17

WASHER, THRUST (11MM)

90425-300-000

$2.66

18

OIL SEAL (8X18X5) (NISSIN)

91209-MB0-003

$4.06

19

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

20

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.15

21

WASHER, FLAT (10MM)

94102-10200

Unavailable

22

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

23

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

23

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

24

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

24

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

25

BOLT, FLANGE (6X70)

96001-06070-00

$1.95
