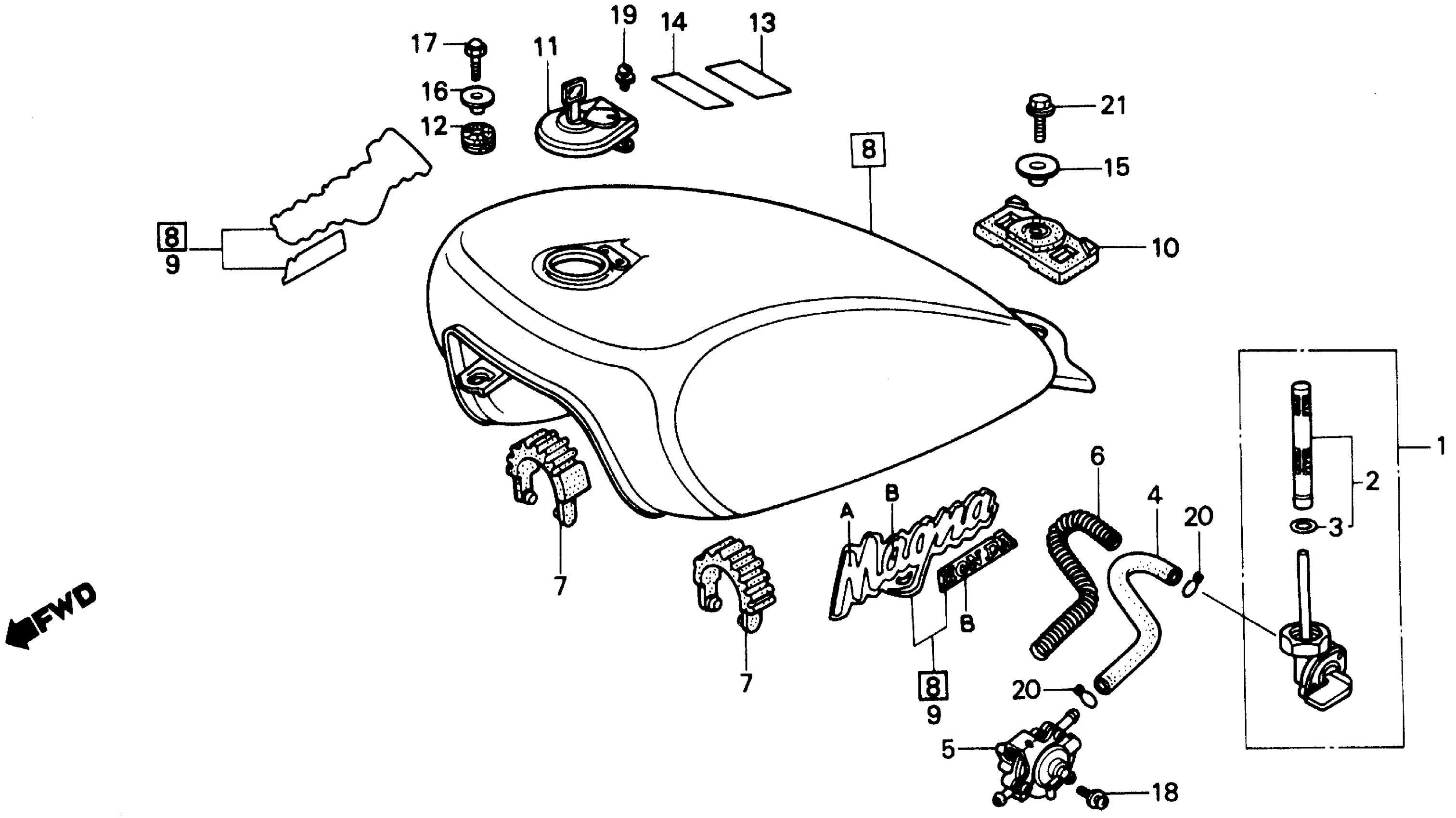

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 FUEL TANK Diagram

PETCOCK ASSY.

16950-MA4-671

Unavailable

PETCOCK ASSY. This part replaces 16950-MN0-003.

16950-MA4-671

Unavailable

SCREEN SET, FUEL STRAINER

16952-MA4-671

Unavailable

O-RING (9X1.3)

16958-397-771

$5.30

TUBE, FUEL (NOT AVAILABLE)

16959-MN0-000

Unavailable

PETCOCK ASSY., AUTO (NOT AVAILABLE)

16970-MN0-003

Unavailable

SPRING A, PURGE TUBE COVER (NOT AVAILABLE)

17415-MK3-780

Unavailable

RUBBER, TANK SETTING (NOT AVAILABLE)

17504-MN0-000

Unavailable

TANK SET, FUEL *NH1Z* (WL) (BLACK-Z) (NOT AVAILABLE)

17520-MN2-670ZA

Unavailable

TANK SET, FUEL *R107CU* (WL) (CANDY BOURGOGNE RED-U) (NOT AVAILABLE)

17520-MN2-670ZB

Unavailable

MARK, FUEL TANK (TYPE1) (NOT AVAILABLE)

17531-MN2-670ZA

Unavailable

MARK, FUEL TANK (TYPE2) (NOT AVAILABLE)

17531-MN2-670ZB

Unavailable

RUBBER, RR. FUEL TANK

17613-MA5-771

$10.12

CAP, FUEL FILLER This part replaces 17620-MB1-033.

17620-MB1-043

$129.39

RUBBER, TAILLIGHT SETTING

84703-425-000

$4.72

MARK, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-MN0-300

Unavailable

LABEL, DRIVE CAUTION *A73* (TYPEG) (GOLD)

87560-ME9-670ZA

$5.22

COLLAR, FUEL TANK SETTING

90324-MB6-000

Unavailable

COLLAR (6.2X12)

90501-425-000

$4.69

BOLT, CAP (6X25)

92501-06025-0B

Unavailable

SCREW-WASHER (5X12)

93891-05012-08

$1.49

SCREW-WASHER (4X6)

93892-04006-00

$1.49

CLIP, TUBE (B10)

95002-02100

$1.90

BOLT, FLANGE (8X22) This part replaces 95700-08022-00.

95701-08022-00

$2.16

BOLT, FLANGE (8X22)

95701-08022-00

$2.16
