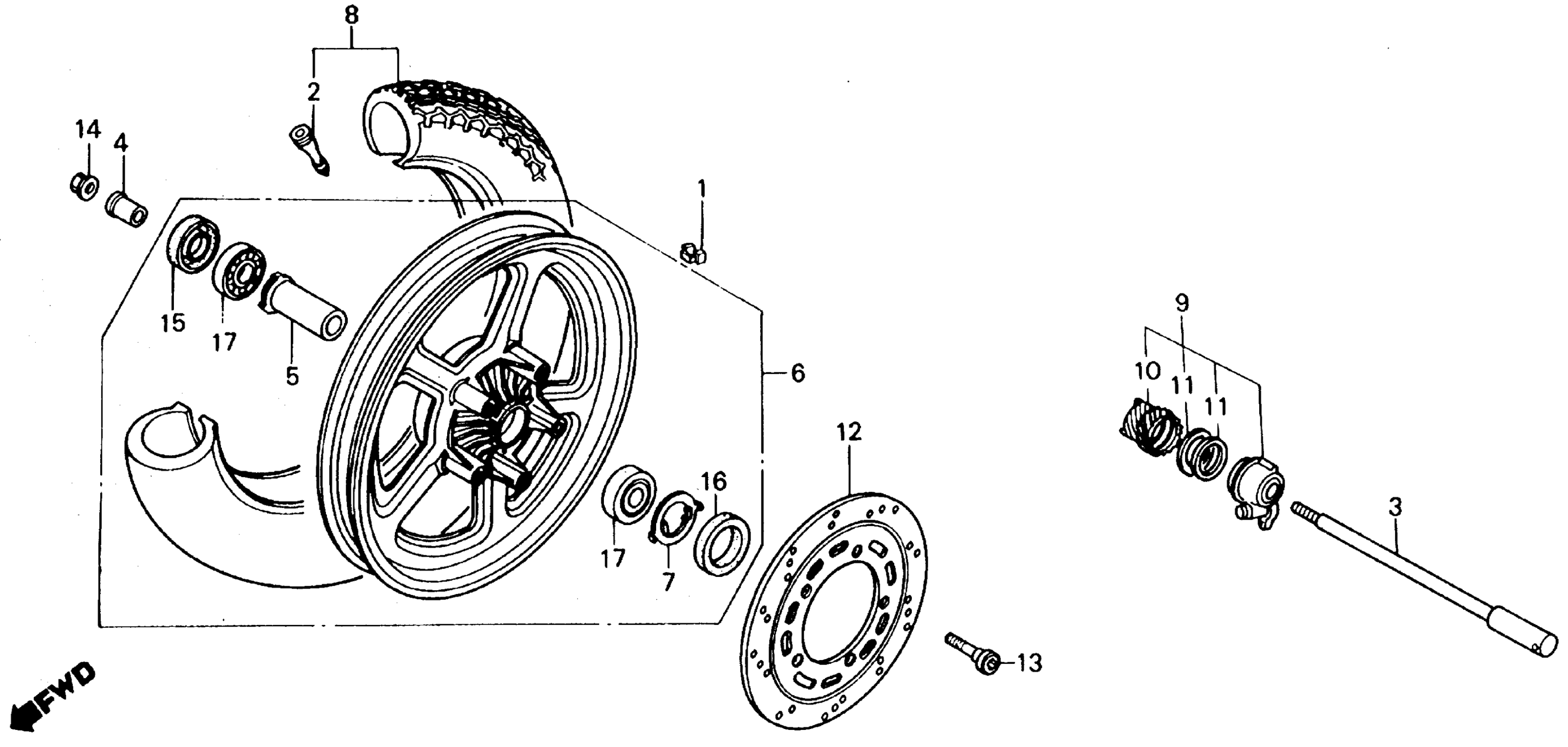

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 FRONT WHEEL Diagram

#

Description
Price

1

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

1

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

1

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

1

WEIGHT, BALANCE (30)

42706-MCF-D60

$14.48

2

VALVE, RIM (BS)

42753-GC7-821

Unavailable

2

VALVE, RIM This part replaces 42753-GC7-822.

42753-VM0-003

$10.30

2

VALVE, RIM This part replaces 42753-GC7-823.

42753-VM0-003

$10.30

2

VALVE, RIM

42753-VM0-003

$10.30

3

AXLE, FR. WHEEL

44301-MN0-000

Unavailable

4

COLLAR, FR. WHEEL SIDE

44311-MN0-000

Unavailable

5

COLLAR, FR. AXLE DISTANCE

44620-MB0-000

Unavailable

6

WHEEL SET, FR.

44650-MN0-305

Unavailable

7

RETAINER, GEAR BOX

44680-410-000

$5.80

8

TIRE ASSY., FR. (100/90H19) (DUNLOP) This part replaces 44710-MN0-003.

44710-MN0-004

Unavailable

8

TIRE ASSY., FR. (100/90H19) (DUNLOP)

44710-MN0-004

Unavailable

9

BOX ASSY., SPEEDOMETER GEAR

44800-MB0-013

$115.81

10

GEAR, SPEEDOMETER

44806-MB0-003

$38.85

11

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

12

DISK, FR. BRAKE (NOT AVAILABLE)

45251-MN0-000

Unavailable

13

BOLT, FR. DISK (8X24)

90105-KR3-000

$6.07

14

NUT, U (14MM)

90305-GE8-003

$3.86

15

DUST SEAL (22X42X7)

91252-MC7-003

$7.46

16

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

16

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

16

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

17

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
