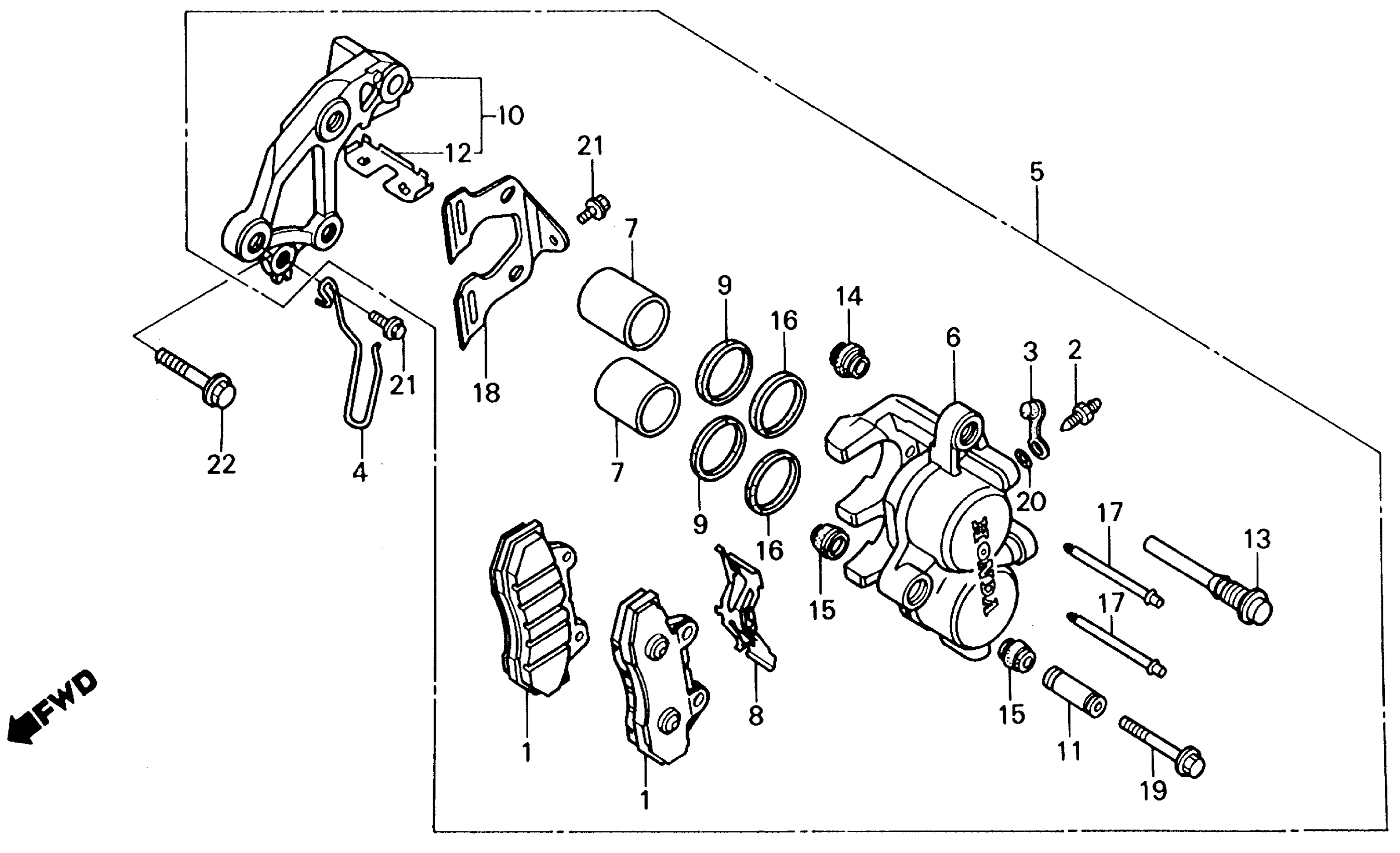

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

BRAKE PAD KIT

431A0-MB4-305

$37.81

1

PAD, RR. (ASK) This part replaces 43105-MB4-007.

43105-MB4-017

$24.10

1

PAD, RR. (ASK)

43105-MB4-017

$24.10

1

PAD, RR. This part replaces 43105-MB6-008.

43105-MB6-018

Unavailable

1

PAD, RR.

43105-MB6-018

Unavailable

2

SCREW, BLEEDER

43352-MG9-006

$5.44

3

CAP, BLEEDER This part replaces 43353-MG9-006.

43353-461-771

$5.05

3

CAP, BLEEDER This part replaces 43353-443-761.

43353-461-771

$5.05

3

CAP, BLEEDER

43353-461-771

$5.05

4

CLAMP, SPEEDOMETER CABLE

44832-ME2-000

$9.67

5

CALIPER, L. FR. This part replaces 45100-MN0-017.

45100-MN0-027

Unavailable

5

CALIPER ASSY., L. FR. (NISSIN)

45100-MN0-018

Unavailable

6

CALIPER, L. (NISSIN) (NOT AVAILABLE)

45101-MN0-016

Unavailable

7

PISTON

45107-MA3-006

$50.26

8

SPRING, PAD

45108-MA3-006

$6.28

9

DUST SEAL

45109-166-006

$6.41

10

BRACKET, L. FR. FORK (NISSIN) (NOT AVAILABLE)

45110-MN0-006

Unavailable

11

SLEEVE

45111-MA3-006

$13.38

12

RETAINER, BRACKET

45112-445-631

$8.98

13

PIN, BOLT

45131-MA3-006

$17.59

14

BOOT B

45133-MA3-006

$5.46

15

BOOT, PIN

45133-166-016

$3.85

16

SEAL, PISTON

45209-166-006

$8.64

17

PIN, HANGER

45215-MA3-006

$12.77

18

PLATE

45217-MJ0-006

Unavailable

19

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

20

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.15

21

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

21

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

22

BOLT, FLANGE (10X40) This part replaces 95800-10040-02.

95801-10040-02

$2.89

22

BOLT, FLANGE (10X40)

95801-10040-02

$2.89
