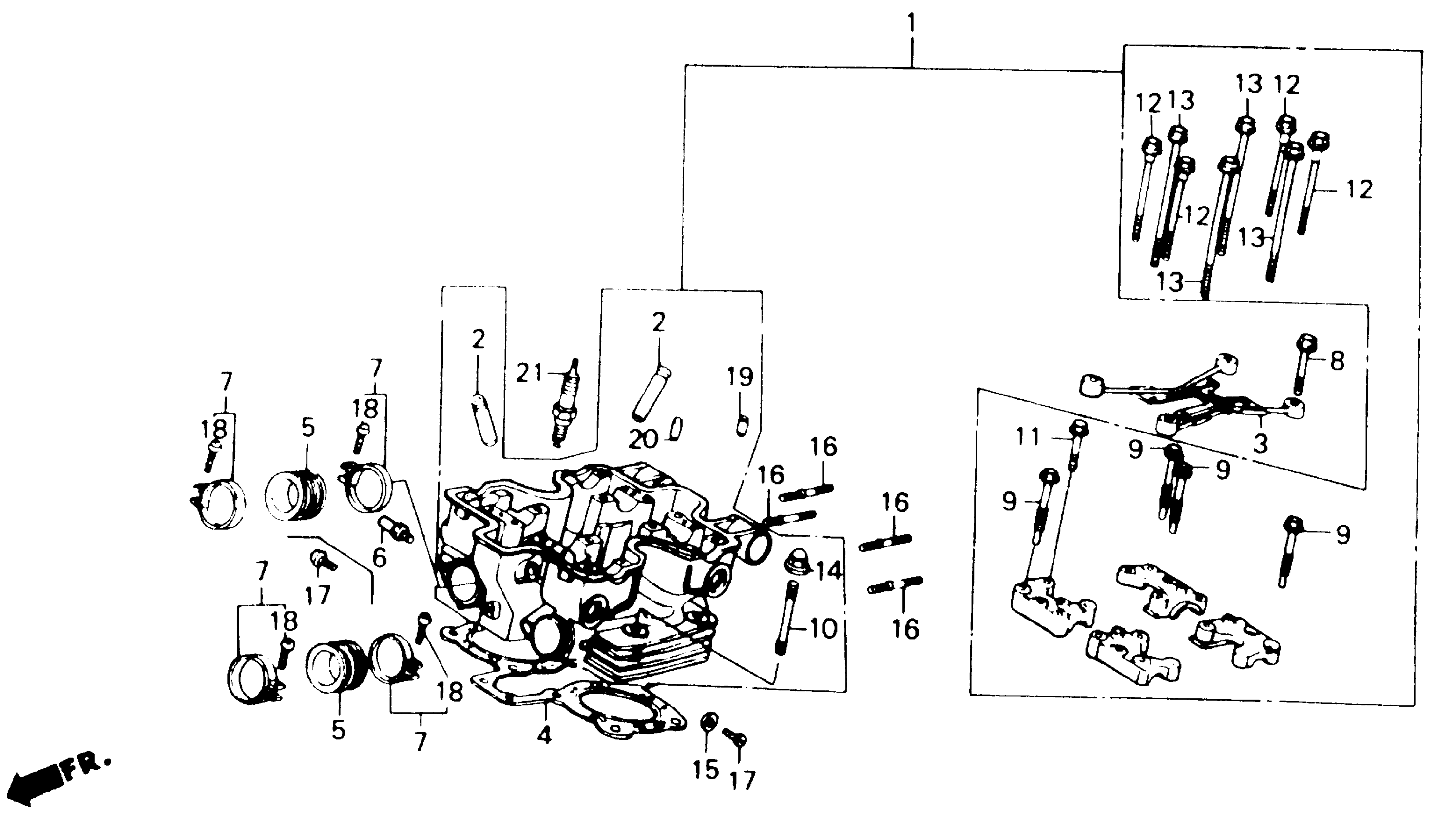

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 CYLINDER HEAD (RR.) Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., RR.

12020-MN0-000

Unavailable

2

GUIDE, VALVE (OS) This part replaces 12204-MB0-405.

12204-MS2-305

Unavailable

2

GUIDE, VALVE (OS)

12204-MS2-305

Unavailable

3

PIPE A, OIL PASSAGE (NOT AVAILABLE)

12230-MB0-010

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-MN0-000.

12251-MN0-505

Unavailable

4

GASKET, CYLINDER HEAD

12251-MN0-505

Unavailable

5

INSULATOR, CARBURETOR

16211-MB0-000

$33.34

7

BAND, INSULATOR This part replaces 16219-MB0-770.

16223-KS5-000

$14.20

7

BAND, INSULATOR

16223-KS5-000

$14.20

8

BOLT, FLANGE (6X52) This part replaces 90001-MB0-000.

90009-HA0-000

$4.24

9

BOLT, FLANGE (6X62)

90003-MB6-680

Unavailable

10

BOLT, STUD (9X99)

90005-MB6-680

Unavailable

11

BOLT, FLANGE (6X40)

90008-GE0-710

Unavailable

12

BOLT, UBS (8X151)

90012-KE8-000

Unavailable

13

BOLT, UBS (9X175)

90012-MB6-003

Unavailable

14

NUT, CAP (9MM)

90232-MB6-680

$3.89

15

WASHER, SEALING (5MM)

90452-323-000

$1.59

16

BOLT 2, STUD (6X32)

92900-06032-0E

$2.45

17

SCREW, PAN (5X8)

93500-05008-0A

$1.49

18

SCREW, PAN (5X28)

93500-05028-0G

$1.49

19

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

20

PIN A, DOWEL (12X20)

94301-12200

$2.29

21

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

21

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

21

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

21

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

21

SPARK PLUG (DPR9EA-9) (NGK)

98069-59916

$2.62

21

SPARK PLUG (X27EPR-U9) (DENSO)

98069-59926

$2.54
