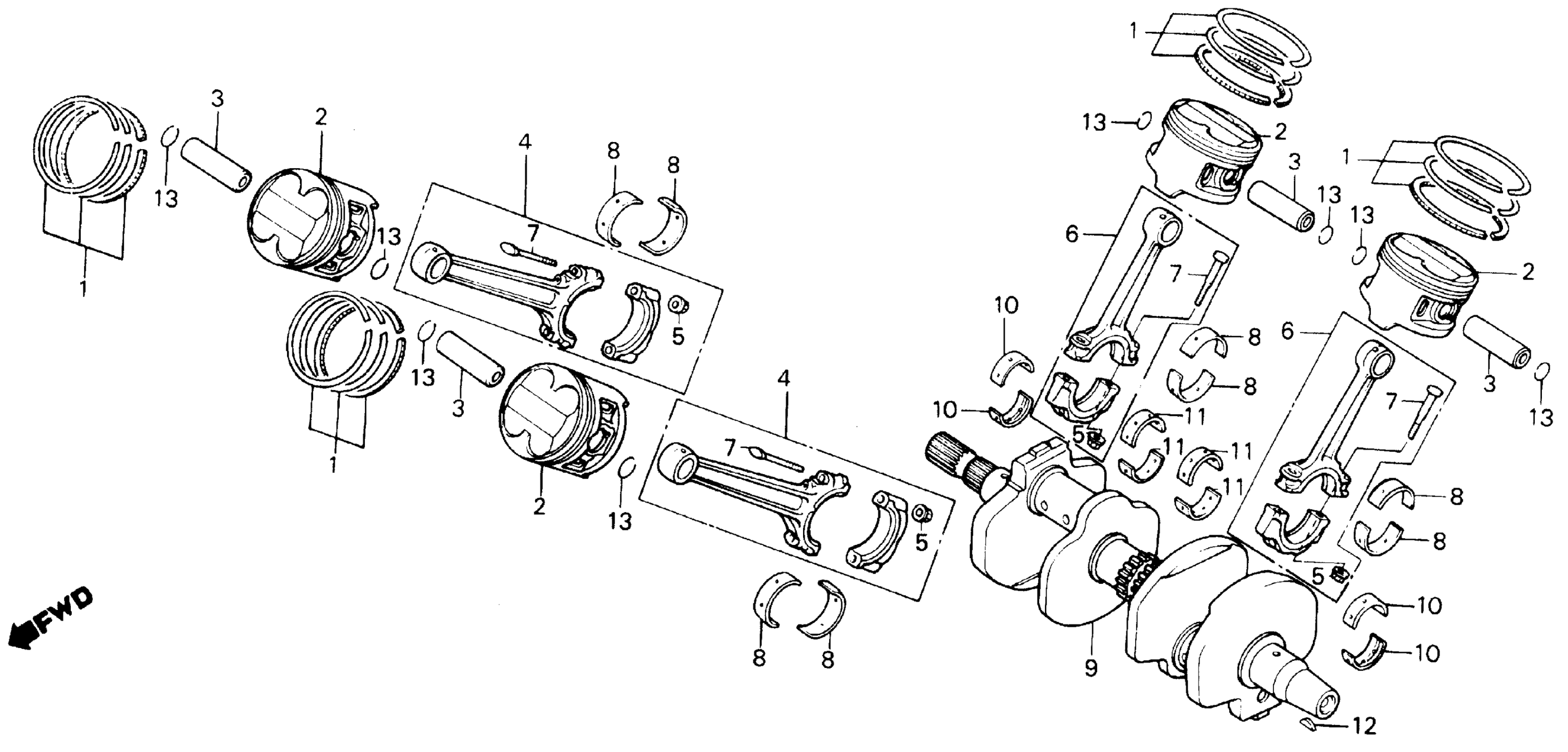

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 CRANKSHAFT Diagram

#

Description
Price

1

RING SET, PISTON (STD) (NIPPON) This part replaces 13011-MB0-014.

13011-MN0-305

Unavailable

1

RING SET, PISTON (STD) (NIPPON)

13011-MN0-305

Unavailable

1

RING SET, PISTON (STD) (NIPPON) This part replaces 13011-MN0-306.

13011-MN0-305

Unavailable

1

RING SET, PISTON (OS 0.25) (NIPPON)

13021-MN0-305

Unavailable

1

RING SET, PISTON (OS 0.25) (TEIKOKU)

13021-MN0-306

Unavailable

1

RING SET, PISTON (OS 0.50) (NIPPON) This part replaces 13031-MB0-014.

13031-MN0-305

Unavailable

1

RING SET, PISTON (OS 0.50) (NIPPON)

13031-MN0-305

Unavailable

1

RING SET, PISTON (OS 0.50) (NIPPON) This part replaces 13031-MN0-306.

13031-MN0-305

Unavailable

1

RING SET, PISTON (0.75) (NIPPON)

13041-MN0-305

Unavailable

1

RING SET, PISTON (0.75) (TEIKOKU)

13041-MN0-306

Unavailable

1

RING SET, PISTON (1.00) (NIPPON)

13051-MN0-305

Unavailable

1

RING SET, PISTON (1.00) (TEIKOKU)

13051-MN0-306

Unavailable

2

PISTON (STD) This part replaces 13101-MN2-010.

13101-MN2-680

Unavailable

2

PISTON (STD)

13101-MN2-680

Unavailable

2

PISTON (OS 0.25)

13102-MN2-000

Unavailable

2

PISTON (OS) (0.50) This part replaces 13103-MN2-000.

13103-MN2-680

Unavailable

2

PISTON (0.75)

13104-MN2-000

Unavailable

2

PISTON (1.00)

13105-MN2-000

Unavailable

3

PIN, PISTON This part replaces 13111-MB0-000.

13111-MT3-000

$11.04

3

PIN, PISTON

13111-MT3-000

$11.04

4

ROD ASSY. C, CONNECTING This part replaces 13201-MB0-010.

13203-MB0-010

Unavailable

4

ROD ASSY., CONNECTING This part replaces 13202-MB0-010.

13203-MB0-405

Unavailable

4

ROD ASSY. C, CONNECTING

13203-MB0-010

Unavailable

4

ROD ASSY., CONNECTING

13203-MB0-405

Unavailable

4

ROD ASSY., CONNECTING This part replaces 13204-MB0-010.

13203-MB0-405

Unavailable

4

ROD ASSY., CONNECTING This part replaces 13205-MB0-010.

13203-MB0-405

Unavailable

5

NUT, CONNECTING ROD

13205-634-010

$5.26

6

ROD ASSY. E, CONNECTING This part replaces 13206-MB0-010.

13208-MB0-405

Unavailable

6

ROD ASSY. E, CONNECTING This part replaces 13207-MB0-010.

13208-MB0-405

Unavailable

6

ROD ASSY. E, CONNECTING This part replaces 13208-MB0-010.

13208-MB0-405

Unavailable

6

ROD ASSY. E, CONNECTING

13208-MB0-405

Unavailable

6

ROD ASSY. E, CONNECTING This part replaces 13209-MB0-010.

13208-MB0-405

Unavailable

6

ROD ASSY. E, CONNECTING This part replaces 13210-MB0-010.

13208-MB0-405

Unavailable

7

BOLT, CONNECTING ROD (TOKAI TRW)

13204-689-004

Unavailable

7

BOLT, CONNECTING ROD (TOKAI TRW) This part replaces 13213-422-004.

13204-689-004

Unavailable

8

BEARING A, CONNECTING ROD (BLUE) This part replaces 13224-MB0-003.

13224-MB0-892

Unavailable

8

BEARING A, CONNECTING ROD (BLUE) This part replaces 13224-MB0-305.

13224-MB0-892

Unavailable

8

BEARING A, CONNECTING ROD (BLUE) This part replaces 13224-MB0-891.

13224-MB0-892

Unavailable

8

BEARING A, CONNECTING ROD (BLUE)

13224-MB0-892

Unavailable

8

BEARING B, CONNECTING ROD (BLACK) This part replaces 13225-MB0-003.

13225-MB0-892

Unavailable

8

BEARING B, CONNECTING ROD (BLACK)

13225-MB0-892

Unavailable

8

BEARING C, CONNECTING ROD (BROWN) This part replaces 13226-MB0-003.

13226-MB0-892

Unavailable

8

BEARING C, CONNECTING ROD (BROWN) This part replaces 13226-MB0-891.

13226-MB0-892

Unavailable

8

BEARING C, CONNECTING ROD (BROWN)

13226-MB0-892

Unavailable

8

BEARING D, CONNECTING ROD (GREEN) This part replaces 13227-MB0-003.

13227-MB0-892

Unavailable

8

BEARING D, CONNECTING ROD (GREEN) This part replaces 13227-MB0-891.

13227-MB0-892

Unavailable

8

BEARING D, CONNECTING ROD (GREEN)

13227-MB0-892

Unavailable

8

BEARING E, CONNECTING ROD (YELLOW) This part replaces 13228-MB0-003.

13228-MB0-892

Unavailable

8

BEARING E, CONNECTING ROD (YELLOW) This part replaces 13228-MB0-891.

13228-MB0-892

Unavailable

8

BEARING E, CONNECTING ROD (YELLOW)

13228-MB0-892

Unavailable

9

CRANKSHAFT

13300-MB0-040

Unavailable

10

BEARING A, CRANKSHAFT (BLUE)

13314-MB0-013

Unavailable

10

BEARING B, CRANKSHAFT (BLACK)

13315-MB0-013

Unavailable

10

BEARING C, CRANKSHAFT (BROWN)

13316-MB0-013

Unavailable

10

BEARING D, CRANKSHAFT (GREEN)

13317-MB0-013

$11.84

10

BEARING E, CRANKSHAFT (YELLOW)

13318-MB0-013

Unavailable

11

BEARING A, CRANKSHAFT (BLUE) (NOT AVAILABLE)

13324-MB0-891

Unavailable

11

BEARING B, CRANKSHAFT (BLACK) (NOT AVAILABLE)

13325-MB0-891

Unavailable

11

BEARING C, CRANKSHAFT (BROWN) (NOT AVAILABLE)

13326-MB0-891

Unavailable

11

BEARING D, CRANKSHAFT (GREEN)

13327-MB0-891

Unavailable

11

BEARING E, CRANKSHAFT (YELLOW) (NOT AVAILABLE)

13328-MB0-891

Unavailable

12

KEY, WOODRUFF

90741-413-000

$2.56

13

CLIP, PISTON PIN (18MM)

94601-18000

$1.49
