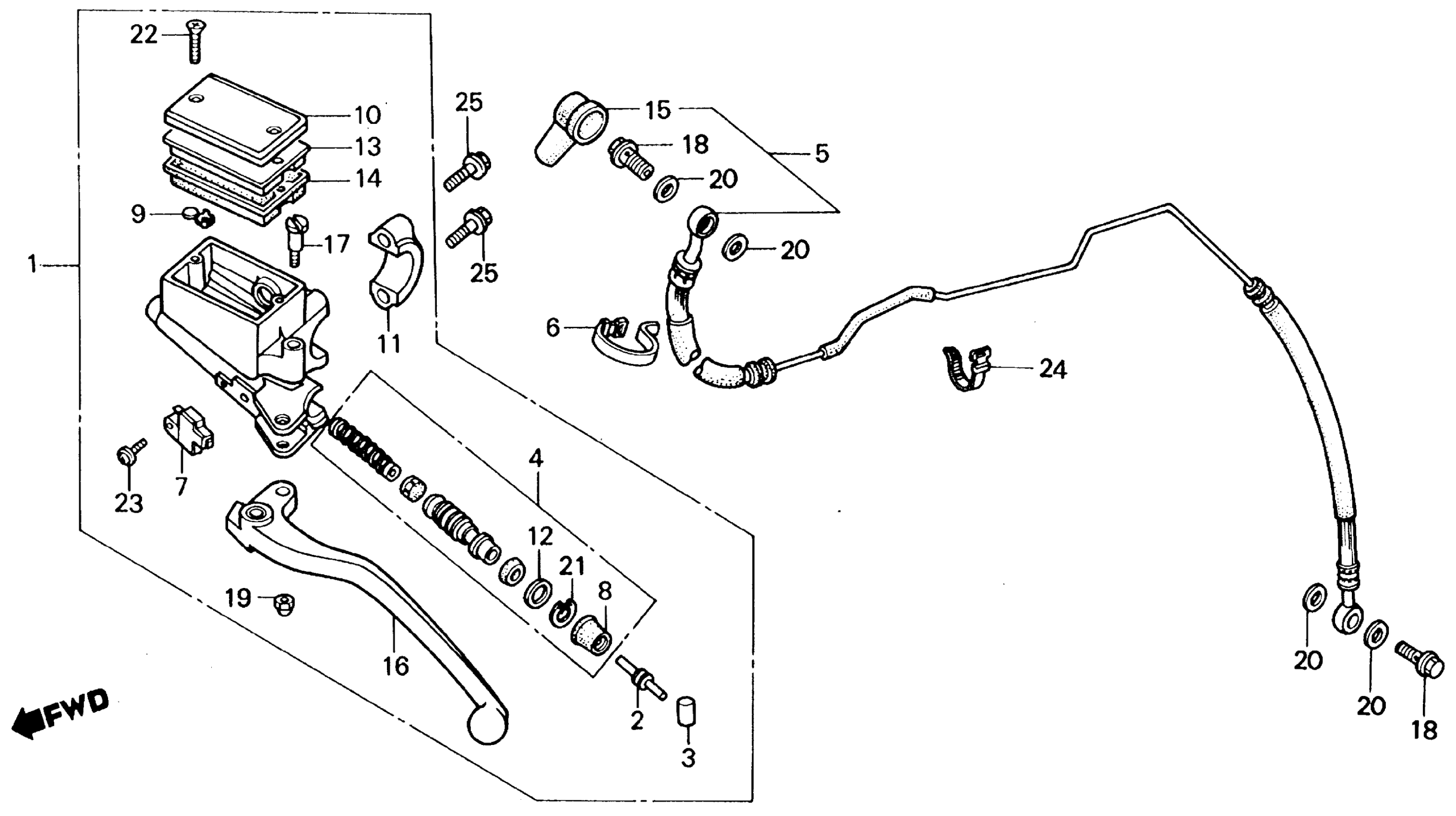

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY., CLUTCH (NOT AVAILABLE)

22880-MN2-671

Unavailable

2

ROD, PUSH

22884-MB0-006

$18.97

3

BUSH

22885-MB0-006

$11.88

4

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$68.24

5

HOSE ASSY., CLUTCH (NOT AVAILABLE)

22900-MN2-670

Unavailable

6

BAND B1, CABLE

32161-404-000

$2.16

7

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.71

8

BOOT

45504-410-003

$11.17

9

PROTECTOR

45512-MA6-006

$4.09

10

CAP

45513-ML7-601

Unavailable

11

HOLDER, MASTER CYLINDER

45517-KR3-901

$19.32

12

PLATE, STOPPER

45518-MB0-006

$1.79

13

PLATE, DIAPHRAGM

45518-MB4-671

$11.13

14

DIAPHRAGM

45520-MA5-672

$16.64

15

BOOT, MASTER CYLINDER

45522-422-000

$7.99

16

LEVER, L. HANDLE This part replaces 53178-MJ0-921.

53178-MM5-006

$20.11

16

LEVER, L. HANDLE

53178-MM5-006

$20.11

17

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

18

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$10.11

18

BOLT, OIL (10X22)

90145-KM3-751

$10.11

19

NUT, CAP (6MM)

90201-415-000

$1.99

20

WASHER, OIL BOLT

90545-300-000

$6.56

21

CIRCLIP (INNER) (18MM)

90651-377-003

$1.79

22

SCREW, FLAT (4X12)

93600-04012-0G

$0.84

22

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.84

23

SCREW-WASHER (4X12)

93893-04012-07

$1.24

23

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

24

BAND B3, CABLE HARNESS

95014-62300

$2.07

25

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable
