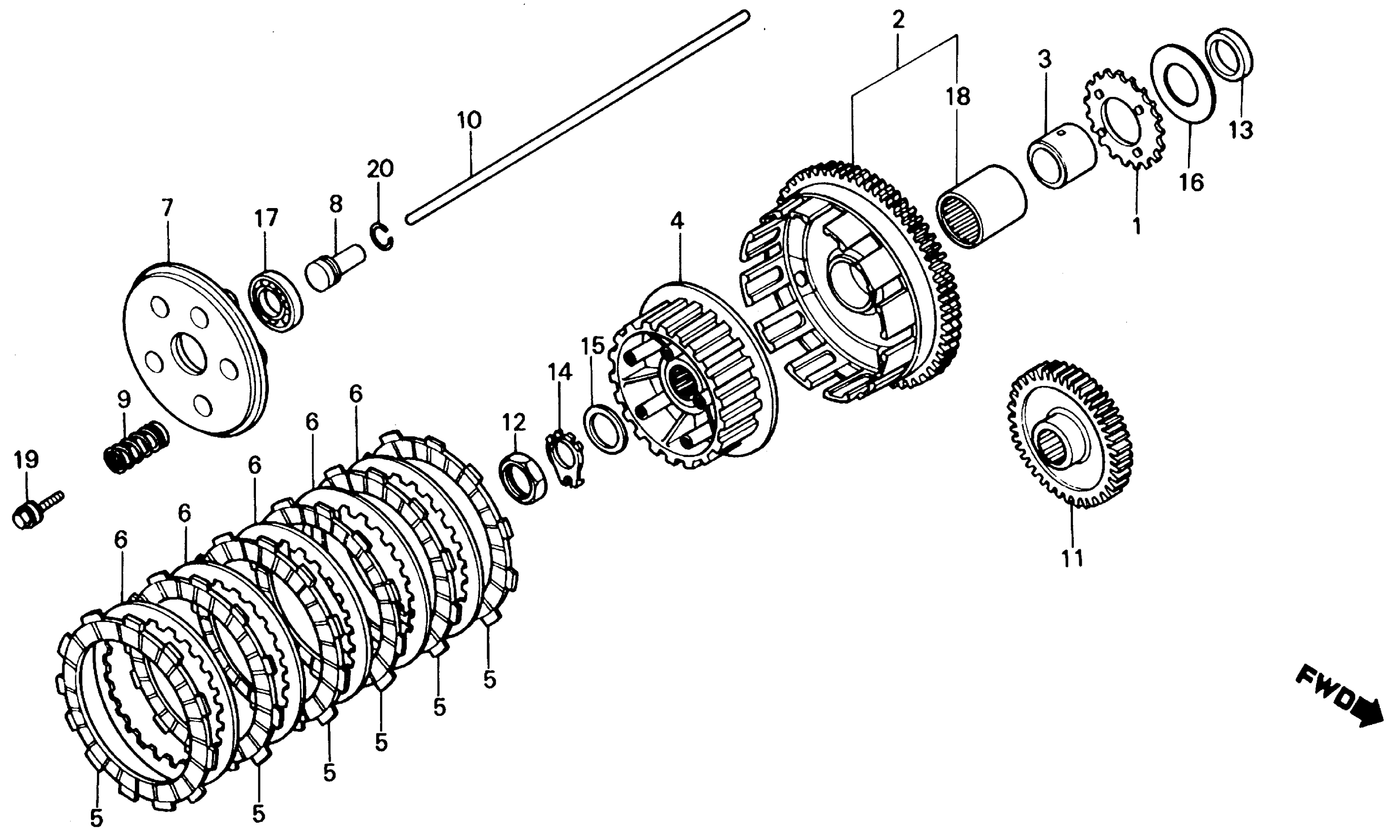

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (26T) (NOT AVAILABLE)

15131-MB0-000

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE)

22100-MN2-000

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-MB0-000

$33.77

4

CENTER, CLUTCH

22120-MN0-000

Unavailable

5

DISK, CLUTCH FRICTION This part replaces 22201-MB0-003.

22201-MM5-000

$28.39

5

DISK, CLUTCH FRICTION

22201-MM5-000

$28.39

6

PLATE, CLUTCH

22321-MG8-000

$15.44

6

PLATE, CLUTCH This part replaces 22321-283-000.

22321-MG8-000

$15.44

7

PLATE, CLUTCH PRESSURE

22350-MK3-770

Unavailable

8

PIECE, CLUTCH JOINT

22366-KE8-000

Unavailable

9

SPRING, CLUTCH

22401-MB0-000

$5.40

10

ROD, CLUTCH LIFTER

22850-MB0-000

Unavailable

11

GEAR, PRIMARY DRIVE (38T)

23103-MB0-771

Unavailable

12

NUT, LOCK (22MM)

90201-MB0-770

Unavailable

13

COLLAR (25.2X7) (NOT AVAILABLE)

90203-MB0-000

Unavailable

14

WASHER, LOCK (22MM)

90431-MK3-771

Unavailable

15

WASHER, THRUST (22MM) (C)

90458-425-000

Unavailable

16

WASHER, THRUST (25MM)

90459-MB0-000

Unavailable

17

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

18

BEARING, NEEDLE (35X42X30) (TOYO)

91024-MB0-003

$86.11

18

BEARING, NEEDLE (35X42X30) (TOYO) This part replaces 91024-MB0-004.

91024-MB0-003

$86.11

19

BOLT-WASHER (6X20)

93404-06020-08

$1.62

20

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
