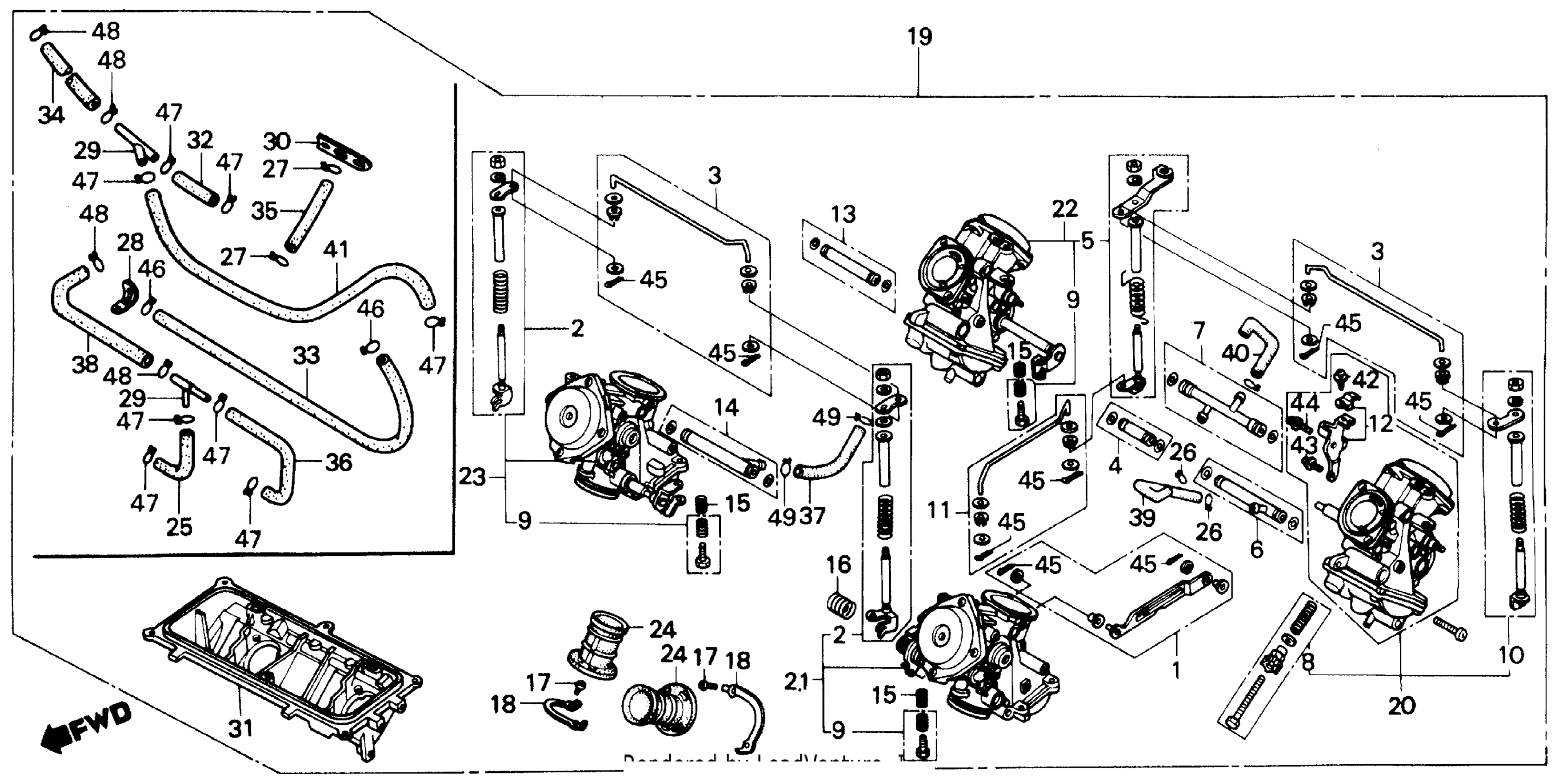

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 CARBURETOR (ASSY.) Diagram

#

Description
Price

1

LEVER SET A, LINK (NOT AVAILABLE)

16017-MB0-672

Unavailable

2

LINK A SET, STARTER

16018-MK3-771

Unavailable

3

ROD SET A, STARTER LINK (NOT AVAILABLE)

16019-MB0-671

Unavailable

4

JOINT SET C, FUEL

16022-MB1-771

Unavailable

5

LINK B SET, STARTER

16025-MK3-771

Unavailable

6

JOINT SET A, FUEL

16026-MB0-671

$52.80

7

JOINT SET E, FUEL

16027-MB2-004

Unavailable

8

SCREW SET B

16028-MK3-781

Unavailable

9

SCREW SET C

16029-MB0-671

Unavailable

10

LINK C SET, STARTER

16031-MK3-771

Unavailable

11

ROD SET B, STARTER LINK (NOT AVAILABLE)

16032-MB0-671

Unavailable

12

PLATE SET, STAY

16035-MB0-671

Unavailable

13

JOINT SET D, FUEL

16042-MB1-771

Unavailable

14

JOINT SET B, FUEL This part replaces 16047-MB0-671.

16047-MB0-771

Unavailable

14

JOINT SET B, FUEL

16047-MB0-771

Unavailable

15

SPRING

16052-MB0-671

$6.23

16

SPRING

16053-MB0-671

$10.30

17

SCREW, PAN

16080-MB0-671

$2.16

18

WASHER, TONGUED

16090-MK3-004

Unavailable

19

CARBURETOR ASSY. This part replaces 16100-MN2-672.

16100-MN2-675

Unavailable

19

CARBURETOR ASSY. This part replaces 16100-MN2-673.

16100-MN2-675

Unavailable

19

CARBURETOR ASSY. This part replaces 16100-MN2-674.

16100-MN2-675

Unavailable

19

CARBURETOR ASSY.

16100-MN2-675

Unavailable

20

CARBURETOR ASSY. 1 This part replaces 16101-MN2-671.

16101-MN2-673

Unavailable

20

CARBURETOR ASSY. 1

16101-MN2-673

Unavailable

21

CARBURETOR ASSY. 2 This part replaces 16102-MN2-671.

16102-MN2-673

Unavailable

21

CARBURETOR ASSY. 2

16102-MN2-673

Unavailable

22

CARBURETOR ASSY. 3 This part replaces 16103-MN2-671.

16103-MN2-673

Unavailable

22

CARBURETOR ASSY. 3

16103-MN2-673

Unavailable

23

CARBURETOR ASSY. 4 This part replaces 16104-MN2-671.

16104-MN2-673

Unavailable

23

CARBURETOR ASSY. 4

16104-MN2-673

Unavailable

24

FUNNEL, AIR (NOT AVAILABLE)

16141-MN0-004

Unavailable

26

CLIP, TUBE This part replaces 16163-MB3-671.

16163-GHB-610

$1.73

31

BASE, AIR CLEANER

16188-MN0-004

Unavailable

37

TUBE

16198-MN0-004

Unavailable

39

TUBE, AIR VENT (NOT AVAILABLE)

16199-MB4-621

Unavailable

40

TUBE

16199-MN0-004

Unavailable

42

SCREW-WASHER (4X8)

93892-04008-00

$1.49

43

SCREW-WASHER (4X12)

93892-04014-00

$1.49

44

SCREW-WASHER (5X12)

93892-05012-00

$1.49

45

PIN, COTTER (1.2X8)

94201-12080

Unavailable

49

CLIP, TUBE (B12)

95002-02120

$2.00
