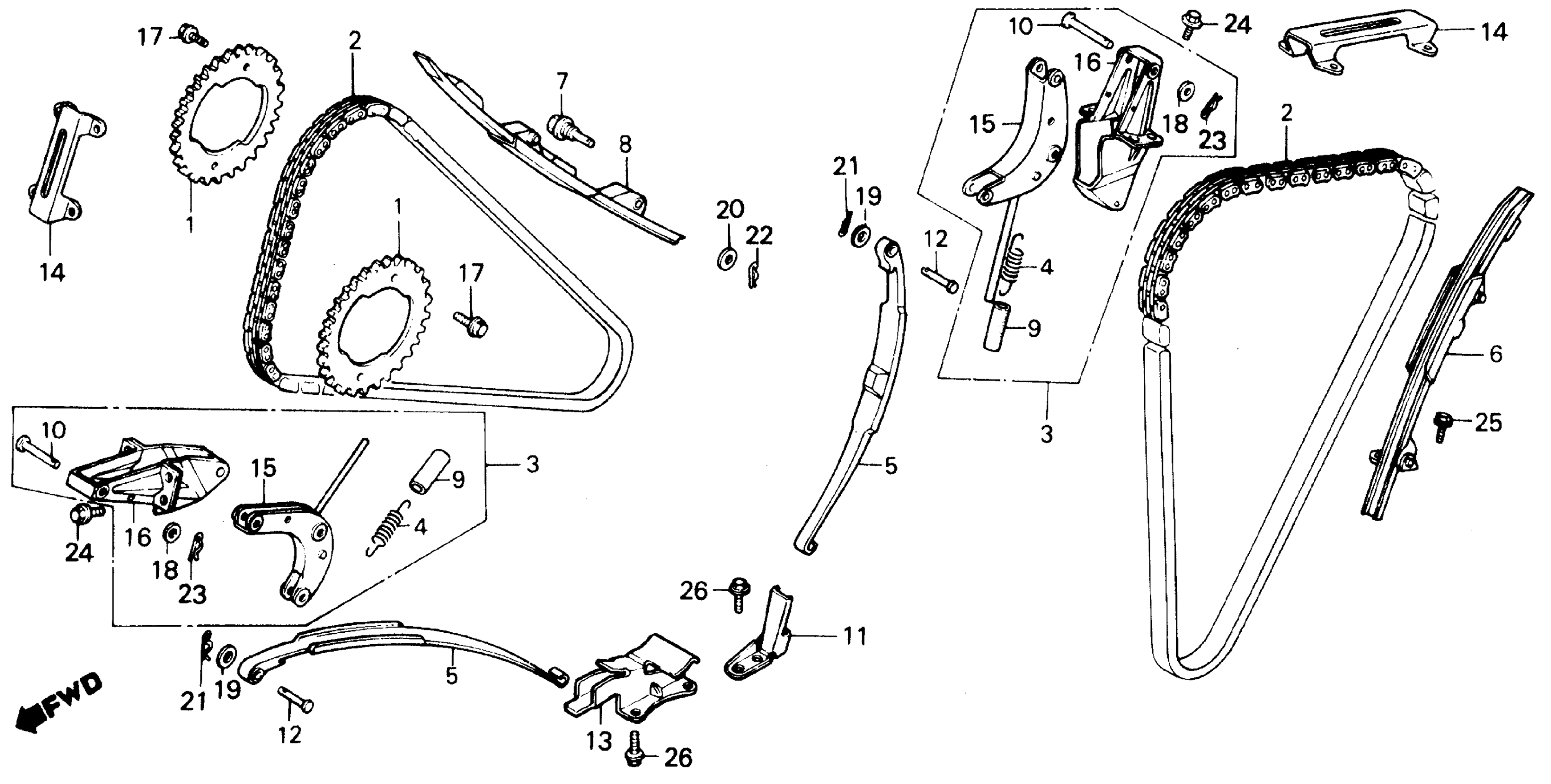

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 CAM CHAIN Diagram

SPROCKET, CAM (46T) (NOT AVAILABLE)

14321-MN0-000

Unavailable

CHAIN, CAM

14401-MB0-003

Unavailable

BRACKET ASSY., CAM CHAIN TENSIONER

14510-MB0-874

Unavailable

SPRING, TENSIONER

14514-MB0-000

Unavailable

TENSIONER, CAM CHAIN

14515-MB0-010

Unavailable

GUIDE A, CAM CHAIN (NOT AVAILABLE) This part replaces 14520-MB0-000.

14520-MN0-000

Unavailable

BOLT, CAM CHAIN GUIDE A

14521-MB0-020

Unavailable

GUIDE A, CAM CHAIN This part replaces 14522-MB0-003.

14522-MN0-000

Unavailable

GUIDE A, CAM CHAIN

14522-MN0-000

Unavailable

TUBE, TENSIONER SPRING

14525-MB0-020

Unavailable

PIN (8X43.2)

14526-MB0-000

Unavailable

HOLDER A ASSY., CAM CHAIN TENSIONER

14530-MB0-000

Unavailable

PIN A, ARM

14533-MB0-000

Unavailable

HOLDER B ASSY., CAM CHAIN TENSIONER (NOT AVAILABLE)

14540-MB0-870

Unavailable

GUIDE B, CAM CHAIN (NOT AVAILABLE)

14541-MB0-000

Unavailable

ARM, CAM CHAIN TENSIONER (NOT AVAILABLE)

14550-MB0-871

Unavailable

BRACKET, CAM CHAIN TENSIONER HOLDER

14560-MB0-873

Unavailable

BOLT, UBS (7X15) This part replaces 90026-ME9-000.

90026-MM8-000

$2.92

BOLT, UBS (7X15)

90026-MM8-000

$2.92

WASHER (8MM)

90405-463-000

$3.45

WASHER (6MM) This part replaces 90485-KE8-000.

90485-VM0-000

$2.92

WASHER (7MM)

90486-MB0-000

Unavailable

PIN, SPECIAL LOCK (6MM)

90704-MB0-000

Unavailable

PIN, LOCK (5MM)

94251-05000

$1.49

PIN, LOCK (8MM)

94251-08000

$1.49

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
