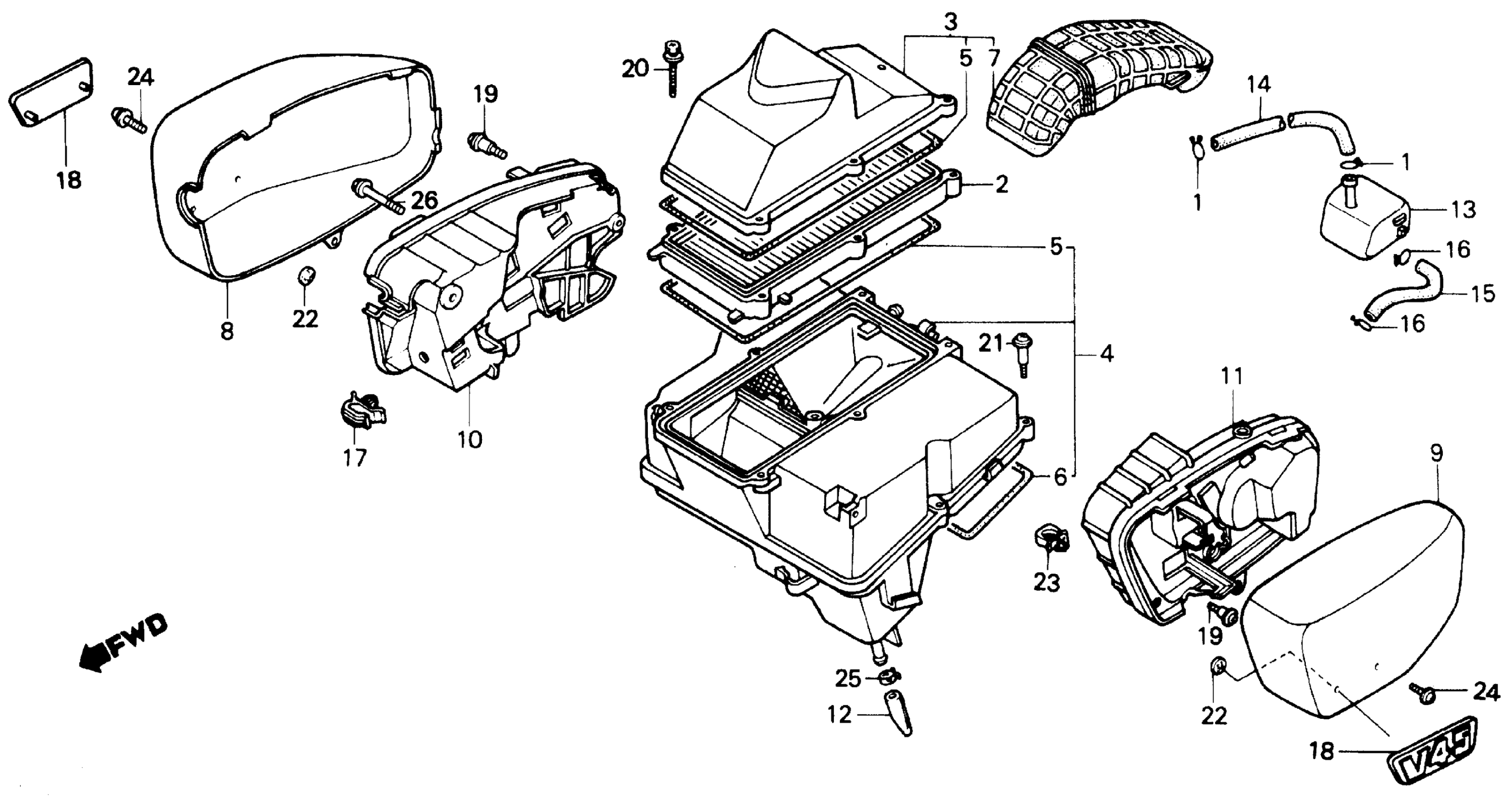

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-551-000

$2.05

2

ELEMENT, AIR CLEANER

17210-MN0-003

Unavailable

3

COVER, AIR CLEANER

17215-MN0-000

Unavailable

4

HOUSING, AIR CLEANER

17230-MN0-010

Unavailable

5

SEAL, AIR CLEANER COVER This part replaces 17222-MK7-000.

17222-MN4-405

$7.31

5

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

5

SEAL, AIR CLEANER COVER This part replaces 17231-MN0-300.

17222-MN4-405

$7.31

6

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

6

SEAL, AIR CLEANER COVER This part replaces 17232-MN0-300.

17222-MN4-405

$7.31

7

DUCT, AIR CLEANER IN.

17251-MN0-300

Unavailable

8

COVER, R. AIR CLEANER SIDE

17255-MN0-000

Unavailable

9

COVER, L. AIR CLEANER SIDE

17256-MN0-000

Unavailable

10

BASE, R. AIR CLEANER SIDE COVER (NOT AVAILABLE)

17257-MN0-000

Unavailable

11

BASE, L. AIR CLEANER SIDE COVER (NOT AVAILABLE)

17258-MN0-000

Unavailable

12

TUBE, DRAIN

17359-KG4-000

Unavailable

13

TANK, STORAGE

17551-MN0-000

Unavailable

14

TUBE, BREATHER

17553-MK3-000

Unavailable

15

TUBE, RETURN

17555-MN2-670

Unavailable

16

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

17

CLIP, WIRE HARNESS

32161-393-003

$3.07

18

EMBLEM, AIR CLEANER SIDE COVER (NOT AVAILABLE)

87125-MN2-670

Unavailable

19

SCREW, PAN (5X17)

90105-MG9-000

$3.28

20

BOLT-WASHER (5X40) (NOT AVAILABLE)

90131-MN0-000

Unavailable

21

SCREW, PAN (4X25)

90141-MN0-000

Unavailable

22

NUT, SPEED (3MM)

90313-567-000

$3.97

23

CLIP, WIRE HARNESS

90684-MN0-000

Unavailable

24

SCREW-WASHER (5X12)

93891-05012-07

$1.49

25

CLIP, TUBE (D10.5)

95002-41050-08

$2.34

26

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

26

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
