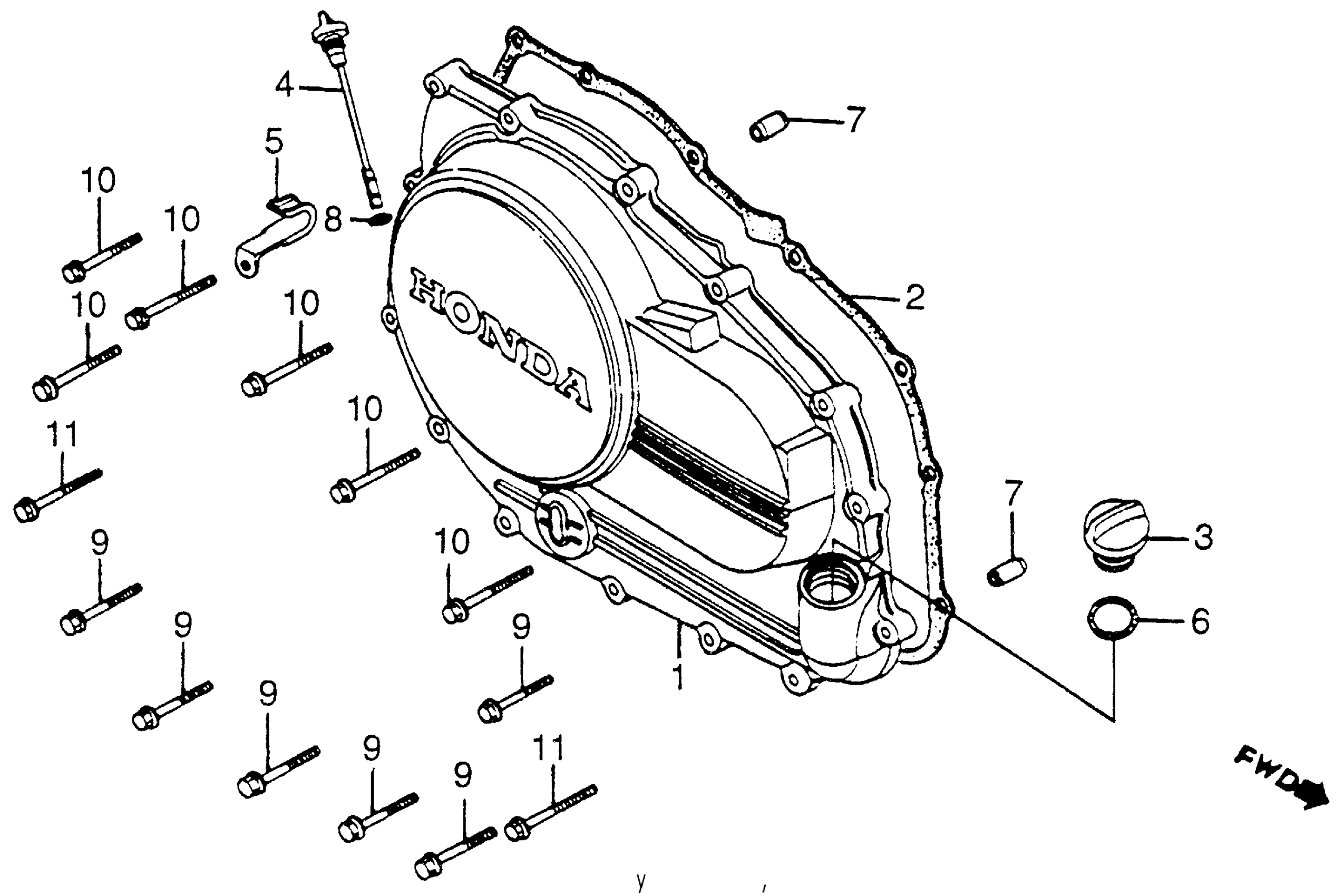

Honda VF750CA (83) V45 MAGNA, JPN, VIN# JH2RC071-DM100011 TO JH2RC071-DM122819 RIGHT CRANKCASE COVER Diagram

COVER ASSY., R. CRANKCASE (NOT AVAILABLE)

11330-MB0-770

Unavailable

GASKET, R. CRANKCASE COVER This part replaces 11394-MB0-000.

11394-MB0-306

$43.97

GASKET, R. CRANKCASE COVER

11394-MB0-306

$43.97

CAP, OIL FILLER

15611-MB0-000

$9.93

DIPSTICK, OIL (NOT AVAILABLE) This part replaces 15650-MB0-770.

15650-MB3-000

Unavailable

CLAMP, PULSER WIRE

30301-MB0-000

Unavailable

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

O-RING (22X3.0)

91307-425-003

$2.59

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

O-RING (8.4X2.4)

94608-10000

$1.49

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

BOLT, FLANGE (6X32) This part replaces 96000-06032-07.

96001-06032-07

$1.54

BOLT, FLANGE (6X32)

96001-06032-07

$1.54

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$2.06

BOLT, FLANGE (6X35)

96001-06035-07

$2.06
