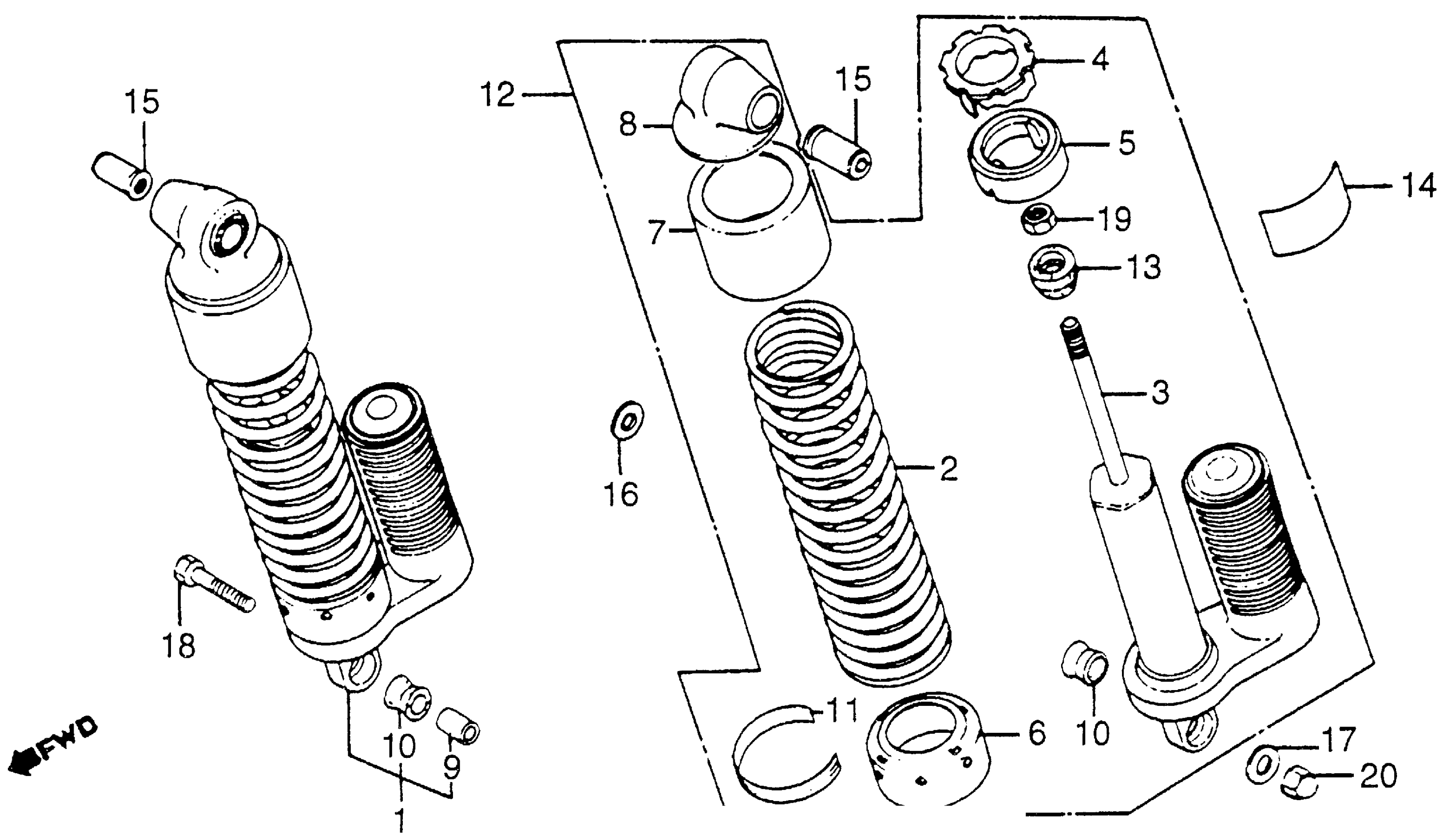

Honda VF750CA (83) V45 MAGNA, JPN, VIN# JH2RC071-DM100011 TO JH2RC071-DM122819 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR.

52400-MB1-405

Unavailable

SHOCK ABSORBER ASSY., RR. This part replaces 52400-MB1-671.

52400-MB1-405

Unavailable

SPRING, RR. SHOCK ABSORBER

52401-MB1-003

Unavailable

DAMPER, RR.

52410-MB1-003

Unavailable

ADJUSTER, SPRING (NOT AVAILABLE)

52422-410-003

Unavailable

STOPPER, SPRING ADJUSTING (NOT AVAILABLE)

52424-MB1-003

Unavailable

SEAT, SPRING (LOWER)

52458-MB1-003

Unavailable

CASE, RR. SHOCK ABSORBER (UPPER)

52460-ME1-671

Unavailable

JOINT (UPPER)

52480-MB1-305

Unavailable

COLLAR, RR. SHOCK ABSORBER

52486-463-000

$7.77

BUSH, RUBBER (UPPER) (SHOWA)

52489-461-771

$6.34

LABEL A (NOT AVAILABLE)

52496-MB1-003

Unavailable

SHOCK ABSORBER ASSY., RR.

52400-MB1-405

Unavailable

SHOCK ABSORBER ASSY., RR. This part replaces 52500-MB1-671.

52400-MB1-405

Unavailable

RUBBER, STOPPER

52517-404-003

$5.70

LABEL, HELMET HOLDER

87511-323-670

$2.72

NUT, RR. SHOCK ABSORBER (NOT AVAILABLE)

90309-MB1-000

Unavailable

WASHER, PLAIN (16MM)

90439-463-000

$1.50

WASHER (10.3MM)

90521-292-000

$3.42

BOLT, HEX. (10X35) This part replaces 93200-10035-0B.

93201-10035-0B

Unavailable

NUT, HEX. (10MM)

94002-10000-0S

$4.06

NUT, CAP (10MM)

94021-10000-0S

$1.72
