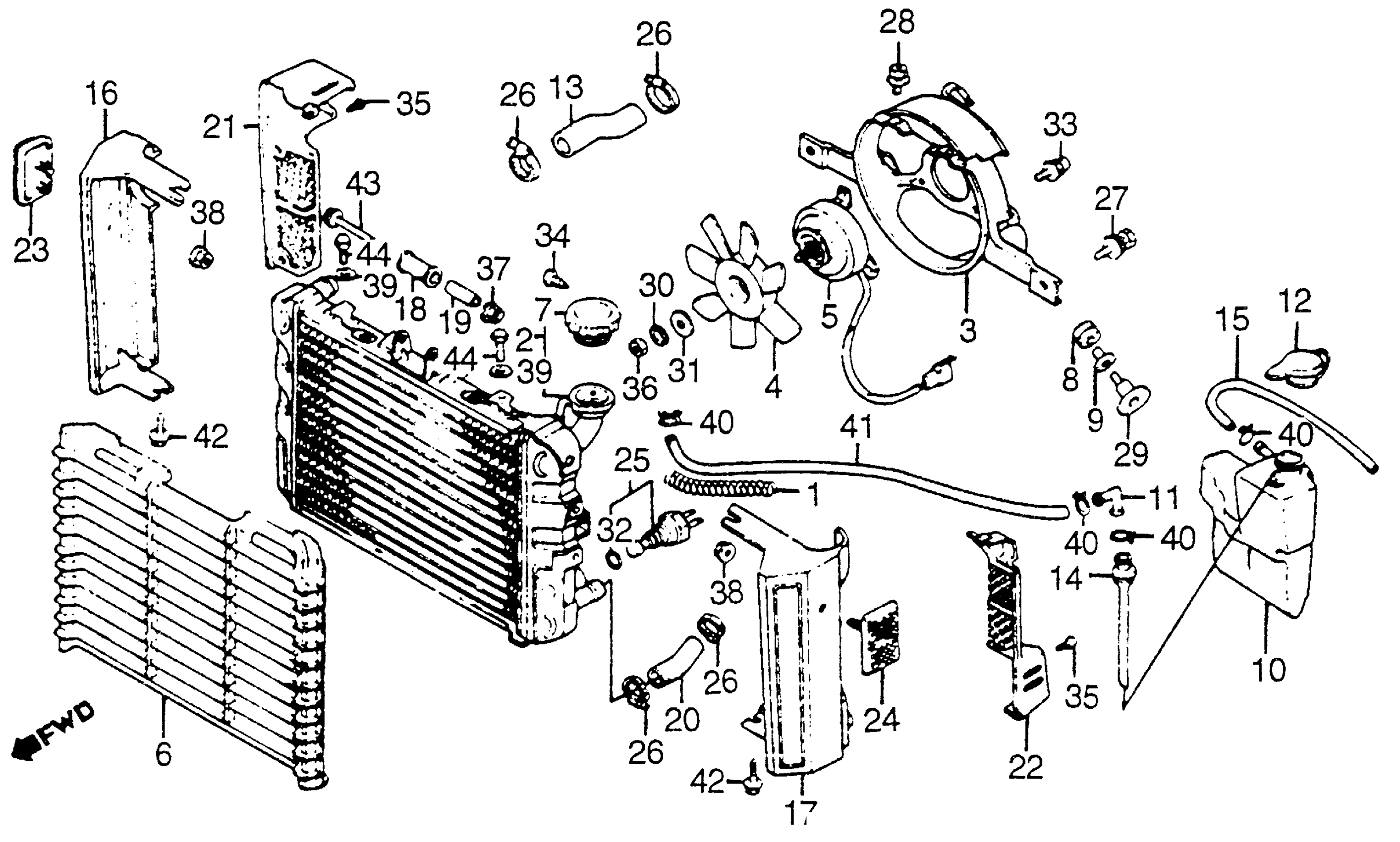

Honda VF750CA (83) V45 MAGNA, JPN, VIN# JH2RC071-DM100011 TO JH2RC071-DM122819 RADIATOR Diagram

#

Description
Price

1

SPRING, FUEL TUBE COVER

17532-404-000

Unavailable

2

RADIATOR (NOT AVAILABLE)

19010-MB0-003

Unavailable

3

SHROUD

19015-MB1-003

Unavailable

4

FAN, COOLING

19020-MB0-003

Unavailable

5

MOTOR, FAN

19030-MB0-003

Unavailable

6

GRILLE, RADIATOR

19032-MB1-000

Unavailable

7

CAP, RADIATOR This part replaces 19045-MB0-003.

19045-MZ3-405

$32.49

7

CAP, RADIATOR This part replaces 19045-MB0-013.

19045-MZ3-405

$32.49

7

CAP, RADIATOR

19045-MZ3-405

$32.49

8

RUBBER, RADIATOR SETTING

19051-KA4-000

$3.80

9

COLLAR, RADIATOR SETTING

19052-MB0-000

$6.34

10

TANK, RESERVE (NOT AVAILABLE)

19101-MB1-000

Unavailable

11

JOINT, TUBE

19103-463-000

Unavailable

12

CAP, RESERVE TANK

19104-MB0-000

Unavailable

13

HOSE, RADIATOR

19107-MB1-000

Unavailable

14

TUBE, LEVEL This part replaces 19108-MB0-000.

19108-MB0-010

$11.50

14

TUBE, LEVEL

19108-MB0-010

$11.50

15

TUBE, OVERFLOW

19108-MB1-000

Unavailable

16

COVER, R. RADIATOR (NOT AVAILABLE)

19110-MB1-770

Unavailable

17

COVER, L. RADIATOR (NOT AVAILABLE)

19111-MB1-770

Unavailable

18

RUBBER, RADIATOR SETTING

19113-MB0-000

Unavailable

19

COLLAR, RADIATOR SETTING

19114-MB0-000

Unavailable

20

HOSE A, RADIATOR

19115-MB0-000

Unavailable

21

COVER, R. RR. RADIATOR (NOT AVAILABLE)

19118-MB1-000

Unavailable

22

COVER, L. RR. RADIATOR

19119-MB1-000

Unavailable

23

REFLECTOR, R. FR. REFLEX (NOT AVAILABLE)

33740-MB0-003

Unavailable

24

REFLECTOR, L. FR. REFLEX (NOT AVAILABLE) This part replaces 33741-MB0-000.

33741-MB0-003

Unavailable

24

REFLECTOR, L. FR. REFLEX (NOT AVAILABLE)

33741-MB0-003

Unavailable

25

SWITCH ASSY., THERMO

37760-MC7-003

Unavailable

26

CLAMP, WATER HOSE

50228-MB0-000

Unavailable

27

BOLT-WASHER (6x10) (DENSO) (NOT AVAILABLE)

90042-679-003

Unavailable

28

BOLT-WASHER (5X8)

90046-MB0-003

Unavailable

29

BOLT, RADIATOR SETTING

90111-MB1-000

Unavailable

30

WASHER, SPRING (5MM)

90401-679-003

$1.70

31

WASHER, PLAIN (5MM) This part replaces 90402-679-003.

94103-05800

$1.49

31

WASHER, PLAIN (5MM)

94103-05800

$1.49

32

O-RING (13.5X1.4)

91307-PH7-660

$2.83

32

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

33

SCREW-WASHER (5X10)

93893-05010-08

$1.49

34

SCREW, TAPPING (3X8) | Use from Frame SN DM115177

93901-22180

$1.49

35

SCREW, TAPPING (5X10)

93903-35180

$1.49

36

NUT, HEX. (5MM)

94001-050800S

$1.49

37

NUT, FLANGE (6MM)

94050-06000

$1.49

38

NUT, FLANGE (6MM)

94050-06080

$1.49

39

WASHER, PLAIN (6MM)

94101-06200

$1.49

40

CLIP, TUBE (C11)

95002-70000

$1.56

41

BULK HOSE, VACUUM (7X3000) (7X800)

95005-70003-30M

$23.45

42

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

42

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

43

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

43

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

44

BOLT, FLANGE (6X10) This part replaces 96000-06010-02.

96001-06010-02

$1.54

44

BOLT, FLANGE (6X10)

96001-06010-02

$1.54
