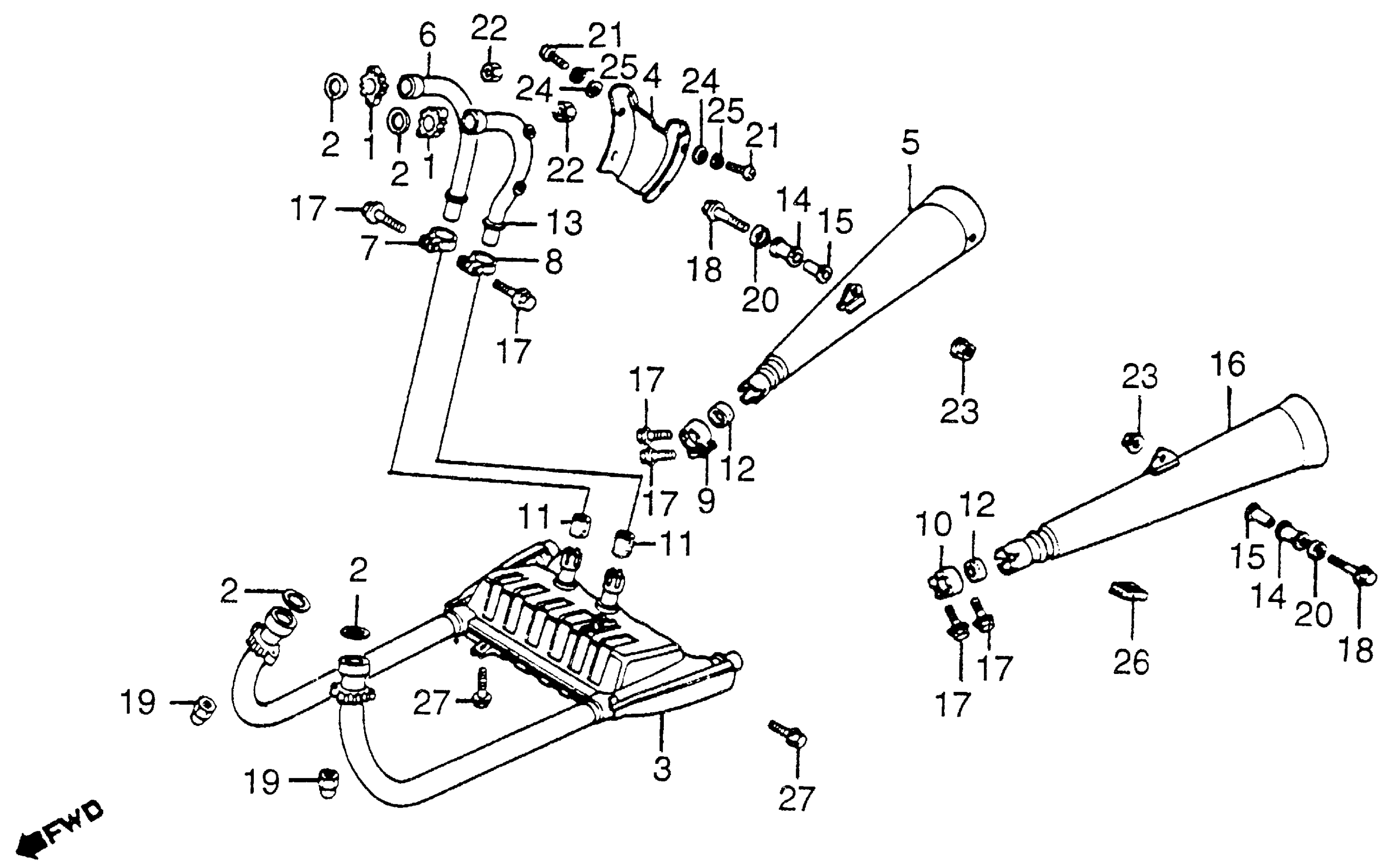

Honda VF750CA (83) V45 MAGNA, JPN, VIN# JH2RC071-DM100011 TO JH2RC071-DM122819 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-MB0-000

Unavailable

2

GASKET, EX. PIPE

18291-MN5-650

$3.77

2

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

3

MUFFLER, EX. | Use up to Frame SN DM122119 This part replaces 18300-MB1-003.

18300-MB1-920

Unavailable

3

MUFFLER, EX. This part replaces 18300-MB1-771.

18300-MB1-920

Unavailable

3

MUFFLER, EX. | Use up to Frame SN DM122119 This part replaces 18300-MB1-771.

18300-MB1-920

Unavailable

3

MUFFLER, EX.

18300-MB1-920

Unavailable

3

MUFFLER, EX. | Use up to Frame SN DM122119

18300-MB1-920

Unavailable

4

PROTECTOR, RR. EX. PIPE This part replaces 18316-MB0-003.

18316-MK3-003

Unavailable

4

PROTECTOR, RR. EX. PIPE

18316-MK3-003

Unavailable

5

MUFFLER, R. | Use up to Frame SN DM122119 This part replaces 18330-MB1-671.

18330-MB1-672

Unavailable

5

MUFFLER, R.

18330-MB1-672

Unavailable

5

MUFFLER, R. | Use up to Frame SN DM122119 This part replaces 18330-MB1-730.

18330-MB1-672

Unavailable

6

PIPE, R. RR. EX. This part replaces 18370-MB0-003.

18370-MB0-890

Unavailable

6

PIPE, R. RR. EX.

18370-MB0-890

Unavailable

7

BAND, R. EX.

18373-MB0-003

Unavailable

8

BAND, L. EX. PIPE

18374-MB0-003

Unavailable

9

BAND, R. MUFFLER

18376-MB0-003

Unavailable

10

BAND, L. MUFFLER

18377-MB0-003

Unavailable

11

GASKET, MUFFLER

18391-MB0-891

$17.92

11

GASKET, EX. This part replaces 18391-313-000.

18391-MB0-891

$17.92

12

GASKET, MUFFLER This part replaces 18391-317-000.

18392-MK4-000

$13.66

12

GASKET, MUFFLER This part replaces 18391-317-010.

18392-MK4-000

$13.66

12

GASKET, MUFFLER

18392-MK4-000

$13.66

13

PIPE, L. RR. EX. This part replaces 18420-MB0-003.

18420-MB0-890

Unavailable

14

RUBBER, MUFFLER SETTING

18421-MB0-000

$6.34

15

COLLAR, MUFFLER SETTING

18422-MB0-000

$6.61

16

MUFFLER, L. | Use up to Frame SN DM122119 This part replaces 18430-MB1-671.

18430-MB1-672

Unavailable

16

MUFFLER, L.

18430-MB1-672

Unavailable

16

MUFFLER, L. | Use up to Frame SN DM122119 This part replaces 18430-MB1-730.

18430-MB1-672

Unavailable

17

BOLT, FLANGE (8X37)

90118-471-000

$3.19

18

BOLT, SPECIAL FLANGE (8X45)

90158-MB1-000

$5.13

19

NUT, CAP (6MM)

90304-438-000

$7.14

20

WASHER, SPECIAL (8MM)

90557-MB0-000

Unavailable

21

SCREW, PAN (6X8)

93500-06008-4J

$2.30

21

SCREW, PAN (6X8) This part replaces 93500-06008-49.

93500-06008-4J

$2.30

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

NUT, FLANGE (8MM)

94050-08000

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, SPRING (6MM)

94111-06000

$1.49

26

RUBBER A, STAND STOPPER

95011-61000

$1.49

27

BOLT, FLANGE (6X18) | Use up to Frame SN DM122119 This part replaces 95700-06018-08.

95701-06018-08

$1.62

27

BOLT, FLANGE (6X18) | Use up to Frame SN DM122119

95701-06018-08

$1.62

27

BOLT, FLANGE (6X20) | Use from Frame SN DM122120

90003-MB2-000

Unavailable

27

BOLT, FLANGE (6X20) | Use from Frame SN DM122120 This part replaces 90003-MC7-000.

90003-MB2-000

Unavailable
