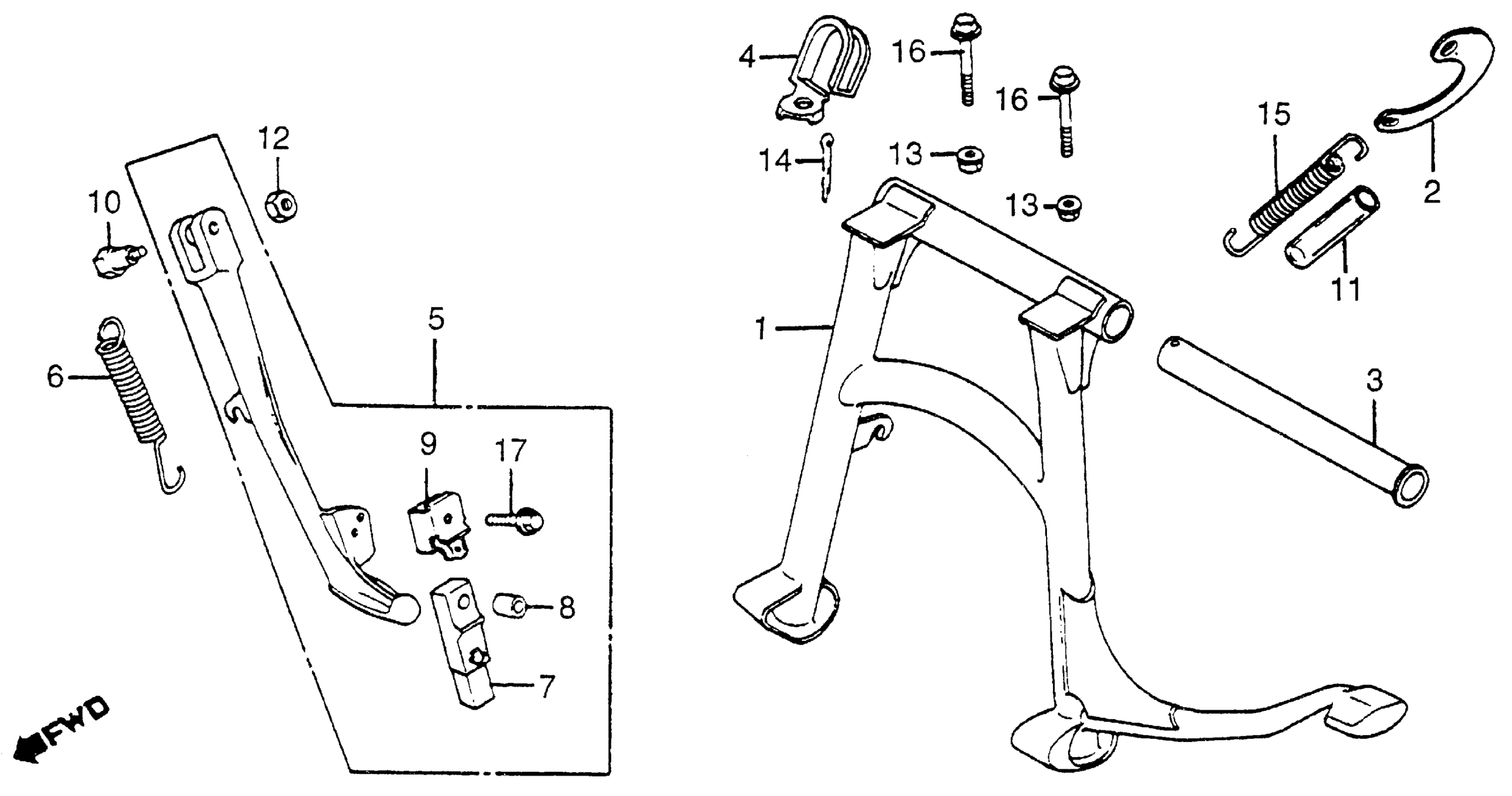

Honda VF750CA (83) V45 MAGNA, JPN, VIN# JH2RC071-DM100011 TO JH2RC071-DM122819 MAIN STAND + SIDE STAND Diagram

STAND, MAIN

50500-MB1-000

Unavailable

PLATE, MAIN STAND SPRING

50523-425-000

Unavailable

PIPE, MAIN STAND PIVOT

50526-MB0-000

Unavailable

GUIDE, OVERFLOW TUBE

50528-MB1-000

Unavailable

BAR ASSY., SIDE STAND This part replaces 50540-MB1-000.

50540-MB4-830

Unavailable

BAR ASSY., SIDE STAND

50540-MB4-830

Unavailable

SPRING, SIDE STAND

50541-445-010

Unavailable

RUBBER, STAND

50548-356-700

$10.50

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

BRACKET, SIDE STAND RUBBER

50574-MB0-000

Unavailable

BOLT, SIDE STAND PIVOT

90108-MB0-000

Unavailable

COVER, MAIN STAND SPRING

90125-410-000

Unavailable

NUT, HEX. (10MM)

94031-10070

Unavailable

NUT, FLANGE (8MM)

94050-08000

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49

SPRING G, MAIN STAND

95014-71702

$4.08

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
