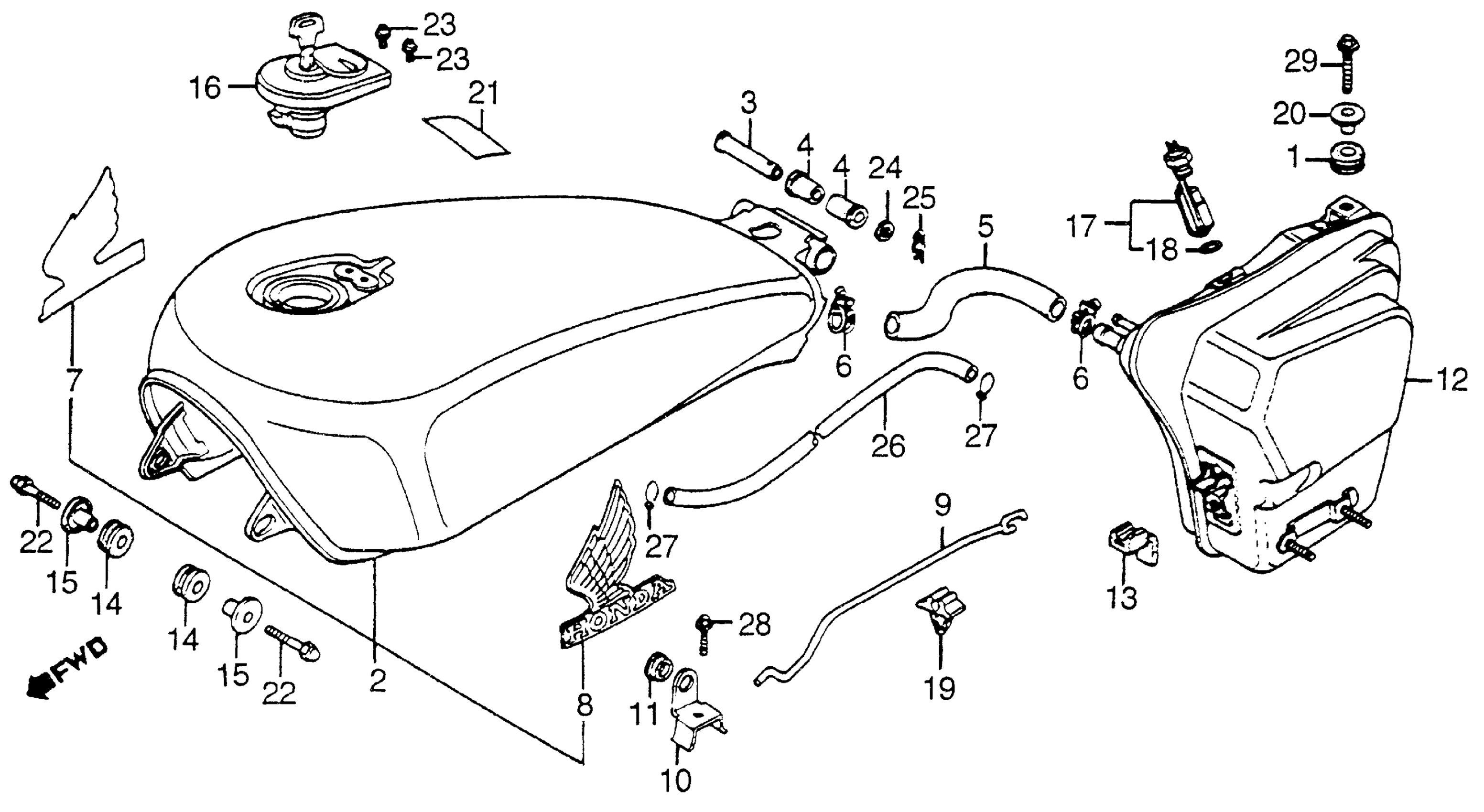

Honda VF750CA (83) V45 MAGNA, JPN, VIN# JH2RC071-DM100011 TO JH2RC071-DM122819 FUEL TANK Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

TANK, FUEL *R115CU* (WL) (CANDY MAROON-U) This part replaces 175A1-MB1-000ZA.

175A1-MB1-020ZA

Unavailable

2

TANK, FUEL *R115CU* (WL) (CANDY MAROON-U) This part replaces 175A1-MB1-010ZA.

175A1-MB1-020ZA

Unavailable

2

TANK, FUEL *R115CU* (WL) (CANDY MAROON-U)

175A1-MB1-020ZA

Unavailable

2

TANK, FUEL *NH1Z* (WL) (BLACK-Z) (NOT AVAILABLE) This part replaces 175A1-MB1-000ZD.

175A1-MB1-020ZD

Unavailable

2

TANK, FUEL *NH1Z* (WL) (BLACK-Z) (NOT AVAILABLE) This part replaces 175A1-MB1-010ZD.

175A1-MB1-020ZD

Unavailable

2

TANK, FUEL *NH1Z* (WL) (BLACK-Z) (NOT AVAILABLE)

175A1-MB1-020ZD

Unavailable

3

SHAFT, FUEL TANK PIVOT (NOT AVAILABLE)

17505-MB1-000

Unavailable

4

RUBBER, FUEL TANK PIVOT

17506-MB1-000

$4.40

5

TUBE A, FUEL

17511-MB1-000

$49.54

6

BAND, FUEL TUBE

17519-MB1-000

Unavailable

7

EMBLEM, R. FUEL TANK

17531-MB1-000

Unavailable

8

EMBLEM, L. FUEL TANK

17532-MB1-000

Unavailable

9

STAY, FUEL TANK SUPPORT (NOT AVAILABLE)

17540-MB1-000

Unavailable

10

STAY, FUEL TANK PIVOT

17545-MB1-000

Unavailable

11

GROMMET

17548-MB1-000

Unavailable

12

SUB-TANK, FUEL

17550-MB1-000

Unavailable

13

RUBBER, FUEL TANK MOUNTING (NOT AVAILABLE)

17552-MB1-000

Unavailable

14

RUBBER, FR. FUEL TANK

17611-MB1-000

$3.67

15

COLLAR, FR. FUEL TANK MOUNTING

17612-MB1-000

$19.34

16

CAP, FUEL FILLER This part replaces 17620-MB1-003.

17620-MB1-043

$129.39

16

CAP, FUEL FILLER This part replaces 17620-MB1-013.

17620-MB1-043

$129.39

16

CAP, FUEL FILLER This part replaces 17620-MB1-023.

17620-MB1-043

$129.39

16

CAP, FUEL FILLER This part replaces 17620-MB1-033.

17620-MB1-043

$129.39

17

SENSOR, FUEL RESERVE

37810-MB1-008

Unavailable

18

GASKET, FUEL RESERVE SENSOR

37811-MB1-008

$2.92

19

CLIP S, BRAKE PIPE

46391-692-003

Unavailable

20

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

20

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

20

COLLAR, RR. FENDER

61105-428-000

Unavailable

21

LABEL, DRIVE CAUTION *A73* (TYPEG) (GOLD) (NOT AVAILABLE)

87560-181-760ZC

Unavailable

22

BOLT, CAP (6X20) This part replaces 92600-06020-0B.

92601-06020-0B

$2.89

23

SCREW-WASHER (4X8)

93892-04008-08

$1.49

24

WASHER, PLAIN (8MM)

94101-08800

$1.93

25

PIN, LOCK (8MM)

94251-08400

Unavailable

26

*95001-55003-50M This part replaces 95001-55008-20M.

95001-55008-50M

Unavailable

27

CLIP, TUBE (A12)

95002-01120

$2.75

28

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

28

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

29

BOLT, FLANGE (6X25) | Use up to Frame SN DM120137

95700-06025-08

$1.72

29

BOLT, FLANGE (6X25) | Use up to Frame SN DM120137

95701-06025-08

$1.72

29

BOLT, FLANGE (6X20) | Use from Frame SN DM120138 This part replaces 95700-06020-08.

95701-06020-08

$1.49

29

BOLT, FLANGE (6X20) | Use from Frame SN DM120138

95701-06020-08

$1.49
