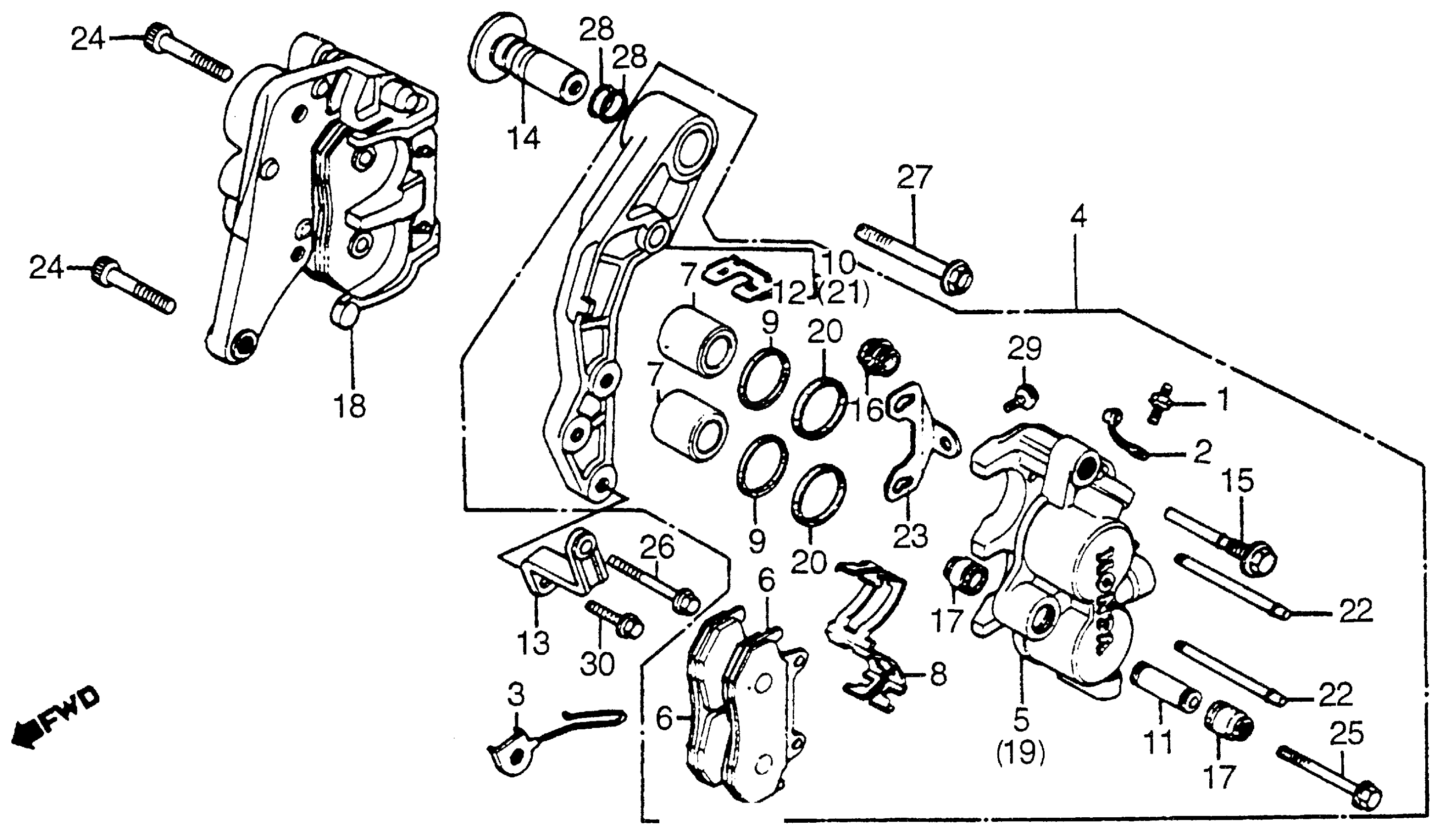

Honda VF750CA (83) V45 MAGNA, JPN, VIN# JH2RC071-DM100011 TO JH2RC071-DM122819 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, BRAKE

06455-MB0-405

$37.20

NI

PAD SET, BRAKE This part replaces 451A0-MB0-670.

06455-MB0-405

$37.20

1

SCREW, BLEEDER

43352-568-003

$7.95

2

CAP, BLEEDER

43353-461-771

$5.05

3

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-MB1-000

Unavailable

4

CALIPER, L. FR. | Use up to Frame SN DM122119 This part replaces 45100-MB1-007.

45100-MB1-405

Unavailable

4

CALIPER, L. FR. | Use up to Frame SN DM122119 This part replaces 45100-MB1-008.

45100-MB1-405

Unavailable

4

CALIPER, L. FR. | Use from Frame SN DM122120 This part replaces 45100-MB1-701.

45100-MB1-405

Unavailable

4

CALIPER, L. FR. | Use from Frame SN DM122120 This part replaces 45100-MB1-702.

45100-MB1-405

Unavailable

5

CALIPER, L.

45101-MA3-006

Unavailable

6

PAD (NISSHIN) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) | Use up to Frame SN DM122119 This part replaces 45105-MB0-007.

45105-MB0-008

Unavailable

6

PAD (NISSHIN) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) | Use up to Frame SN DM122119

45105-MB0-008

Unavailable

6

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) | Use from Frame SN DM122120 This part replaces 45105-MB1-701.

45105-MJ1-673

Unavailable

6

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) | Use from Frame SN DM122120 This part replaces 45105-MB1-702.

45105-MJ1-673

Unavailable

6

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) | Use from Frame SN DM122120 This part replaces 45105-MJ1-672.

45105-MJ1-673

Unavailable

6

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) | Use from Frame SN DM122120

45105-MJ1-673

Unavailable

7

PISTON

45107-MA3-006

$50.26

8

SPRING, PAD

45108-MA3-006

$6.28

9

DUST SEAL

45109-166-006

$6.41

10

BRACKET, L. FR.

45110-ME1-671

Unavailable

11

SLEEVE

45111-MA3-006

$13.38

12

RETAINER, BRACKET

45112-445-631

$8.98

13

BRIDGE, CALIPER BRACKET (NOT AVAILABLE)

45113-ME1-670

Unavailable

14

SLEEVE, FR. CALIPER BRACKET

45114-MB7-610

Unavailable

15

PIN, BOLT

45131-MA3-006

$17.59

16

BOOT B

45133-MA3-006

$5.46

17

BOOT, PIN This part replaces 45133-166-006.

45133-166-016

$3.85

17

BOOT, PIN

45133-166-016

$3.85

18

CALIPER ASSY., R. FR. (NISSHIN) | Use up to Frame SN DM122119 This part replaces 45200-MB1-007.

45200-MB1-405

Unavailable

18

CALIPER ASSY., R. FR. (NISSHIN) | Use up to Frame SN DM122119 This part replaces 45200-MB1-008.

45200-MB1-405

Unavailable

18

CALIPER ASSY., R. FR. (NISSHIN) | Use up to Frame SN DM122119

45200-MB1-405

Unavailable

18

CALIPER ASSY., R. FR. (NISSHIN) (NOT AVAILABLE) | Use from Frame SN DM122120 This part replaces 45200-MB1-701.

45200-MB1-702

Unavailable

18

CALIPER ASSY., R. FR. (NISSHIN) (NOT AVAILABLE) | Use from Frame SN DM122120

45200-MB1-702

Unavailable

19

CALIPER, R. (NOT AVAILABLE)

45201-MA3-006

Unavailable

20

SEAL, PISTON

45209-166-006

$8.64

21

BRACKET, R. FR. (NOT AVAILABLE)

45210-MA5-006

Unavailable

22

PIN, HANGER

45215-MA3-006

$12.77

23

PLATE

45217-MA3-006

$4.45

24

BOLT, SOCKET (10X40) (NOT AVAILABLE)

90164-460-840

Unavailable

25

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

26

BOLT, FLANGE (8X55)

90180-MA3-660

$4.72

27

BOLT, FLANGE (10X50)

90185-MC7-013

Unavailable

28

O-RING (16.8X1.9) This part replaces 91302-MC7-611.

91347-PY3-000

$2.68

28

O-RING (16.8X1.9)

91347-PY3-000

$2.68

29

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

29

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

30

BOLT, FLANGE (8X20) This part replaces 95700-08020-07.

95701-08020-07

$1.87

30

BOLT, FLANGE (8X20)

95701-08020-07

$1.87
