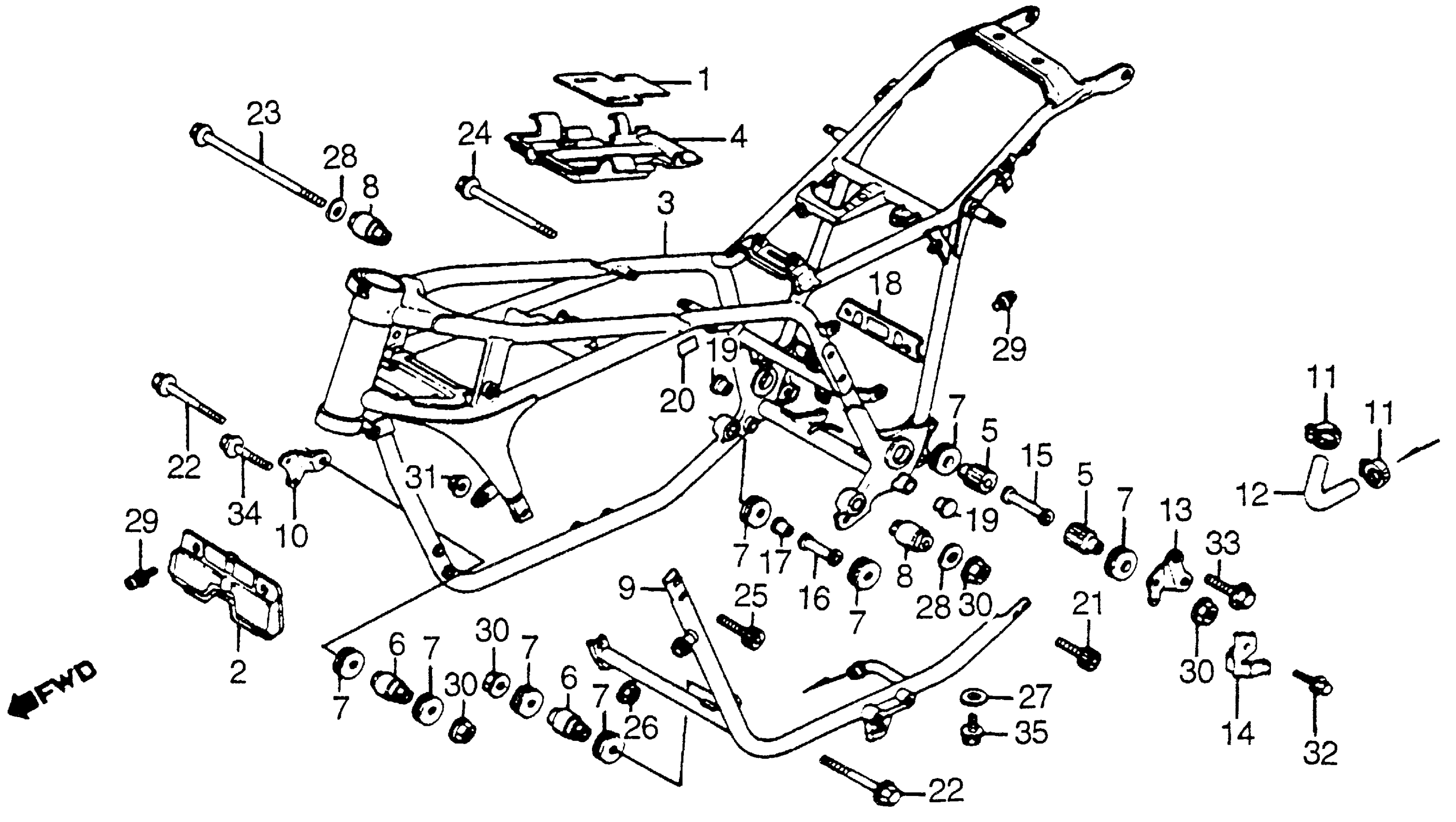

Honda VF750CA (83) V45 MAGNA, JPN, VIN# JH2RC071-DM100011 TO JH2RC071-DM122819 FRAME Diagram

#

Description
Price

1

SEAT, FUEL TANK (NOT AVAILABLE) This part replaces 17559-MB1-000.

17559-MB1-010

Unavailable

1

SEAT, FUEL TANK

17559-MB1-010

Unavailable

2

PLATE, MUFFLER HEAT GUARD (NOT AVAILABLE)

19125-MB0-000

Unavailable

3

FRAME *NH1* (WOL) (BLACK) This part replaces 50100-MB1-700ZA.

50100-MB1-702ZA

Unavailable

3

FRAME *NH1* (WOL) (BLACK) This part replaces 50100-MB1-701ZA.

50100-MB1-702ZA

Unavailable

3

FRAME *NH1* (WOL) (BLACK)

50100-MB1-702ZA

Unavailable

4

PLATE, FUEL TANK HEAT GUARD

50189-MB1-000

Unavailable

5

RUBBER A, MOUNTING

50201-MB0-000

Unavailable

6

RUBBER B, MOUNTING

50202-MB0-000

Unavailable

7

RUBBER C, MOUNTING This part replaces 50203-MB0-000.

50203-MB0-010

$25.10

7

RUBBER C, MOUNTING

50203-MB0-010

$25.10

8

RUBBER D, MOUNTING (NOT AVAILABLE)

50206-MB0-000

Unavailable

9

SUB-FRAME

50210-MB1-700

Unavailable

10

PLATE, R. FR. ENGINE HANGER

50216-MB1-700

Unavailable

11

CLAMP, WATER HOSE

50228-MB0-000

Unavailable

12

HOSE, WATER (LOWER)

50242-MB0-000

Unavailable

13

PLATE, RR. ENGINE HANGER

50356-MB1-000

Unavailable

14

CLAMP, WIRE

50358-MB0-000

Unavailable

15

COLLAR A, ENGINE HANGER

50361-MB0-000

Unavailable

16

COLLAR B, ENGINE HANGER

50362-MB0-000

Unavailable

17

COLLAR C, ENGINE HANGER

50363-MB0-000

Unavailable

18

PLATE A, HEAT GUARD (NOT AVAILABLE)

50428-MB1-000

Unavailable

19

CAP, MAIN STAND PIPE

50750-MB0-000

$5.90

20

LABEL, BATTERY CAUTION (NOT AVAILABLE)

87506-MB1-670

Unavailable

21

BOLT, SOCKET (10X25)

90101-MB0-000

Unavailable

22

BOLT, FLANGE (10X65) This part replaces 90102-MB0-000.

90107-KN8-730

Unavailable

23

BOLT, FLANGE (10X345)

90104-MB0-000

Unavailable

24

BOLT, FLANGE (10X220)

90110-MB0-000

Unavailable

25

BOLT, SOCKET (10X30)

90152-MB0-000

Unavailable

26

NUT, FLANGE (8MM)

90208-425-870

Unavailable

27

WASHER, SEALING (6MM)

90441-028-010

$2.92

28

WASHER, ENGINE HANGER

90502-MB0-000

Unavailable

29

SCREW-WASHER (5X12)

93893-05012-07

$1.49

30

NUT, FLANGE (10MM)

94050-10000

$1.59

31

NUT, FLANGE (10MM)

94050-10080

$3.24

32

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

32

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

33

BOLT, FLANGE (8X16) This part replaces 95700-08016-07.

95701-08016-07

$1.80

33

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

34

BOLT, FLANGE (8X57)

90125-428-900

Unavailable

35

BOLT, FLANGE (6X10) This part replaces 96000-06010-07.

96001-06010-07

$1.62

35

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
