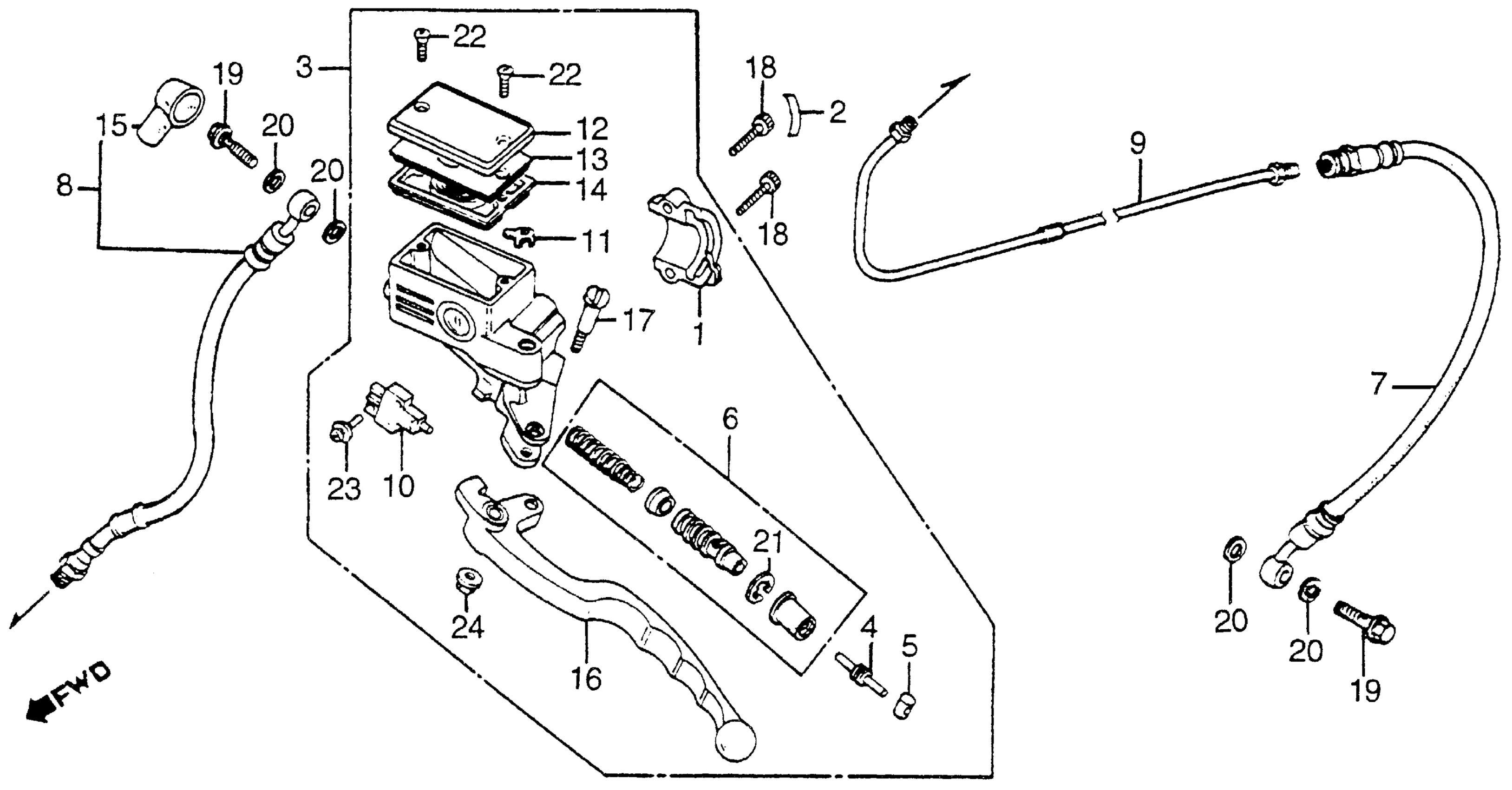

Honda VF750CA (83) V45 MAGNA, JPN, VIN# JH2RC071-DM100011 TO JH2RC071-DM122819 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

HOLDER, CHOKE LEVER | Use up to Frame SN DM122119 This part replaces 17963-MB0-000.

17963-ME8-000

Unavailable

1

HOLDER, CHOKE LEVER | Use up to Frame SN DM122119

17963-ME8-000

Unavailable

1

HOLDER, CHOKE LEVER (NOT AVAILABLE) | Use from Frame SN DM122120

17963-MB0-010

Unavailable

2

MARK, CHOKE (NOT AVAILABLE)

17965-MB0-300

Unavailable

3

MASTER CYLINDER ASSY., CLUTCH | Use up to Frame SN DM117087

22880-MB1-406

Unavailable

3

MASTER CYLINDER ASSY., CLUTCH | Use up to Frame SN DM117087 This part replaces 22880-MB1-671.

22880-MB1-406

Unavailable

3

MASTER CYLINDER ASSY., CLUTCH (NOT AVAILABLE)

22880-MB1-674

Unavailable

4

ROD, PUSH

22884-MB0-006

$20.66

5

BUSH

22885-MB0-006

$12.95

6

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$74.32

7

HOSE B, CLUTCH (NOT AVAILABLE) This part replaces 22890-MB1-003.

22890-MB1-013

Unavailable

7

HOSE B, CLUTCH (NOT AVAILABLE)

22890-MB1-013

Unavailable

8

HOSE A, CLUTCH (NOT AVAILABLE)

22891-MB1-701

Unavailable

9

PIPE, CLUTCH (NOT AVAILABLE)

22895-MB1-000

Unavailable

10

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

11

PROTECTOR | Use from Frame SN DM117088

45512-MA6-006

$4.28

12

CAP

45540-MA6-621

Unavailable

13

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

14

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$18.13

14

DIAPHRAGM

45520-MA5-672

$18.13

15

BOOT, MASTER CYLINDER

45522-422-000

$8.68

16

LEVER, L. HANDLEBAR

53178-KE8-006

$24.77

16

LEVER, L. HANDLEBAR This part replaces 53178-MB0-006.

53178-KE8-006

$24.77

17

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

18

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

19

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

19

BOLT, OIL

90145-300-010

$9.68

19

BOLT, OIL This part replaces 90145-961-000.

90145-300-010

$9.68

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

22

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

22

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

23

SCREW-WASHER (4X12)

93893-04012-07

$1.49

23

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

24

NUT, FLANGE (6MM)

94050-06000

$1.49
