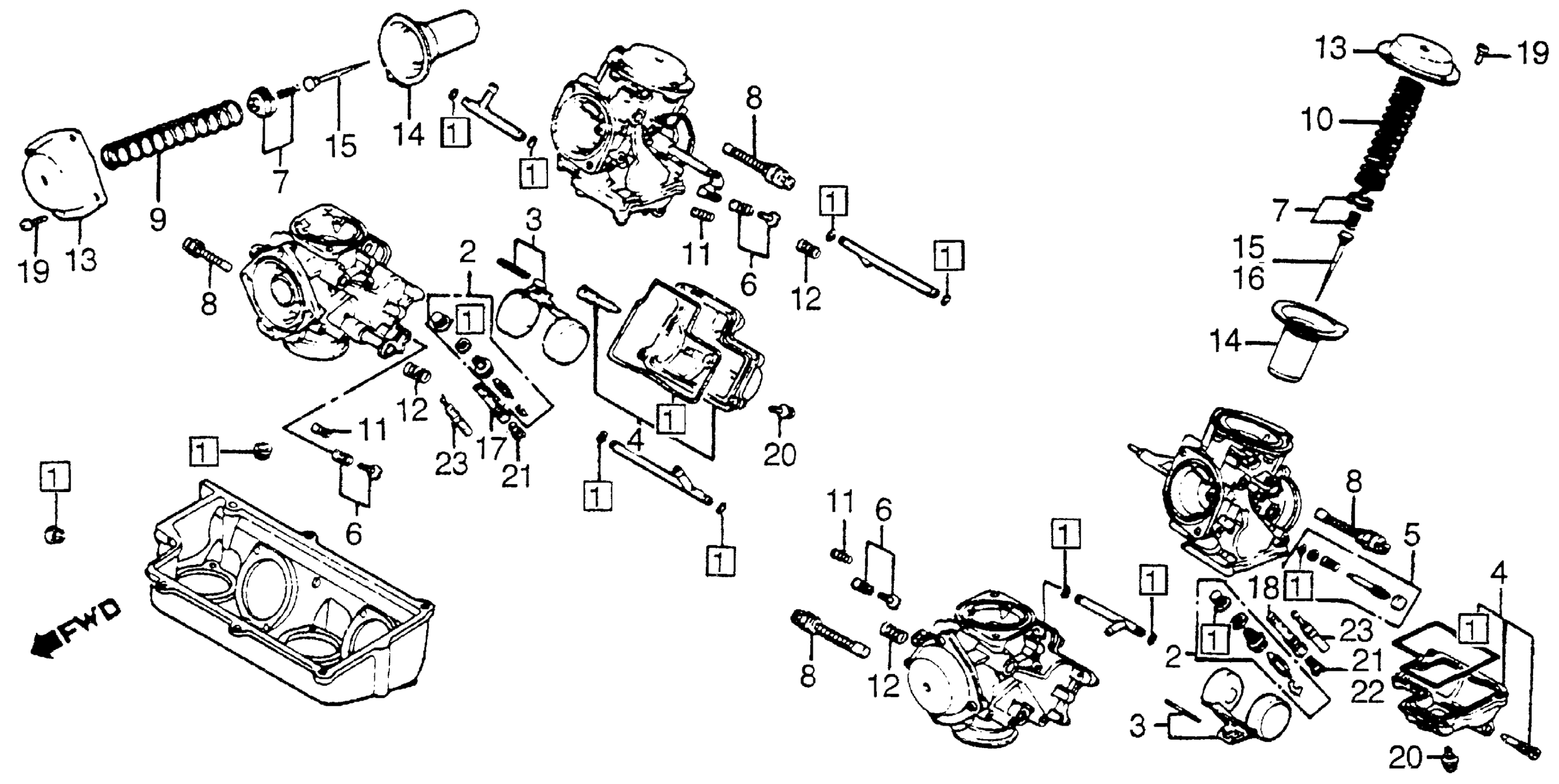

Honda VF750CA (83) V45 MAGNA, JPN, VIN# JH2RC071-DM100011 TO JH2RC071-DM122819 CARBURETOR COMP. PARTS Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MB0-671.

16010-MB0-505

$55.39

1

GASKET SET This part replaces 16010-MB0-871.

16010-MB0-505

$55.39

2

VALVE SET, FLOAT This part replaces 16011-MB0-671.

16011-MR6-671

$48.53

2

VALVE SET, FLOAT

16011-MR6-671

$48.53

3

FLOAT SET

16013-MB0-671

$50.57

4

CHAMBER SET, FLOAT

16015-MAH-750

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MB0-671.

16015-MAH-750

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MB0-871.

16015-MAH-750

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MN2-631.

16015-MAH-750

Unavailable

5

SCREW SET A This part replaces 16016-MB0-671.

16016-ME3-003

Unavailable

5

SCREW SET A

16016-ME3-003

Unavailable

5

SCREW SET A This part replaces 16016-MB1-771.

16016-ME3-003

Unavailable

5

SCREW SET A This part replaces 16016-ME9-004.

16016-ME3-003

Unavailable

5

SCREW SET A This part replaces 16016-ME9-671.

16016-ME3-003

Unavailable

6

SCREW SET C

16029-MB0-671

Unavailable

7

PLATE SET, VALVE This part replaces 16037-MB0-671.

16037-ME5-671

$27.28

8

VALVE SET, STARTER

16046-MA6-003

$72.34

9

SPRING, FR. VACUUM PISTON

16050-MB0-671

Unavailable

10

SPRING, RR. VACUUM PISTON

16051-MB0-671

Unavailable

11

SPRING

16052-MB0-671

$5.96

12

SPRING

16053-MB0-671

$9.46

13

TOP This part replaces 16107-MB0-671.

16108-MJ1-671

$37.19

13

TOP This part replaces 16108-ME5-671.

16108-MJ1-671

$37.19

13

TOP

16108-MJ1-671

$37.19

14

PISTON, VACUUM

16111-MB1-771

Unavailable

15

NEEDLE, FR. JET (NOT AVAILABLE)

16131-MB1-771

Unavailable

16

NEEDLE, RR. JET (NOT AVAILABLE)

16151-MB1-771

Unavailable

17

HOLDER, FR. NEEDLE JET

16165-MB1-771

$11.78

18

HOLDER, RR. JET NEEDLE (NOT AVAILABLE)

16167-MB0-671

$12.37

19

SCREW, PAN (4X10)

93500-04010-0A

$0.90

20

SCREW-WASHER (4X12)

93892-04014-00

$0.49

21

JET (#128) This part replaces 99101-GHB-1280.

99101-PH9-1280

$6.29

21

JET (#128) This part replaces 99101-393-1280.

99101-PH9-1280

$6.29

21

JET, MAIN (#138) This part replaces 99101-393-1380.

99101-KPE-1380

$11.75

21

JET (#128) This part replaces 99102-393-1280.

99101-PH9-1280

$6.29

21

JET, MAIN (#138) This part replaces 99102-393-1380.

99101-KPE-1380

$11.75

22

JET, MAIN (#132) This part replaces 99101-GHB-1320.

99101-KAS-1320

Unavailable

22

JET, MAIN (#132)

99101-KAS-1320

Unavailable

22

JET, MAIN (#132) This part replaces 99101-393-1320.

99101-KAS-1320

Unavailable

23

JET, SLOW (#40) This part replaces 99103-437-0400.

99103-MAL-0400

$10.35
