- VF750CA (83) V45 MAGNA, JPN, VIN# JH2RC071-DM100011 TO JH2RC071-DM122819
BRAKE PEDAL + GEARSHIFT PEDAL

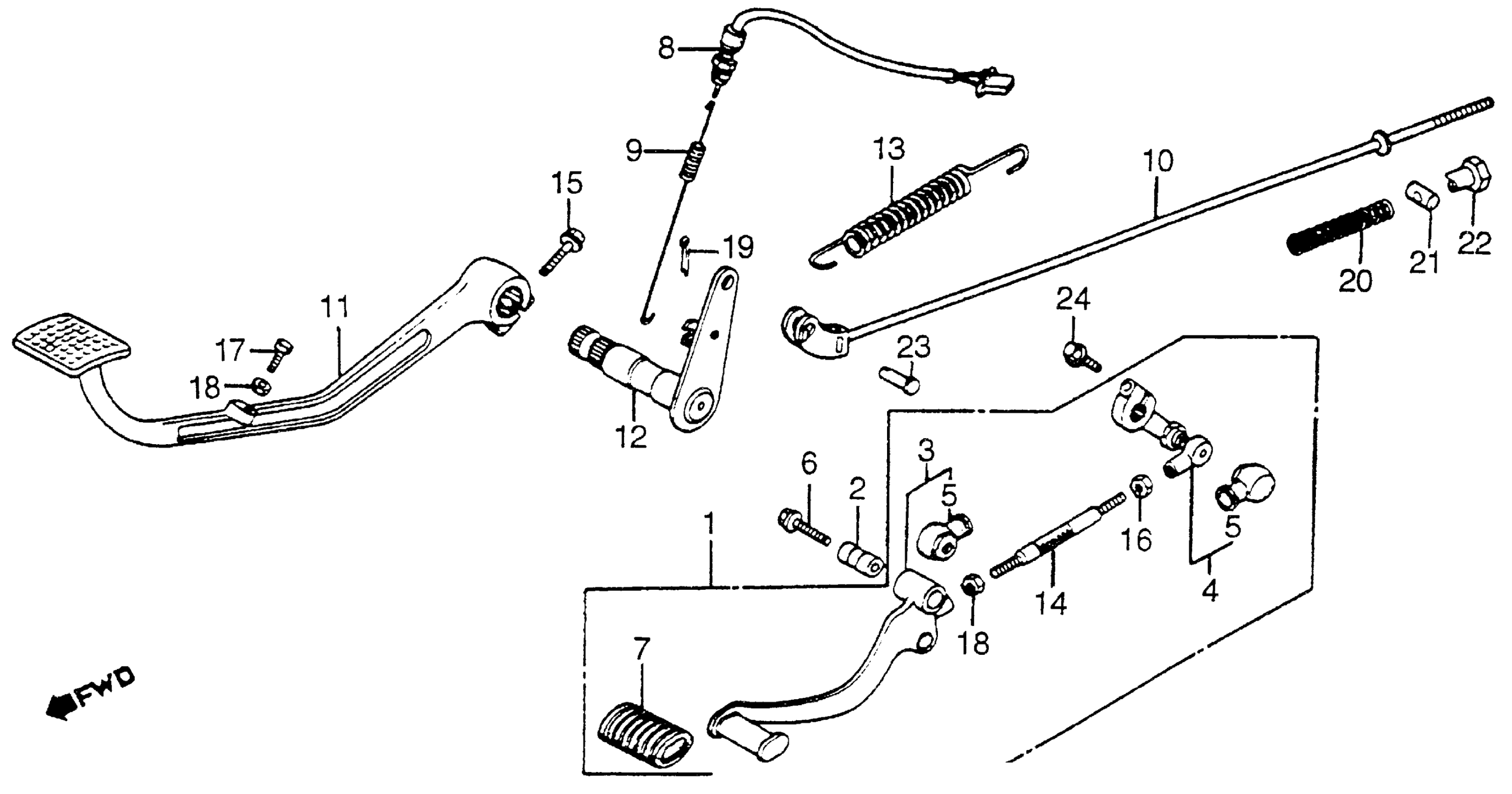

Honda VF750CA (83) V45 MAGNA, JPN, VIN# JH2RC071-DM100011 TO JH2RC071-DM122819 BRAKE PEDAL + GEARSHIFT PEDAL Diagram
#
Description
Price
1
PEDAL ASSY., GEARSHIFT (NOT AVAILABLE)
24700-MB1-700
Unavailable
2
COLLAR, GEARSHIFT PEDAL PIVOT
24705-MT6-000
Unavailable
3
PEDAL, GEARSHIFT (NOT AVAILABLE)
24720-MB1-700
Unavailable
4
ARM, GEARSHIFT
24721-MB1-000
Unavailable
6
BOLT, GEARSHIFT PEDAL PIVOT
24725-MB1-000
Unavailable
8
SWITCH ASSY., RR. STOP This part replaces 35350-MB0-000.
35350-ME9-405
Unavailable
8
SWITCH ASSY., RR. STOP
35350-ME9-405
Unavailable
8
SWITCH ASSY., RR. STOP This part replaces 35350-ME9-770.
35350-ME9-405
Unavailable
9
SPRING, STOP SWITCH
35357-MB1-000
Unavailable
10
ROD, RR. BRAKE (NOT AVAILABLE)
43451-MB1-000
Unavailable
11
PEDAL, RR. BRAKE (NOT AVAILABLE)
46500-MB1-000
Unavailable
11
PEDAL, RR. BRAKE (NOT AVAILABLE) This part replaces 46500-MB1-700.
46500-MB1-000
Unavailable
12
ARM, RR. BRAKE PEDAL MIDDLE
46513-MB1-000
Unavailable
13
SPRING, RR. BRAKE (NOT AVAILABLE) This part replaces 46514-MB1-000.
46514-MB1-020
Unavailable
13
SPRING, RR. BRAKE (NOT AVAILABLE)
46514-MB1-020
Unavailable
14
BOLT, TIE ROD (NOT AVAILABLE) This part replaces 90065-MB1-000.
90065-MK3-000
Unavailable
15
BOLT, SPECIAL FLANGE (8X30)
90179-422-000
Unavailable
17
BOLT, HEX. (6X20) This part replaces 92000-06020-0B.
92101-06020-0B
Unavailable
17
BOLT, HEX. (6X20) This part replaces 92000-06020-02.
92101-06020-0B
Unavailable
17
BOLT, HEX. (6X20) This part replaces 92018-06020-02.
92101-06020-0B
Unavailable
17
BOLT, HEX. (6X20)
92101-06020-0B
Unavailable
