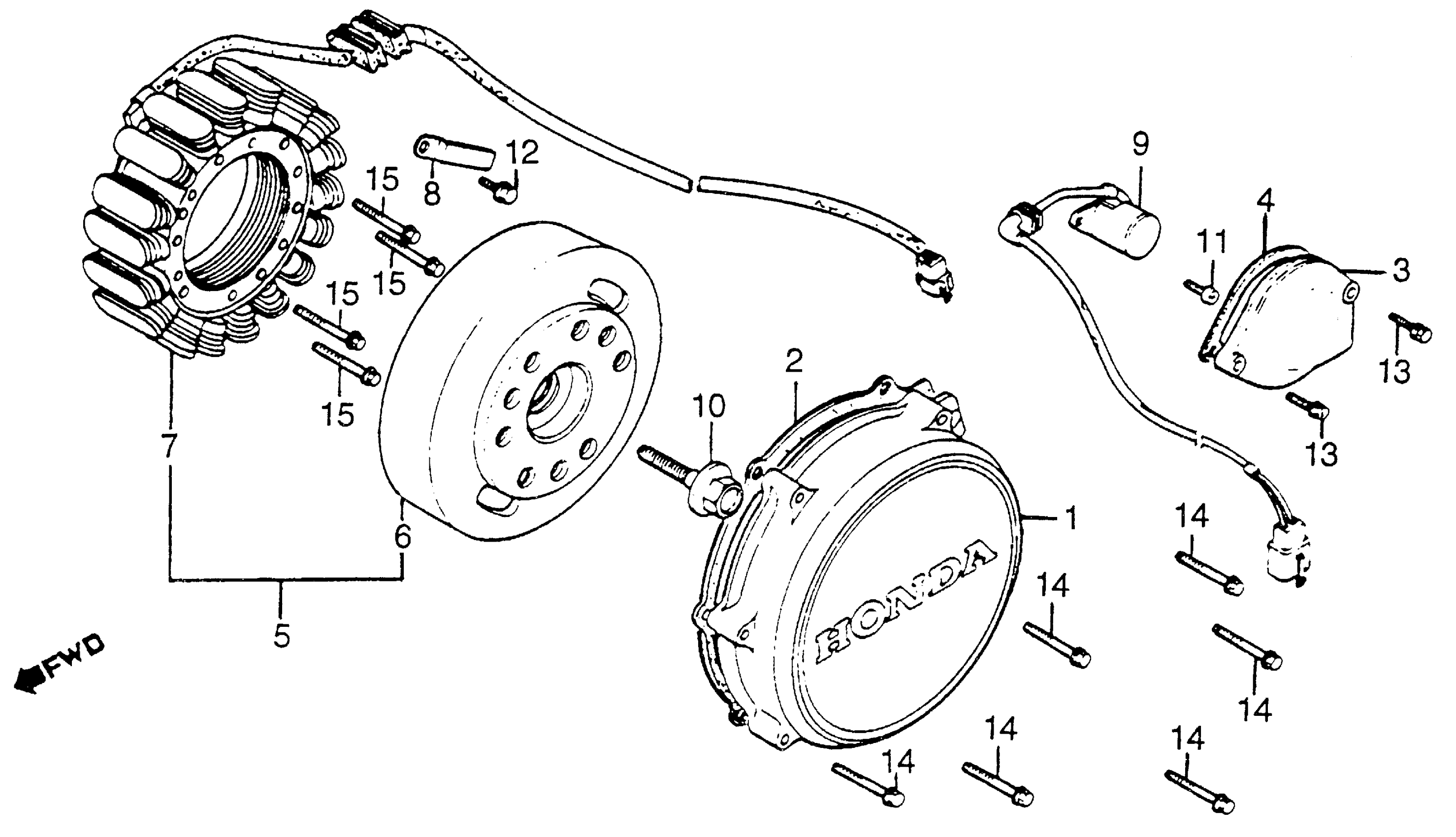

Honda VF750CA (83) V45 MAGNA, JPN, VIN# JH2RC071-DM100011 TO JH2RC071-DM122819 ALTERNATOR Diagram

#

Description
Price

1

COVER, ALTERNATOR This part replaces 11631-MB0-000.

11631-MB0-505

Unavailable

1

COVER, ALTERNATOR

11631-MB0-505

Unavailable

2

GASKET, ALTERNATOR COVER This part replaces 11636-MB0-000.

11636-MB0-306

Unavailable

2

GASKET, ALTERNATOR COVER

11636-MB0-306

Unavailable

3

COVER, INDICATOR SWITCH

11641-MB0-000

Unavailable

3

COVER, INDICATOR SWITCH

11641-MB0-770

Unavailable

4

GASKET, INDICATOR SWITCH COVER This part replaces 11642-MB0-000.

11642-MB0-306

Unavailable

4

GASKET, INDICATOR SWITCH COVER

11642-MB0-306

Unavailable

5

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-MB1-014

Unavailable

6

ROTOR (NOT AVAILABLE) This part replaces 31110-MB1-004.

31110-MB1-870

Unavailable

7

STATOR

31120-MB1-024

Unavailable

8

CLAMP, ALTERNATOR WIRE

31130-MB0-000

Unavailable

9

SWITCH ASSY., CHANGE (NOT AVAILABLE)

35759-MB1-000

Unavailable

10

BOLT, FLANGE (12X45) This part replaces 90023-HA7-670.

90024-MT3-000

Unavailable

10

BOLT, FLANGE (12X45) This part replaces 90023-428-000.

90024-MT3-000

Unavailable

10

BOLT, FLANGE (12X45)

90024-MT3-000

Unavailable

11

SCREW, PAN (6X12)

93500-06012-0A

$1.49

12

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

12

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

13

BOLT, FLANGE (6X20) This part replaces 96000-06020-07.

96001-06020-07

$1.49

13

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

14

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

14

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

15

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

15

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
