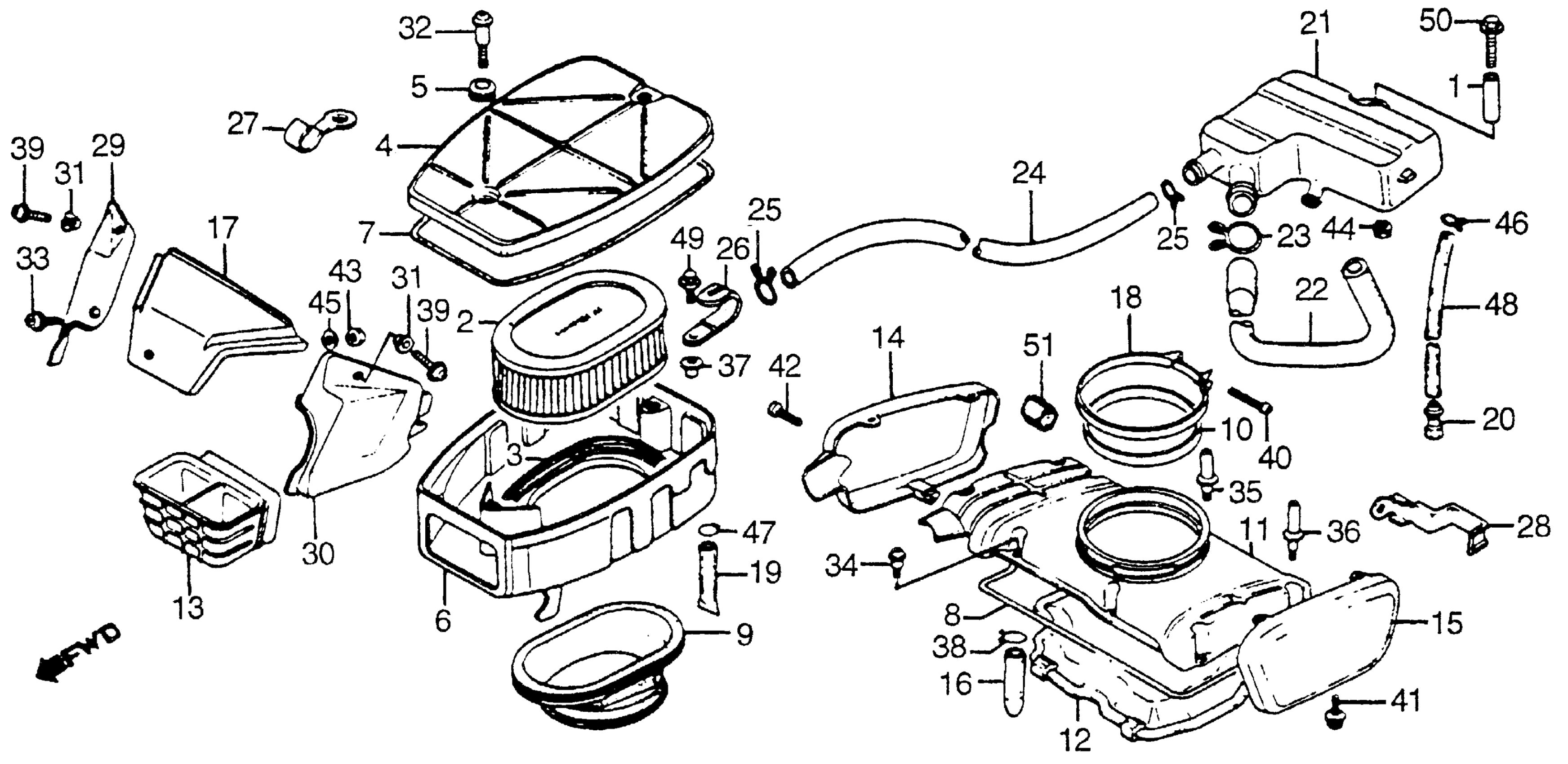

Honda VF750CA (83) V45 MAGNA, JPN, VIN# JH2RC071-DM100011 TO JH2RC071-DM122819 AIR CLEANER Diagram

COLLAR, AIR CLEANER BRACKET (NOT AVAILABLE)

17202-415-000

Unavailable

ELEMENT, AIR CLEANER

17210-MB1-000

Unavailable

GASKET, ELEMENT (NOT AVAILABLE)

17215-MB1-300

Unavailable

COVER, AIR CLEANER HOUSING (NOT AVAILABLE)

17220-MB1-700

Unavailable

GROMMET, AIR CLEANER HOUSING COVER (NOT AVAILABLE)

17221-MB1-000

Unavailable

HOUSING, AIR CLEANER (NOT AVAILABLE)

17230-MB1-700

Unavailable

SEAL, AIR CLEANER COVER This part replaces 17212-GJ5-000.

17222-MN4-405

$7.31

SEAL, AIR CLEANER COVER This part replaces 17212-GR1-000.

17222-MN4-405

$7.31

SEAL, AIR CLEANER COVER This part replaces 17212-KJ9-000.

17222-MN4-405

$7.31

SEAL, AIR CLEANER COVER This part replaces 17219-HB3-000.

17222-MN4-405

$7.31

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

SEAL, AIR CLEANER COVER This part replaces 17231-MB1-000.

17222-MN4-405

$7.31

SEAL, AIR CLEANER COVER This part replaces 17231-MB2-000.

17222-MN4-405

$7.31

SEAL, AIR CLEANER BASE (NA USE ALT:17222-MN4-405)

17232-MB1-000

Unavailable

TUBE, CHAMBER JOINT (NOT AVAILABLE)

17245-MB1-700

Unavailable

COVER, AIR CLEANER BASE (NOT AVAILABLE) | Use up to Frame SN DM122119 This part replaces 17251-MB1-700.

17251-MB1-701

Unavailable

COVER, AIR CLEANER BASE (NOT AVAILABLE)

17251-MB1-701

Unavailable

NET, AIR CLEANER BASE | Use from Frame SN DM122120

17252-MB1-700

Unavailable

DUCT, AIR CLEANER INLET (NOT AVAILABLE)

17254-MB1-670

Unavailable

COVER, R. AIR CLEANER CHAMBER

17255-MB1-000

Unavailable

COVER, L. AIR CLEANER CHAMBER

17256-MB1-000

Unavailable

TUBE, AIR CLEANER | Use up to Frame SN DM117080

17259-MB1-000

Unavailable

COVER, IN. DUCT

17260-MB1-000

Unavailable

BAND, CHAMBER JOINT TUBE (NOT AVAILABLE) This part replaces 17349-MB1-000.

17349-MK3-000

Unavailable

TUBE, DRAIN

17359-MA2-000

Unavailable

PLUG, BREATHER TUBE

17370-419-700

$3.74

TANK, STORAGE

17551-MB1-000

Unavailable

TUBE, BREATHER (NOT AVAILABLE)

17553-MB1-000

Unavailable

CLIP, BREATHER TUBE

17554-MB0-000

$2.97

TUBE, RETURN

17555-MB1-000

Unavailable

CLIP, AIR HOSE (16)

18534-634-670

$5.76

CLIP, WIRE HARNESS

32170-443-850

$5.05

CLAMP

91403-663-000

Unavailable

CLIP, CLUTCH CABLE (NOT AVAILABLE)

45469-399-000

Unavailable

GUIDE, BATTERY BREATHER TUBE

50527-MB1-000

Unavailable

COVER, R. FR. SIDE

61402-MB1-000

Unavailable

COVER, L. FR. SIDE (NOT AVAILABLE)

61403-MB1-000

Unavailable

COLLAR, SIDE COVER

61406-MB1-000

Unavailable

BOLT, AIR CLEANER COVER SETTING (NOT AVAILABLE)

90102-MB1-000

Unavailable

SCREW, SPECIAL (5X12)

90105-MB1-000

$2.92

SCREW, PAN (4X15)

90141-MB0-000

$3.67

SCREW A, AIR CLEANER BASE COVER FIXING (NOT AVAILABLE)

90141-MB1-000

Unavailable

SCREW B, AIR CLEANER BASE COVER FIXING (NOT AVAILABLE)

90142-MB1-000

Unavailable

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

CLIP, TUBE | Use up to Frame SN DM117080

90652-MB1-000

$1.49

SCREW, PAN (5X10)

93500-05010-0G

$1.49

SCREW, PAN (5X20)

93500-05020-0G

$1.49

SCREW-WASHER (4X12)

93892-04012-00

$1.49

SCREW-WASHER (4X16)

93892-04016-00

$1.49

NUT, HEX. (5MM)

94001-050800S

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (5MM)

94101-05800

$1.49

CLIP, TUBE (B12.5)

95002-02130

$1.49

CLIP, TUBE (C11)

95002-70000

$1.56

BULK HOSE, VINYL (8X12X8000) (8X12X250)

95003-23008-60M

Unavailable

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (6X32) This part replaces 95700-06032-08.

95701-06032-08

$1.89

BOLT, FLANGE (6X32)

95701-06032-08

$1.89

GROMMET, WATER PIPE (NOT AVAILABLE)

17258-MB1-010

Unavailable
