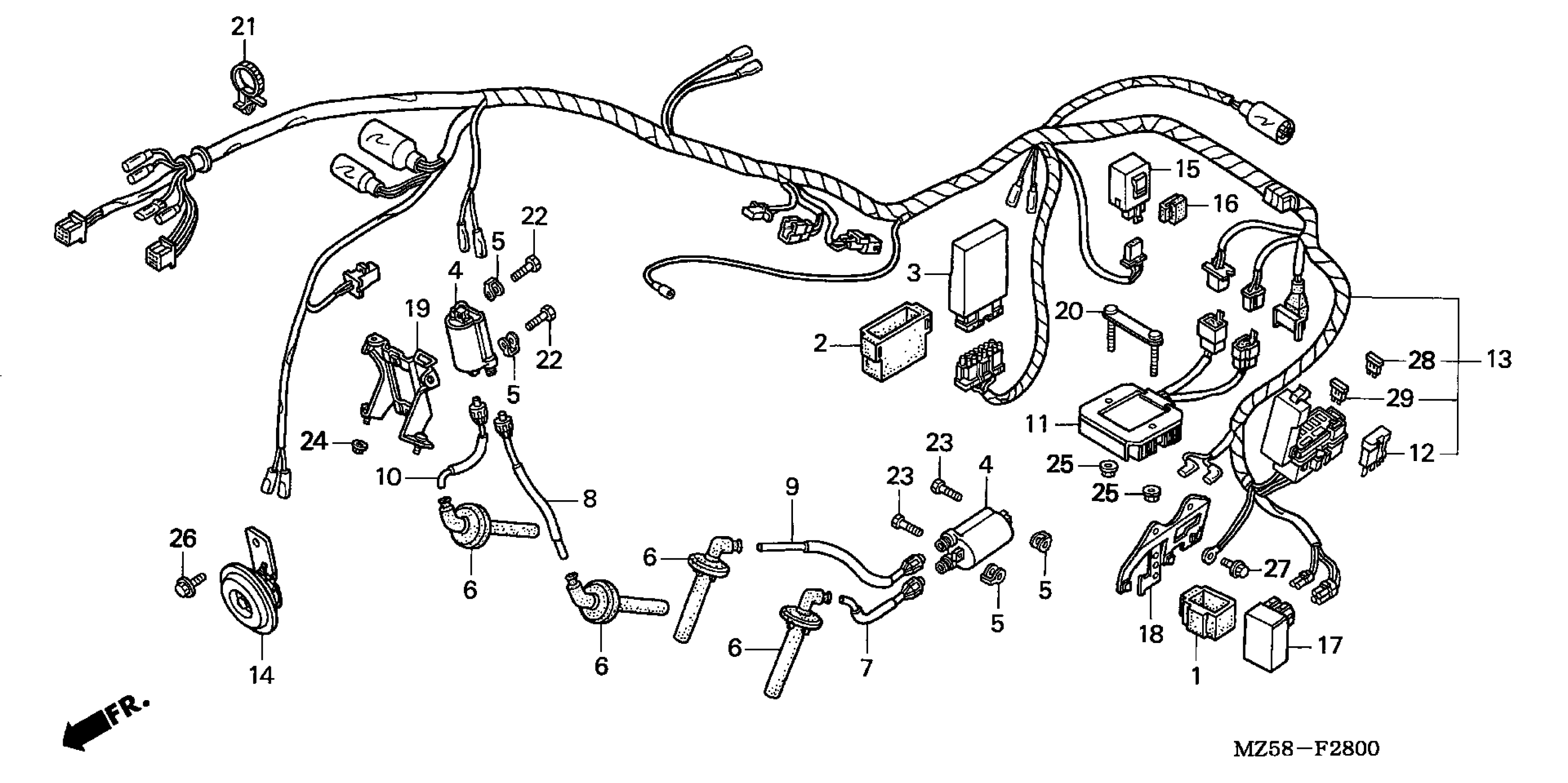

Honda VF750CA (03) MAGNA, JPN, VIN# JH2RC430-3M900001 WIRE HARNESS Diagram

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-GB6-000

$5.17

CUSHION, SPARK UNIT

30405-MT6-000

Unavailable

MODULE, IGNITION CONTROL (CDI)

30410-MZ5-671

Unavailable

COIL, IGNITION

30510-KT7-023

$142.15

SPACER, IGNITION COIL

30520-ML7-000

$3.77

CAP ASSY,NOISE SU This part replaces 30700-KAF-010.

30700-KAF-003

$37.16

WIRE 1, IGNITION

30731-MZ5-000

Unavailable

WIRE 2, IGNITION

30731-KEA-505

Unavailable

WIRE 2, IGNITION This part replaces 30732-MZ5-000.

30731-KEA-505

Unavailable

WIRE 3, IGNITION

30731-KEA-505

Unavailable

WIRE 2, IGNITION This part replaces 30733-MZ5-000.

30731-KEA-505

Unavailable

WIRE 4, IGNITION

30731-KEA-505

Unavailable

WIRE 2, IGNITION This part replaces 30734-MZ5-000.

30731-KEA-505

Unavailable

RECTIFIER ASSY., REGULATE

31600-MZ5-003

Unavailable

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MZ5-A80

$390.20

HORN (LOW)

38120-MZ5-003

Unavailable

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

INDICATOR UNIT, TEMPERATURE

38710-MZ5-003

Unavailable

BRACKET, RR. IGNITION COIL

50333-MZ5-000

Unavailable

BRACKET, FR. IGNITION COIL

50334-MZ5-000

$24.92

PLATE, REGULATE RECTIFIER

50336-MR1-000

$12.41

STRAP, CABLE (105MM) (BLACK)

90672-SB2-003

$5.47

BOLT, HEX. (6X22)

92101-06022-4J

$4.19

BOLT, HEX. (6X28)

92101-06028-4J

$4.70

NUT, FLANGE (6MM)

94050-06000

$1.49

NUT, FLANGE (6MM)

94050-06070

$1.49

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A)

98200-41500

$1.49
