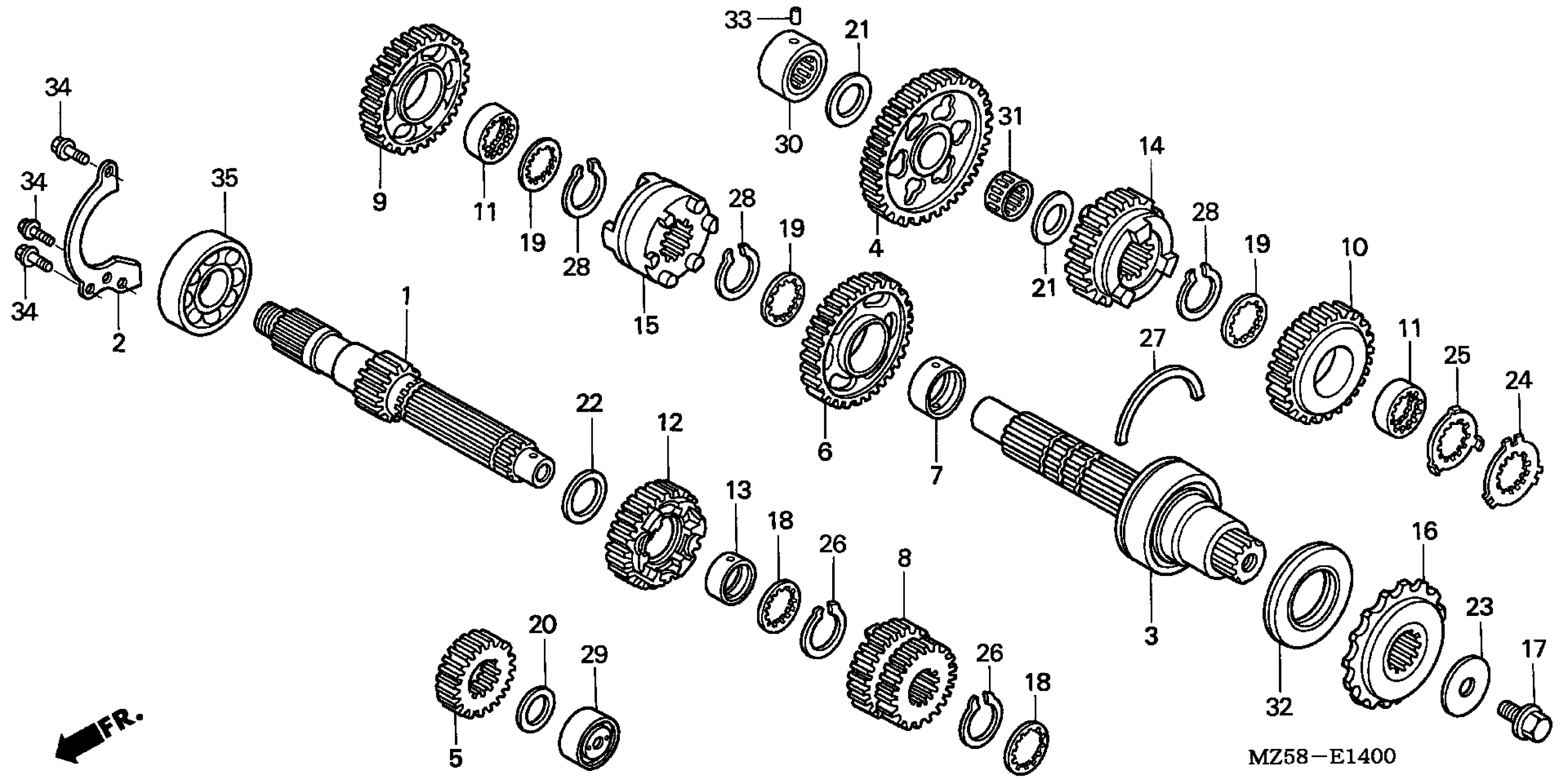

Honda VF750CA (03) MAGNA, JPN, VIN# JH2RC430-3M900001 TRANSMISSION Diagram

MAINSHAFT

23211-MZ5-920

Unavailable

PLATE, BEARING SETTING

23212-ML7-000

$12.21

COUNTERSHAFT

23220-MT4-000

Unavailable

GEAR, COUNTERSHAFT FIRST (37T)

23421-MBG-000

Unavailable

GEAR, MAINSHAFT SECOND (17T)

23431-MV8-900

Unavailable

GEAR, COUNTERSHAFT SECOND (32T)

23441-MV8-900

Unavailable

COLLAR (28MM)

23442-ML7-000

$27.93

GEAR, MAINSHAFT THIRD & FOURTH

23451-MZ5-000

Unavailable

GEAR, COUNTERSHAFT THIRD (29T)

23461-MV8-900

Unavailable

GEAR, COUNTERSHAFT FOURTH (27T)

23481-MV8-900

$120.59

COLLAR, SPLINE (28X13.5)

23482-MR7-000

$30.92

GEAR, MAINSHAFT FIFTH

23491-MZ5-010

Unavailable

COLLAR (25X12)

23495-MB0-000

$26.23

GEAR, COUNTERSHAFT FIFTH

23501-MZ5-920

$114.67

SHIFTER, COUNTERSHAFT SIXTH

23521-MV8-900

Unavailable

SPROCKET, DRIVE (16T)

23801-MCJ-000

Unavailable

SPROCKET, DRIVE (16T) This part replaces 23801-ML7-920.

23801-MCJ-000

Unavailable

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.81

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

WASHER, THRUST (20MM)

90454-428-000

$2.53

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

WASHER A, THRUST (22MM)

90456-ML7-000

$5.62

WASHER C, THRUST (22MM)

90457-ML7-000

$5.62

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

WASHER (10.2MM)

90459-438-000

$5.83

WASHER, SPLINE (28MM)

90463-MR7-000

$10.57

WASHER, LOCK (28MM)

90464-MR7-000

$10.57

CIRCLIP (25MM)

90601-107-000

$3.74

RING SET (68MM)

90602-MR7-000

$8.54

CIRCLIP (28MM) This part replaces 90602-MM5-000.

90603-MN4-000

$4.11

CIRCLIP (28MM)

90603-MN4-000

$4.11

BEARING, NEEDLE (20MM)

91022-MT4-000

$45.08

BEARING, NEEDLE (22MM)

91023-MZ5-003

$51.93

BEARING, NEEDLE (22X26X11)

91026-MB4-003

$14.48

OIL SEAL (40X68X7.2) This part replaces 91207-MR7-003.

91207-MW4-003

Unavailable

PIN B, DOWEL (8X10)

94302-08100

$2.14

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27
