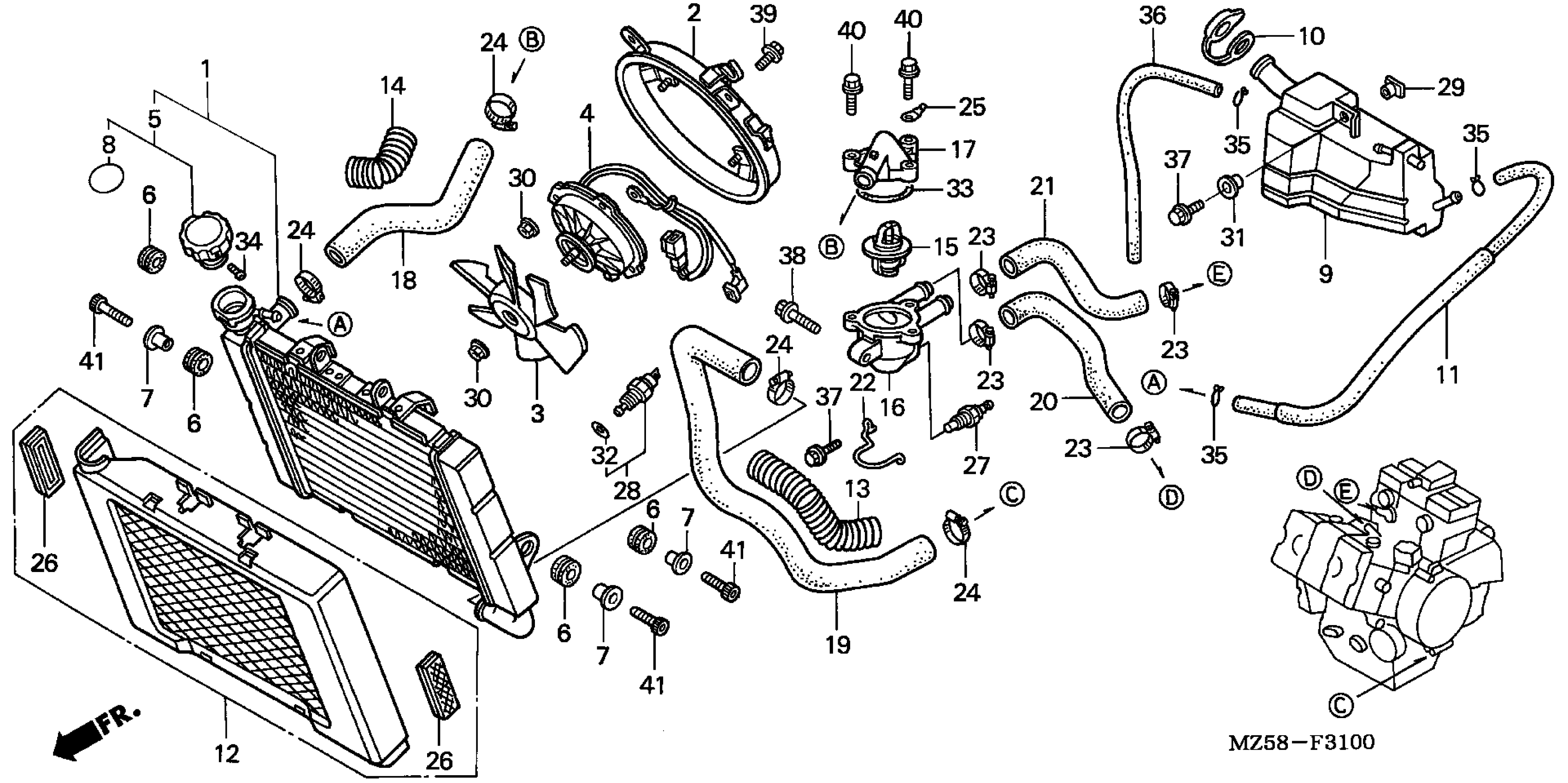

Honda VF750CA (03) MAGNA, JPN, VIN# JH2RC430-3M900001 RADIATOR Diagram

#

Description
Price

1

RADIATOR

19010-MZ5-P00

Unavailable

1

RADIATOR This part replaces 19010-MZ5-671.

19010-MZ5-P00

Unavailable

2

SHROUD

19015-MZ5-003

$71.54

3

FAN, COOLING (TOYO)

19025-MN4-003

Unavailable

4

MOTOR ASSY., FAN

19030-MZ5-003

Unavailable

5

CAP, RADIATOR

19045-MY3-621

$40.44

5

CAP, RADIATOR This part replaces 19045-MY3-671.

19045-MY3-621

$40.44

6

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

7

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

8

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$9.22

8

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) This part replaces 19055-MV9-921.

19055-MV9-881

$9.22

9

TANK, RESERVE

19101-MZ5-000

Unavailable

10

CAP, RESERVE TANK

19104-MB0-700

$12.16

11

TUBE, RESERVE TANK

19106-MZ5-000

Unavailable

12

GRILLE, RADIATOR

19112-MZ5-670

Unavailable

13

PROTECTOR, RADIATOR HOSE (LOWER)

19120-MZ5-910

Unavailable

14

PROTECTOR, RADIATOR HOSE (UPPER)

19121-MZ5-910

Unavailable

15

THERMOSTAT ASSY.

19300-ML7-003

$49.22

16

COVER, THERMOSTAT

19311-MZ5-000

Unavailable

17

COVER, THERMOSTAT

19315-MV9-670

$60.92

18

HOSE, RADIATOR (UPPER)

19500-MZ5-000

Unavailable

19

HOSE, RADIATOR (LOWER)

19501-MZ5-000

Unavailable

20

HOSE, FR. CYLINDER HEAD WATER

19502-MZ5-000

Unavailable

21

HOSE, RR. HEAD WATER

19503-MZ5-000

Unavailable

22

GUIDE, WATER HOSE

19504-MZ5-000

Unavailable

23

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

24

CLAMP, HOSE (30-37MM)

19516-GAG-003

$14.40

25

CONNECTOR, GROUND

32152-MB3-000

$1.93

26

REFLECTOR SET, FR. REFLEX

33745-MBA-670

$28.16

27

THERMO UNIT (DENSO)

37750-PC1-004

$81.34

28

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$71.91

29

NUT, SPECIAL (6X7)

61304-958-003

$3.24

30

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

31

WASHER

90556-MB4-000

$2.61

32

O-RING (13.5X1.4)

91307-PH7-660

$2.83

32

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

33

O-RING (45.5X2.5) (ARAI)

91373-733-003

$4.03

34

SCREW, TAPPING (3X8)

93901-22180

$1.49

35

CLIP, TUBE (B10)

95002-02100

$1.90

36

BULK HOSE, VACUUM (5.5X3000) (5.3X470)

95005-55003-20M

$34.09

37

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

38

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

39

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

40

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

41

BOLT, SOCKET (6X25)

96600-06025-07

$2.25
