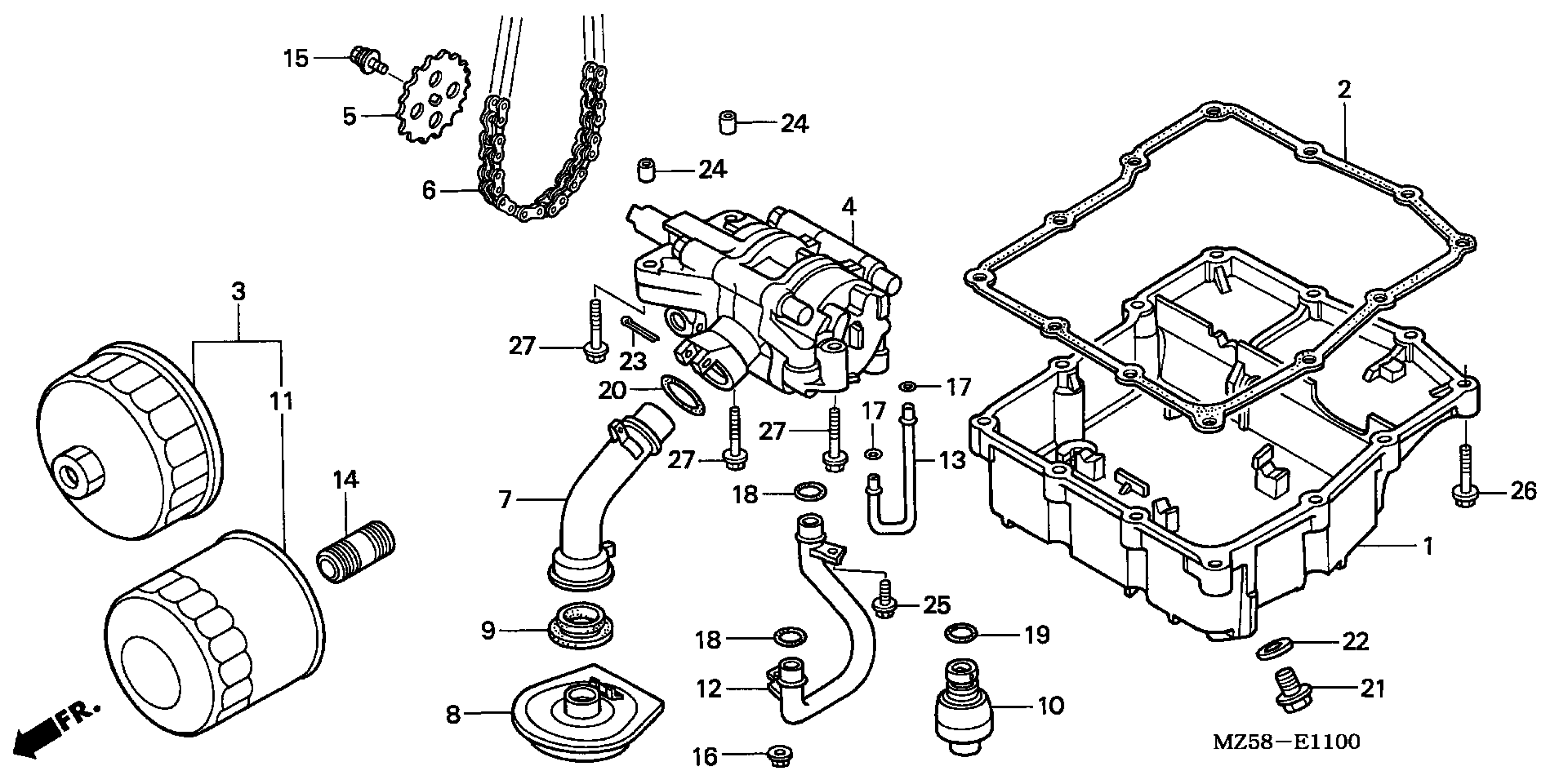

Honda VF750CA (03) MAGNA, JPN, VIN# JH2RC430-3M900001 OIL PUMP Diagram

PAN, OIL

11211-MZ5-000

Unavailable

GASKET, OIL PAN

11315-MY7-000

Unavailable

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

FILTER SET, OIL | (Optional). This part replaces 15010-MW0-000.

15010-MKR-305

$20.30

PUMP ASSY., OIL

15100-MZ5-770

Unavailable

SPROCKET, OIL PUMP DRIVEN (25T)

15134-MZ5-000

$38.52

CHAIN, OIL PUMP (48L)

15140-ML7-003

$35.67

PIPE, OIL STRAINER

15151-ML7-000

Unavailable

STRAINER, OIL

15153-ML7-690

Unavailable

GASKET, OIL STRAINER

15154-ML7-000

Unavailable

VALVE ASSY., RELIEF

15220-MZ5-000

$35.79

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$15.84

PIPE A, OIL

15511-MZ5-000

Unavailable

PIPE B, OIL

15512-ML7-000

Unavailable

BOSS, OIL FILTER

90019-MB0-000

$8.61

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

NUT, U (6MM)

90301-473-003

$4.07

O-RING (6X2) (NOK)

91307-ML7-004

$2.90

O-RING (14.6X3.6) (NOK)

91308-MA6-005

$4.19

O-RING (14.6X3.6) (NOK) This part replaces 91309-MB0-003.

91308-MA6-005

$4.19

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

O-RING (14.8X2.2)

91313-MG7-004

$3.67

O-RING (21.2X2.4) (ARAI)

91331-PC9-003

$3.13

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, SPLIT (2.0X35)

94201-20350

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
