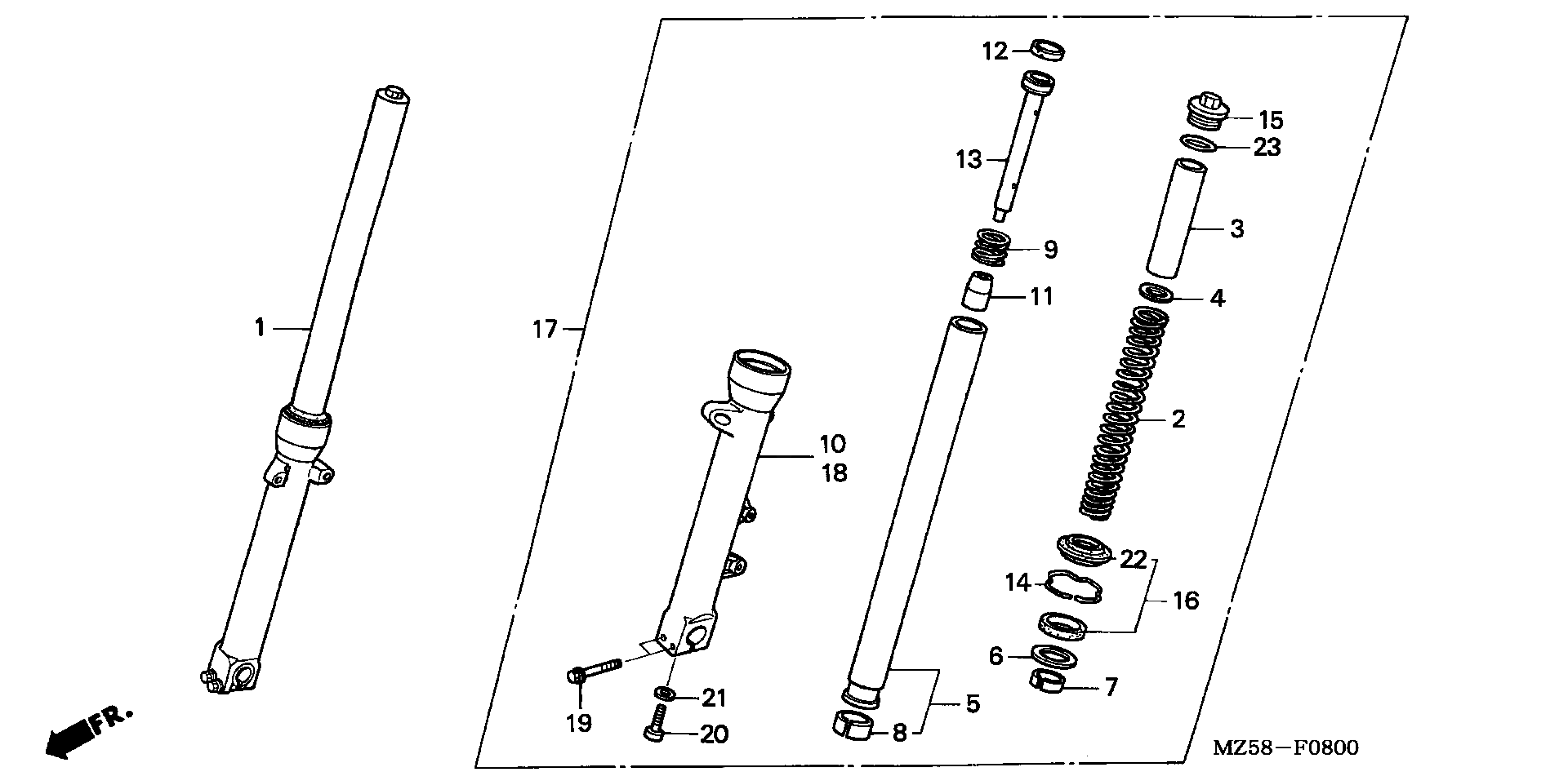

Honda VF750CA (03) MAGNA, JPN, VIN# JH2RC430-3M900001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-MZ5-912

Unavailable

2

SPRING, FR. FORK

51401-MZ5-671

Unavailable

3

COLLAR, SPRING (SHOWA)

51402-KV3-701

$24.00

4

SEAT, SPRING

51403-KF0-003

$4.78

5

PIPE, FR. FORK

51410-MZ5-671

Unavailable

6

RING, BACK-UP

51412-MB4-003

$9.65

7

BUSH, GUIDE (SHOWA)

51414-KCR-003

$14.02

7

BUSH, GUIDE (SHOWA) This part replaces 51414-MN5-003.

51414-KCR-003

$14.02

8

BUSH, SLIDER (SHOWA)

51415-KCR-003

$12.27

8

BUSH, SLIDER (SHOWA) This part replaces 51415-MM8-003.

51415-KCR-003

$12.27

9

SPRING, FR. REBOUND

51416-KF0-003

$7.28

10

CASE, R. (LOWER)

51420-MZ5-912

$473.31

11

PIECE, OIL LOCK

51432-MV9-003

$24.82

12

RING, PISTON

51437-MM5-003

$5.31

13

PIPE, SEAT

51440-MZ5-671

Unavailable

14

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

15

BOLT, FR. FORK

51454-MM9-671

$38.35

16

SEAL SET, FR. FORK

51490-MN8-305

$35.20

17

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-MZ5-912

Unavailable

18

CASE, L. (LOWER)

51520-MZ5-912

$257.78

19

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

20

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

21

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

22

DUST SEAL

91254-MM8-003

$17.88

23

O-RING (33.2X2.4)

91356-KF0-003

$3.76
