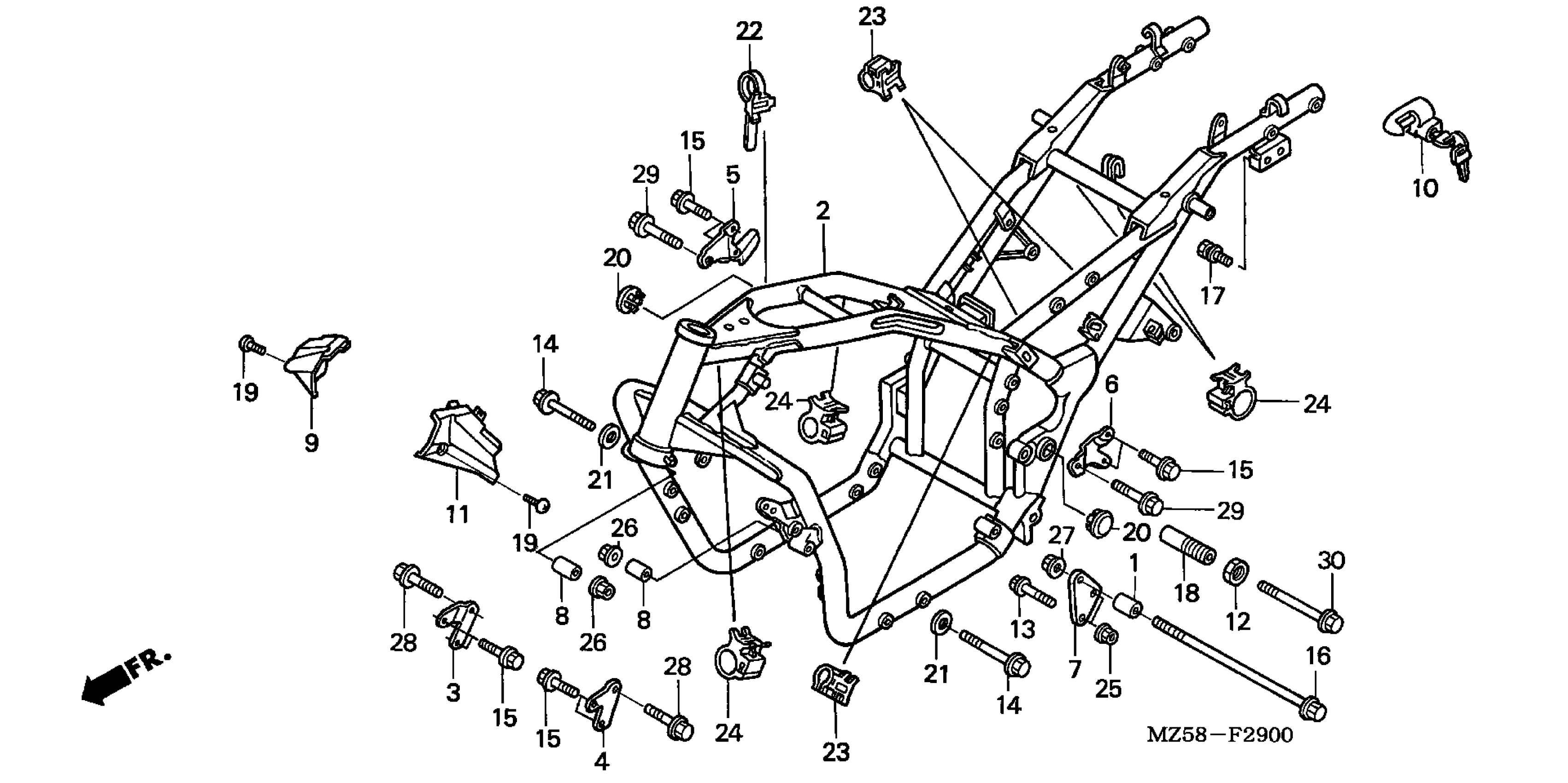

Honda VF750CA (03) MAGNA, JPN, VIN# JH2RC430-3M900001 FRAME Diagram

#

Description
Price

1

COLLAR, FR. WHEEL SIDE

44311-045-670

$5.08

2

FRAME

50100-MZ5-910

$2,643.80

3

PLATE, R. FR. ENGINE HANGER

50136-MZ5-000

Unavailable

4

PLATE, L. FR. ENGINE HANGER

50137-MZ5-000

Unavailable

5

PLATE, R. RR. ENGINE HANGER

50138-MZ5-000

Unavailable

6

PLATE, L. RR. ENGINE HANGER

50139-MZ5-000

Unavailable

7

PLATE, RR. ENGINE HANGER (LOWER)

50141-MZ5-000

Unavailable

8

COLLAR, ENGINE HANGER

50350-MZ5-000

Unavailable

9

COVER, R. FR. SIDE

50650-MZ5-000

Unavailable

10

HOLDER ASSY., HELMET (HONDALOCK)

50710-GB4-007

$74.08

11

COVER, L. FR. SIDE

50750-MZ5-000

Unavailable

12

NUT, ACCUMULATOR

57071-SB0-800

Unavailable

13

BOLT, UBS (8X60)

90029-MG8-000

Unavailable

14

BOLT, FLANGE (10X105)

90101-MZ5-000

Unavailable

15

BOLT, FLANGE (8X25)

90103-MZ5-000

$4.75

16

BOLT, FLANGE (12X265)

90105-MM8-880

Unavailable

17

BOLT, HELMET HOLDER SETTING

90107-MJ1-000

$5.43

18

BOLT, PIVOT ADJUSTING

90116-MZ5-000

$31.74

19

SCREW, TRUSS (METER VISOR)

90133-SD4-000

$1.97

20

CAP, LOCK NUT

90302-ME5-000

$19.37

21

WASHER, PLAIN (10MM) This part replaces 90503-MZ5-000.

94102-10700

$1.49

21

WASHER, PLAIN (10MM)

94102-10700

$1.49

22

CLIP, HARNESS BAND (15)

90690-GHB-601

$2.26

23

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

24

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

25

NUT, FLANGE (8MM)

94050-08070

$1.49

26

NUT, FLANGE (10MM)

90303-428-900

$3.35

26

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

27

NUT, FLANGE (12MM)

94050-12000

$1.49

28

BOLT, FLANGE (10X35)

95701-10035-07

$2.07

29

BOLT, FLANGE (10X40)

95701-10040-02

Unavailable

30

BOLT, FLANGE (10X85)

95701-10085-00

$2.67
