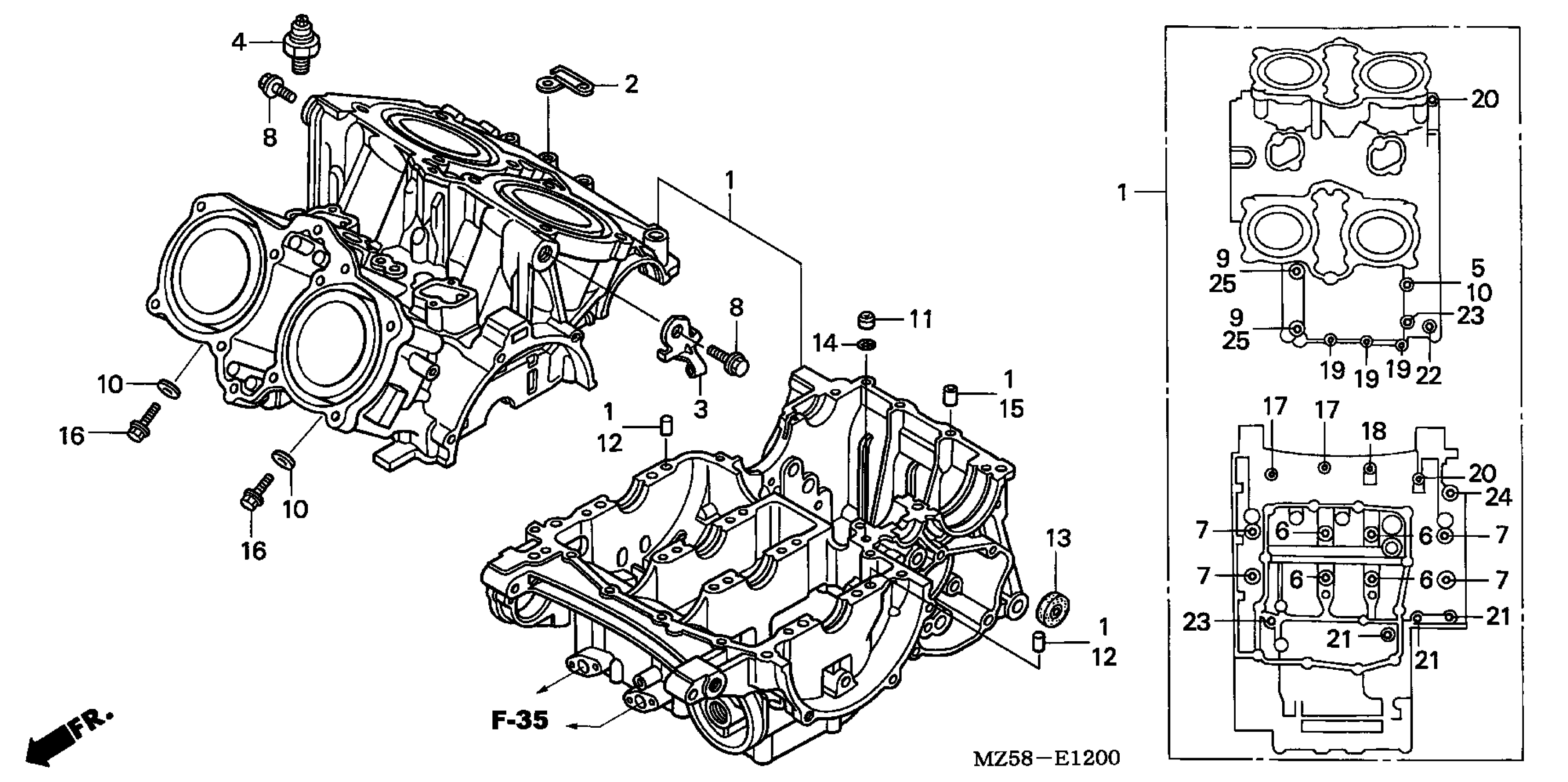

Honda VF750CA (03) MAGNA, JPN, VIN# JH2RC430-3M900001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11000-MZ5-000

$2,909.26

2

GUIDE, HOSE

11337-MZ5-000

Unavailable

3

RECEIVER, CLUTCH CABLE

22821-MZ5-000

Unavailable

4

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

5

BOLT, FLANGE (6X96)

90003-PC9-000

$7.74

6

BOLT, UBS (9X88)

90014-ML7-000

$10.79

7

BOLT, UBS (9X108)

90016-ML7-000

$12.82

8

BOLT, FLANGE (10X20)

90130-126-900

$4.49

9

WASHER, SEALING (10MM)

90403-MG7-000

$3.26

10

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

11

ORIFICE (LOWER) (1.0)

90701-ML7-000

Unavailable

12

PIN, DOWEL (10X16)

90701-MV9-670

$4.30

13

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

14

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

14

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

14

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

15

PIN, DOWEL (8X14)

94301-08140

$2.25

16

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

17

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

18

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

19

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

20

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

20

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

21

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

22

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

23

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

24

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

25

BOLT, FLANGE (10X90)

95701-10090-00

$3.31
