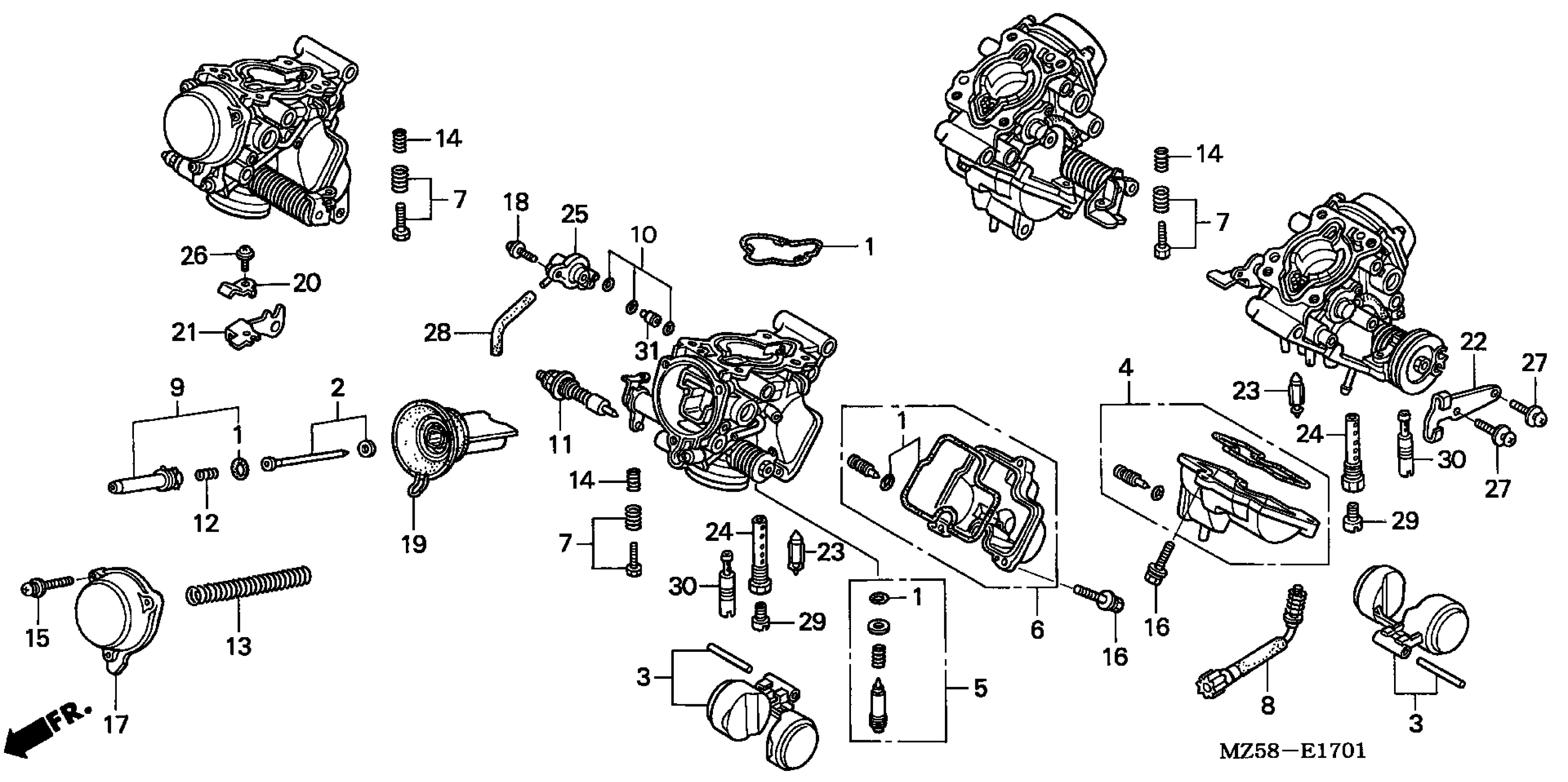

Honda VF750CA (03) MAGNA, JPN, VIN# JH2RC430-3M900001 CARBURETOR (COMPONENT PARTS) Diagram

#

Description
Price

1

GASKET SET A This part replaces 16010-MZ5-600.

16010-MZ5-920

$33.58

1

GASKET SET A

16010-MZ5-920

$33.58

2

NEEDLE SET, JET

16012-MZ5-670

Unavailable

3

FLOAT SET This part replaces 16013-MY1-000.

16013-MZ1-790

$48.75

3

FLOAT SET

16013-MZ1-790

$48.75

4

CHAMBER SET, FLOAT (#1) This part replaces 16015-MV9-670.

16015-MZ2-E00

Unavailable

5

SCREW SET

16016-MAS-670

$23.15

5

SCREW SET This part replaces 16016-MV9-730.

16016-MAS-670

$23.15

6

CHAMBER SET, FLOAT (#3) This part replaces 16023-MV9-670.

16043-MZ2-E00

Unavailable

7

SCREW SET

16028-MZ5-600

Unavailable

8

SCREW SET

16029-MZ5-600

Unavailable

9

PLATE SET, VALVE This part replaces 16037-MV4-000.

16037-MY5-850

Unavailable

9

PLATE SET, VALVE

16037-MY5-850

Unavailable

10

GASKET SET C

16041-MZ5-600

$16.54

11

VALVE SET, STARTER This part replaces 16046-MV9-670.

16046-MY5-850

Unavailable

11

VALVE SET, STARTER

16046-MY5-850

Unavailable

12

SPRING, COMPRESSION COIL

16051-MV4-000

$18.27

13

SPRING, COMPRESSION COIL

16051-MZ5-600

Unavailable

14

SPRING, COMPRESSION COIL

16052-MV4-000

Unavailable

15

SCREW-WASHER

16080-MV4-000

$2.35

16

BOLT-WASHER (5X16)

16082-PH9-005

Unavailable

17

TOP

16107-MZ5-671

Unavailable

18

SCREW

16108-MW0-750

$2.32

19

PISTON, VACUUM

16111-MZ5-600

Unavailable

20

PLATE, STAY

16119-MZ2-600

Unavailable

21

PLATE, STAY

16119-MZ5-600

Unavailable

22

STAY, WIRE

16119-MZ5-670

Unavailable

23

VALVE, FLOAT

16155-MN9-004

$27.86

24

HOLDER, NEEDLE JET

16165-MN4-013

Unavailable

25

VALVE ASSY., AIR CUT

16510-MZ2-650

$83.13

26

SCREW-WASHER (4X10)

93892-04010-00

$0.85

26

SCREW-WASHER (4X10) This part replaces 93892-04010-10.

93892-04010-00

$0.85

27

SCREW-WASHER (5X10)

93892-05010-00

$0.54

27

SCREW-WASHER (5X10) This part replaces 93892-05010-10.

93892-05010-00

$0.54

28

BULK HOSE, VACUUM (3.5X1000) (3.5X60)

95005-35001-20M

$11.17

29

JET, MAIN (#102)

99101-GHB-1020

$6.11

29

JET, MAIN (#102) This part replaces 99101-393-1020.

99101-GHB-1020

$6.11

30

JET, SLOW (#40)

99103-MT2-0400

$11.26

31

JET (#110)

99108-MY1-1100

Unavailable
