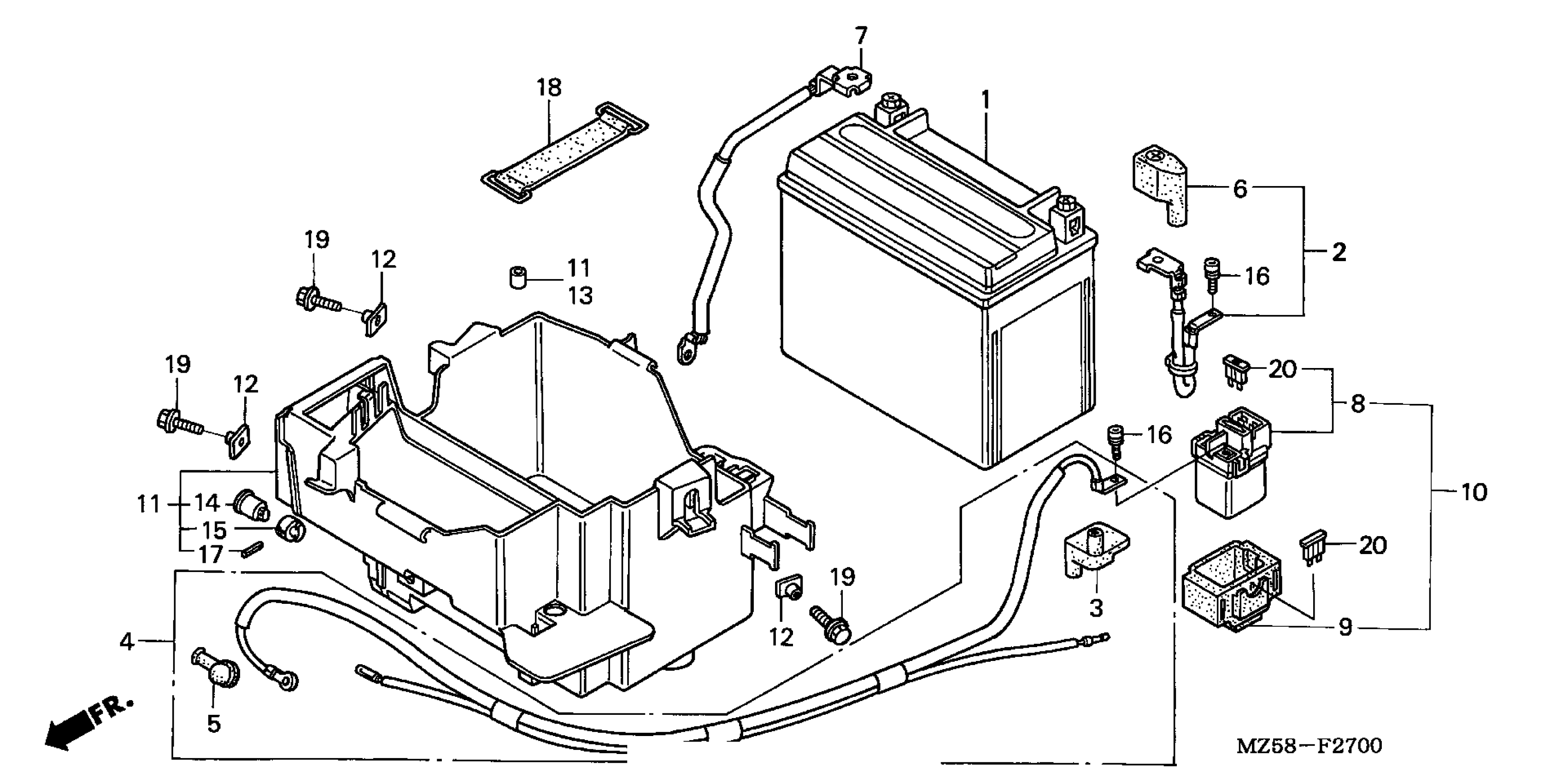

Honda VF750CA (03) MAGNA, JPN, VIN# JH2RC430-3M900001 BATTERY Diagram

#

Description
Price

1

BATTERY (YTX12-BS) This part replaces 31500-HA0-686.

31500-HS0-AK1AH

Unavailable

1

BATTERY (YTX12-BS) This part replaces 31500-HF1-677.

31500-HS0-AK1AH

Unavailable

1

BATTERY (YTX12-BS) This part replaces 31500-HF1-678.

31500-HS0-AK1AH

Unavailable

1

BATTERY (YTX12-BS) This part replaces 31500-KM1-837.

31500-HS0-AK1AH

Unavailable

2

CABLE, STARTER BATTERY

32401-MZ5-000

Unavailable

3

COVER, STARTER MAGNETIC TERMINAL

32406-MZ5-000

$5.59

4

CABLE, STARTER MOTOR

32410-MZ5-000

Unavailable

5

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

5

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

6

COVER, BATTERY TERMINAL

32414-MZ5-000

$5.25

7

CABLE, BATTERY GROUND

32601-MZ5-000

Unavailable

8

SWITCH ASSY., STARTER MAGNETIC

35850-MR5-007

$120.16

9

RUBBER, SHOCK ABSORBER

35856-MR5-000

$9.74

10

MAGNETIC SWITCH SET, STARTER

35860-MR5-000

Unavailable

11

BOX ASSY., BATTERY

50330-MZ5-000

Unavailable

12

NUT, SPECIAL (6X7)

61304-958-003

$3.24

13

COLLAR A, RR. FENDER

80108-061-010

$4.12

14

BODY, KEY

83507-422-000

$3.53

15

STOPPER, KEY BODY

83508-KBG-000

$2.90

15

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.90

16

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

17

PIN, SPRING (2X14)

94305-20141

$1.49

18

BAND F, BATTERY (155MM)

95012-17001

$7.23

19

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

20

FUSE, BLADE (30A)

98200-33000

$1.49
