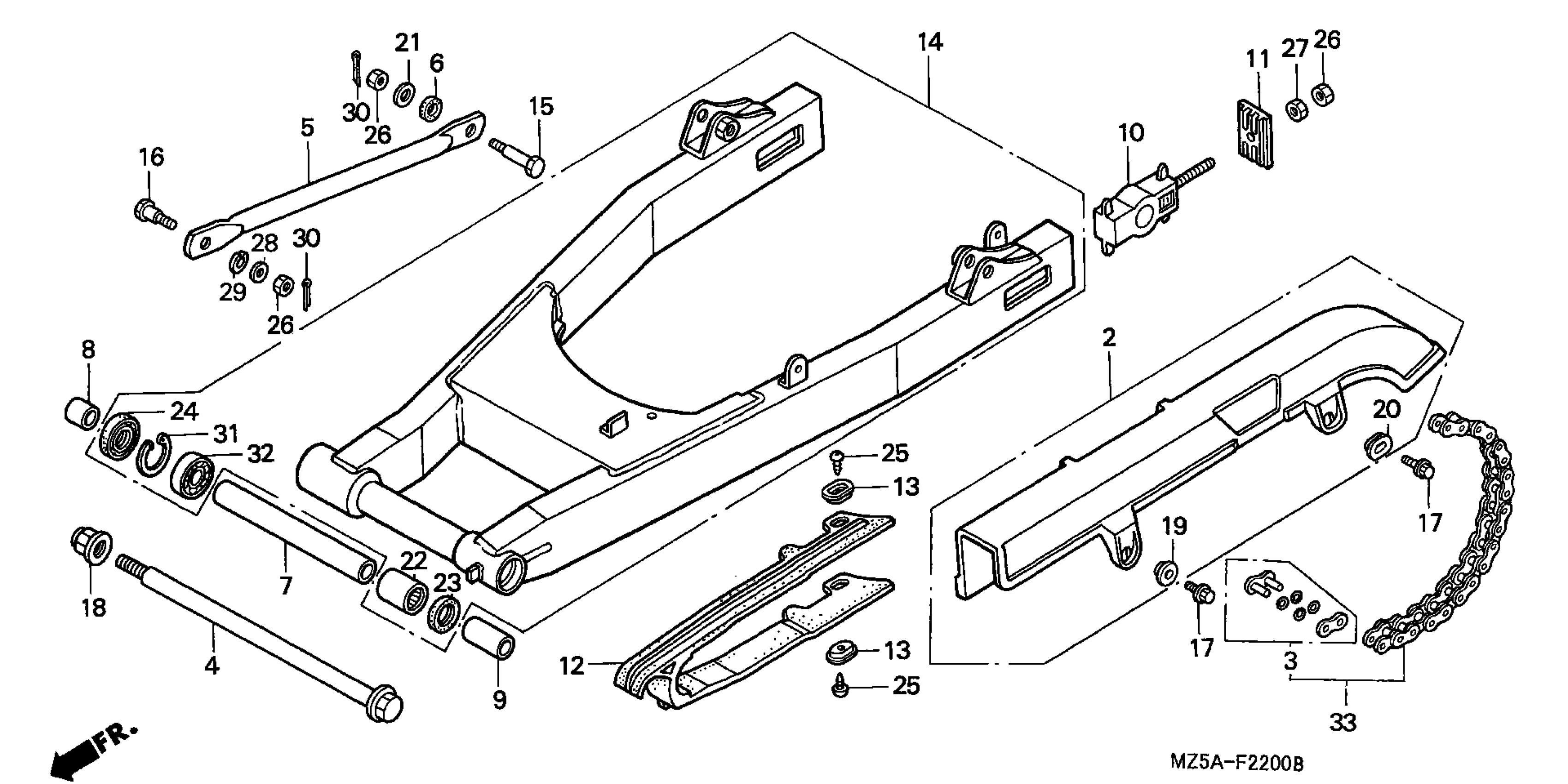

Honda VF750CA (02) MAGNA, JPN, VIN# JH2RC430-2M800001 SWINGARM Diagram

#

Description
Price

2

CASE, DRIVE CHAIN

40510-MZ5-000

Unavailable

3

MASTER LINK

40535-MW0-305

Unavailable

3

MASTER LINK

40535-MW0-306

Unavailable

4

AXLE, RR. WHEEL

42301-KBG-000

Unavailable

5

ARM, RR. BRAKE STOPPER

43431-MZ5-000

Unavailable

6

RUBBER, STOPPER ARM

43434-ME1-670

$3.47

7

COLLAR, PIVOT DISTANCE

52102-MM5-000

Unavailable

8

COLLAR B, SWINGARM PIVOT

52105-MM2-670

Unavailable

9

COLLAR B, PIVOT

52106-ML4-000

Unavailable

10

COLLAR, CHAIN TENSIONER

52120-MJ0-010

Unavailable

11

PLATE, CHAIN TENSIONER

52121-MJ0-000

$22.28

12

SLIDER, CHAIN

52170-MZ5-000

Unavailable

13

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

14

SWINGARM SET

52200-MZ5-305

$787.33

15

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

16

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

17

BOLT, FLANGE (6X12)

90154-ML0-000

$2.56

18

NUT, U (14MM)

90305-GE8-003

$3.86

19

WASHER (6X20)

90512-KF9-900

$3.06

20

WASHER (6X9)

90513-405-000

$2.09

20

WASHER (6X9) This part replaces 90513-428-900.

90513-405-000

$2.09

21

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

22

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$36.85

23

OIL SEAL (22X31X5) (ARAI)

91205-965-003

$5.80

24

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$7.46

25

SCREW, TAPPING (5X12)

93901-25280

$1.49

26

NUT, HEX. (8MM)

94001-08000-0S

$1.49

27

NUT, HEX. (8MM)

94030-08000

$1.49

28

WASHER, PLAIN (8MM)

94101-08000

$1.49

29

WASHER, SPRING (10MM)

94111-10000

$1.49

30

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

30

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

30

PIN, SPLIT (2.0X22)

94201-20220

$1.49

30

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

30

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

30

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

30

PIN, COTTER (2.0X35)

94201-20350

$1.49

30

PIN, COTTER (2.0X22)

94201-29220

$1.49

31

CIRCLIP, INNER (35MM)

94520-35000

$1.84

32

BEARING, RADIAL BALL (6202)

96100-62020-10

$14.49

33

CHAIN SET, DRIVE (DID50V4-112L-120L) (DAIDO)

06405-MZ5-P00

Unavailable

33

CHAIN SET, DRIVE (RK50M FOZ1) (102L-120L) (RK EXCEL)

06405-MZ5-P20

Unavailable
