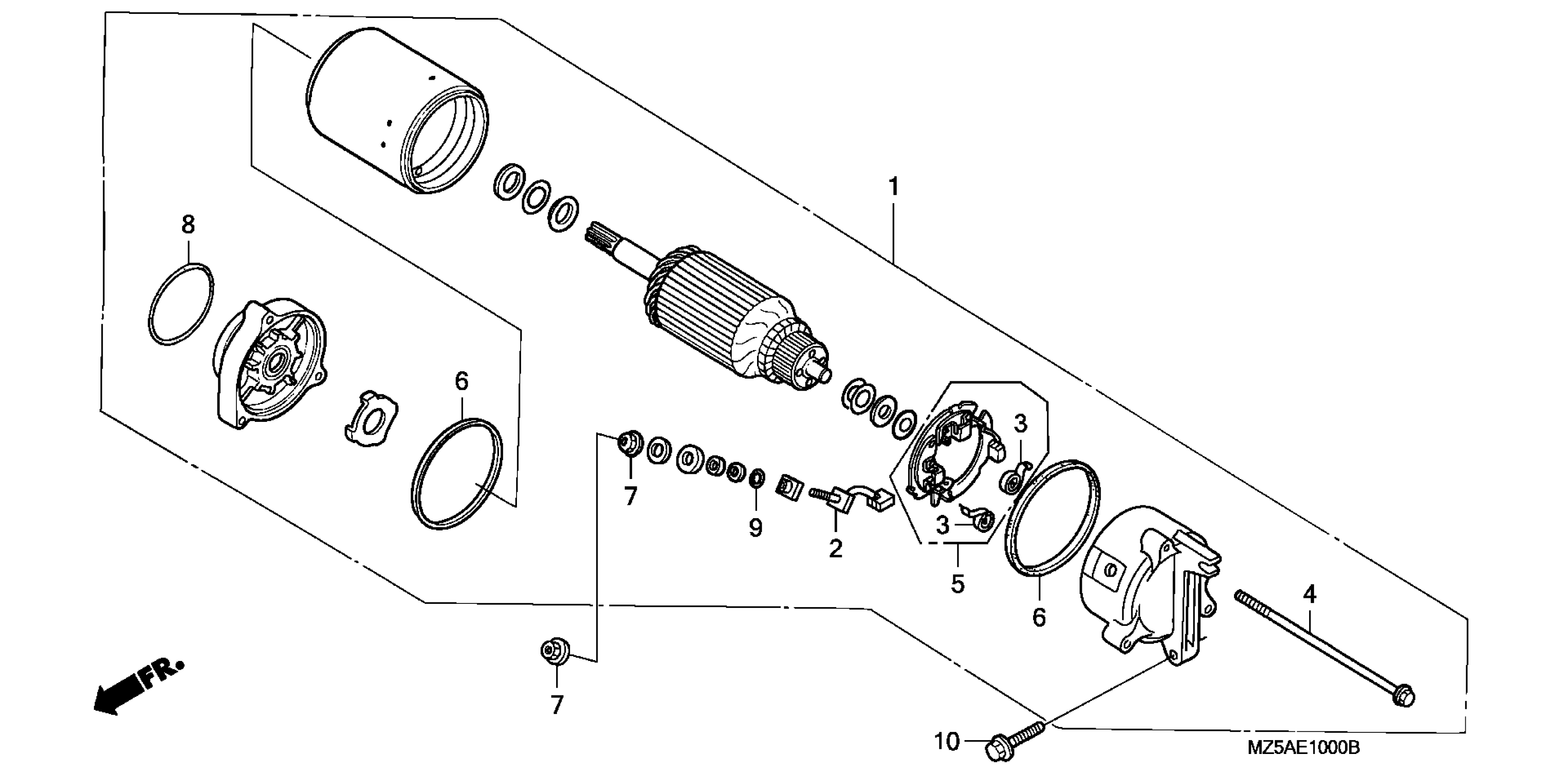

Honda VF750CA (02) MAGNA, JPN, VIN# JH2RC430-2M800001 STARTER MOTOR Diagram

MOTOR ASSY., STARTER

31200-MZ5-003

Unavailable

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$22.19

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

BOLT, SETTING

31205-MN0-008

$5.07

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31206-KW1-901

$23.71

RING

31207-KS5-901

$2.90

NUT-WASHER (6MM)

90071-MB0-000

$1.88

O-RING

91309-MA6-000

$3.69

O-RING

91320-MB0-000

$2.20

BOLT, FLANGE (6X25)

96001-06025-00

$1.91
