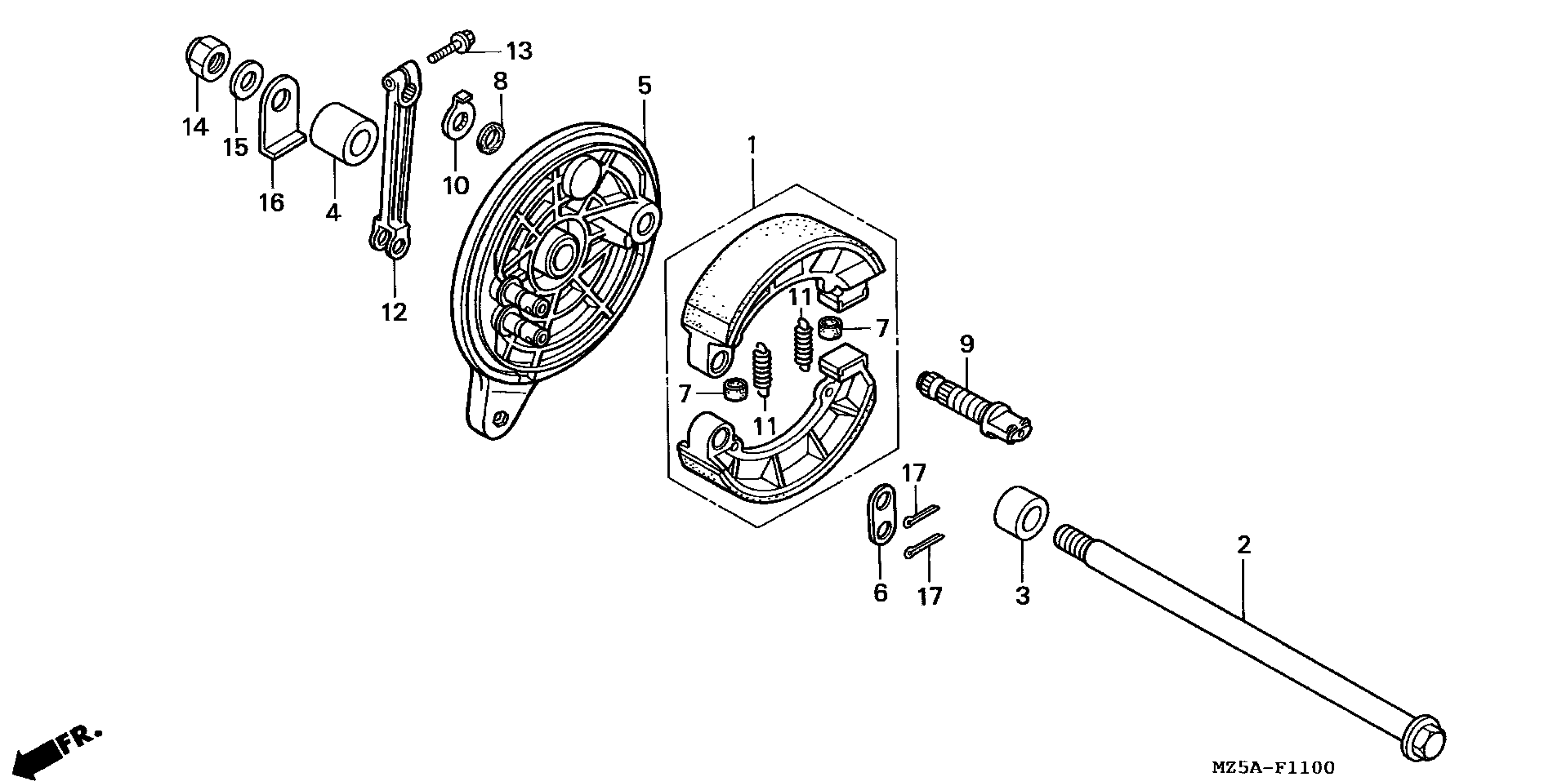

Honda VF750CA (02) MAGNA, JPN, VIN# JH2RC430-2M800001 REAR BRAKE PANEL Diagram

#

Description
Price

1

SHOE KIT, BRAKE

06430-MZ5-003

Unavailable

2

AXLE, RR. WHEEL

42301-MZ5-003

Unavailable

3

COLLAR, RR. WHEEL SIDE This part replaces 42311-MZ1-000.

42311-MZ1-610

Unavailable

3

COLLAR, RR. WHEEL SIDE

42311-MZ1-610

Unavailable

4

COLLAR, RR. BRAKE PANEL

42313-MZ5-000

Unavailable

5

PANEL, RR.

43100-MJ1-832

Unavailable

6

WASHER, ANCHOR PIN

43102-319-000

$6.21

7

TUBE, BRAKE RETURN SPRING

43124-MZ5-000

Unavailable

8

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

9

CAM, RR. BRAKE

43141-MB0-010

$41.60

10

INDICATOR, RR. BRAKE

43145-ME5-000

$5.84

11

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

12

ARM, RR. BRAKE

43410-MZ5-000

Unavailable

13

BOLT, FLANGE (8X25)

90107-MZ5-000

$4.65

14

NUT, U (18MM)

90305-KZ4-891

$15.83

15

WASHER (18X32X2)

90401-KZ4-890

$4.48

16

WASHER, RR. AXLE

90559-MJ0-630

Unavailable

17

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

17

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

17

PIN, SPLIT (2.5X30)

94201-25300

$1.49
