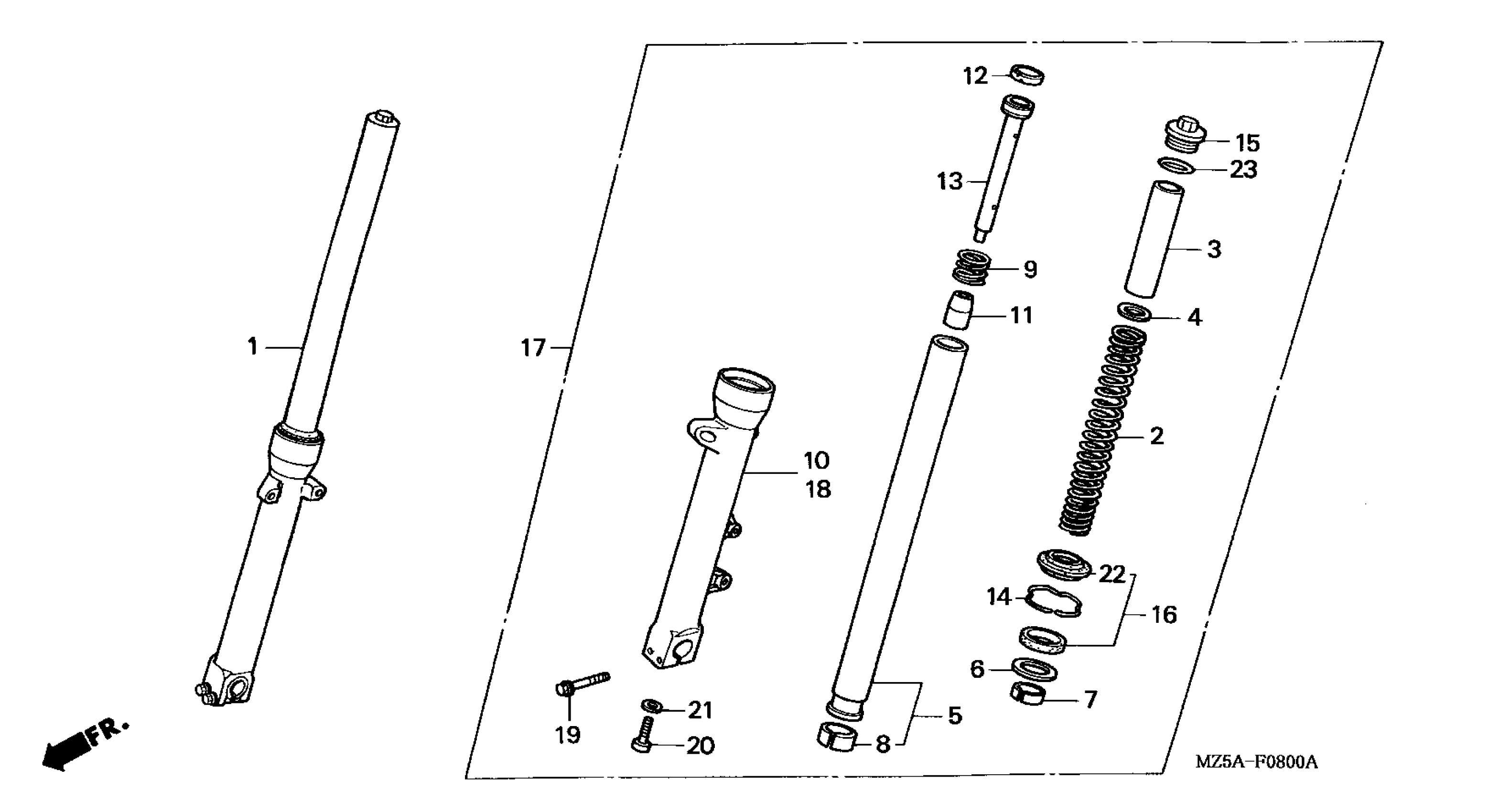

Honda VF750CA (02) MAGNA, JPN, VIN# JH2RC430-2M800001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-MZ5-912

Unavailable

2

SPRING, FR. FORK

51401-MZ5-671

Unavailable

3

COLLAR, SPRING (SHOWA)

51402-KV3-701

$23.19

4

SEAT, SPRING

51403-KF0-003

$4.47

5

PIPE, FR. FORK

51410-MZ5-671

Unavailable

6

RING, BACK-UP

51412-MB4-003

$8.66

7

BUSH, GUIDE (SHOWA)

51414-KCR-003

$12.58

7

BUSH, GUIDE (SHOWA) This part replaces 51414-MN5-003.

51414-KCR-003

$12.58

8

BUSH, SLIDER (SHOWA)

51415-KCR-003

$11.02

8

BUSH, SLIDER (SHOWA) This part replaces 51415-MM8-003.

51415-KCR-003

$11.02

9

SPRING, FR. REBOUND

51416-KF0-003

$6.62

10

CASE, R. (LOWER)

51420-MZ5-912

$418.43

11

PIECE, OIL LOCK

51432-MV9-003

$22.28

12

RING, PISTON (SHOWA)

51437-MM5-003

$4.94

13

PIPE, SEAT

51440-MZ5-671

Unavailable

14

RING, OIL SEAL STOPPER

51447-KA4-711

$4.20

15

BOLT, FR. FORK

51454-MM9-671

$34.44

16

SEAL SET, FR. FORK (SHOWA)

51490-MN8-305

$31.62

17

FORK ASSY., L. FR.

51500-MZ5-912

Unavailable

18

CASE, L. (LOWER)

51520-MZ5-912

$263.71

19

BOLT, FLANGE (8X45)

90109-MR7-000

$4.60

20

BOLT, SOCKET (8MM)

90116-KV3-701

$3.62

21

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

22

DUST SEAL

91254-MM8-003

$16.06

23

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.51
