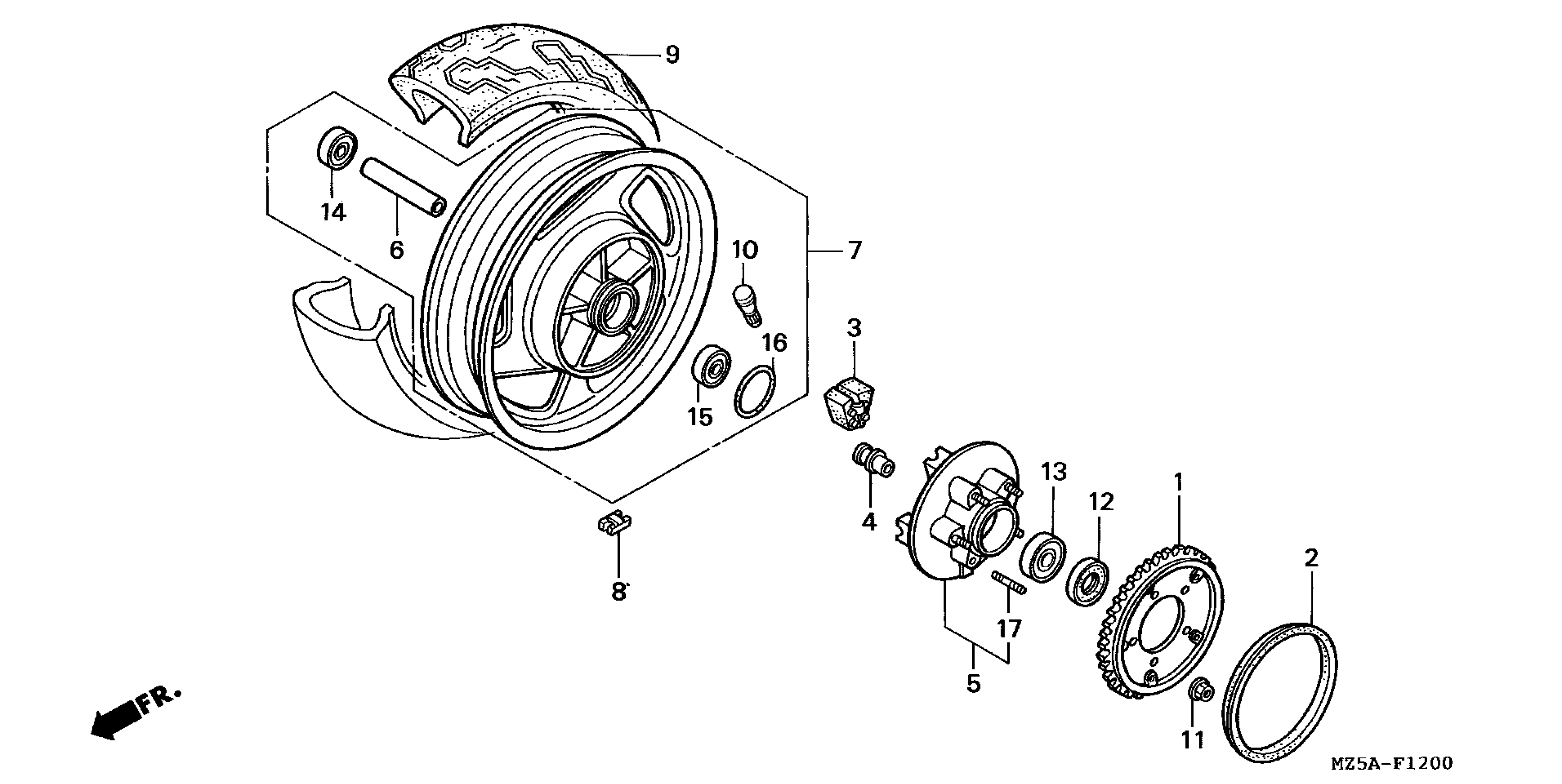

Honda VF750CA (01) MAGNA, JPN, VIN# JH2RC430-1M700001 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (40T)

41200-MZ5-770

Unavailable

2

ARRESTER, NOISE This part replaces 41212-MK4-000.

41212-MK4-010

Unavailable

3

DAMPER, RR. WHEEL

41241-MM5-000

$13.84

4

SLEEVE, RR. AXLE

42606-MS2-000

Unavailable

5

FLANGE, FINAL DRIVEN

42610-MS2-000

Unavailable

6

COLLAR, RR. AXLE DISTANCE

42620-MZ5-000

Unavailable

7

WHEEL SET, RR.

42650-MZ5-305

Unavailable

8

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

8

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

8

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

8

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

8

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

8

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

9

TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP) This part replaces 42711-MZ5-014.

42711-MZ5-024

$188.15

9

TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP)

42711-MZ5-024

$188.15

10

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

11

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

12

OIL SEAL (34X62.2X7)

90753-MG5-670

$12.86

13

BEARING, RADIAL BALL (6305) (UU) This part replaces 91051-MAT-003.

91051-MBT-611

$34.28

13

BEARING, RADIAL BALL (6305) (UU) This part replaces 91051-MM5-003.

91051-MBT-611

$34.28

14

BEARING, RADIAL BALL (6204UU) (NSK)

91052-MM5-003

$33.97

15

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$32.14

16

O-RING (69X2)

91302-MS2-003

$4.13

17

BOLT, STUD (12X28)

92918-12028-0E

Unavailable
