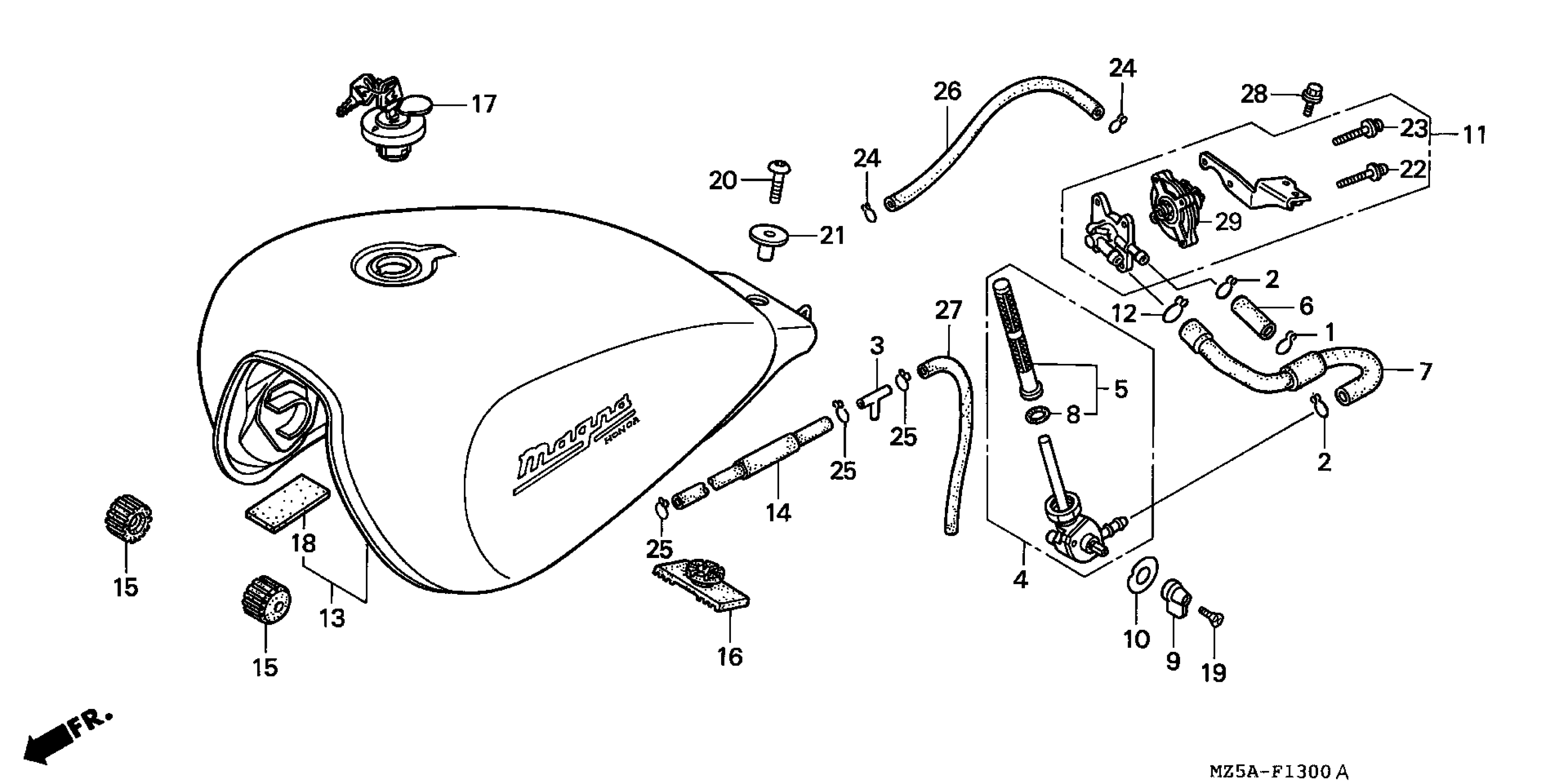

Honda VF750CA (01) MAGNA, JPN, VIN# JH2RC430-1M700001 FUEL TANK Diagram

CLIP, OIL DRAIN TUBE

15771-551-000

$9.44

CLIP, BREATHER TUBE

15772-500-010

$3.90

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

T-JOINT

16180-195-731

$12.95

PETCOCK ASSY. This part replaces 16950-MZ5-670.

16950-MZ5-672

$111.92

PETCOCK ASSY. This part replaces 16950-MZ5-671.

16950-MZ5-672

$111.92

PETCOCK ASSY.

16950-MZ5-672

$111.92

SCREEN SET, FUEL STRAINER

16952-KAZ-000

$28.67

TUBE B, FUEL

16952-MZ5-000

$1.77

TUBE A, FUEL

16956-MZ5-000

$14.62

O-RING

16958-KM9-005

$3.89

LEVER, PETCOCK

16963-MZ5-000

Unavailable

MARK, FUEL

16965-MZ5-300

$9.03

PETCOCK ASSY., AUTO This part replaces 16970-MZ5-000.

16970-MZ5-003

$217.63

CLIP, BREATHER TUBE

17316-611-000

$9.23

TANK SET, FUEL (TYPE5) (WL)

17520-MZ5-A40ZA

Unavailable

TUBE

17525-MZ5-000

Unavailable

RUBBER, FR. FUEL TANK

17611-KE5-000

$5.98

RUBBER, RR. FUEL TANK

17613-MR7-000

$18.67

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$70.93

PROTECTOR, HOSE

64233-MR7-300

$5.67

SCREW, OVAL (5X12)

90111-MZ5-000

$3.85

BOLT, SPROCKET FIXING

90128-KL4-000

$9.21

COLLAR, FUEL TANK MOUNTING

90502-MZ5-000

Unavailable

SCREW-WASHER (4X16)

93892-04016-00

$1.49

SCREW-WASHER (4X16) This part replaces 93892-04016-10.

93892-04016-00

$1.49

SCREW-WASHER (4X20)

93892-04020-10

Unavailable

CLIP, TUBE (B7)

95002-02070

$1.80

CLIP, TUBE (B8)

95002-02080

$1.80

BULK HOSE, VACUUM (3.5X1000) (3.5X370)

95005-35001-20M

$9.67

BULK HOSE, VACUUM (4.5X1000) (4.5X300)

95005-45001-20M

$34.14

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

COVER SET, PETCOCK This part replaces 16953-MN5-003.

16953-MN5-023

$52.33

COVER SET, PETCOCK This part replaces 16953-MN5-013.

16953-MN5-023

$52.33
