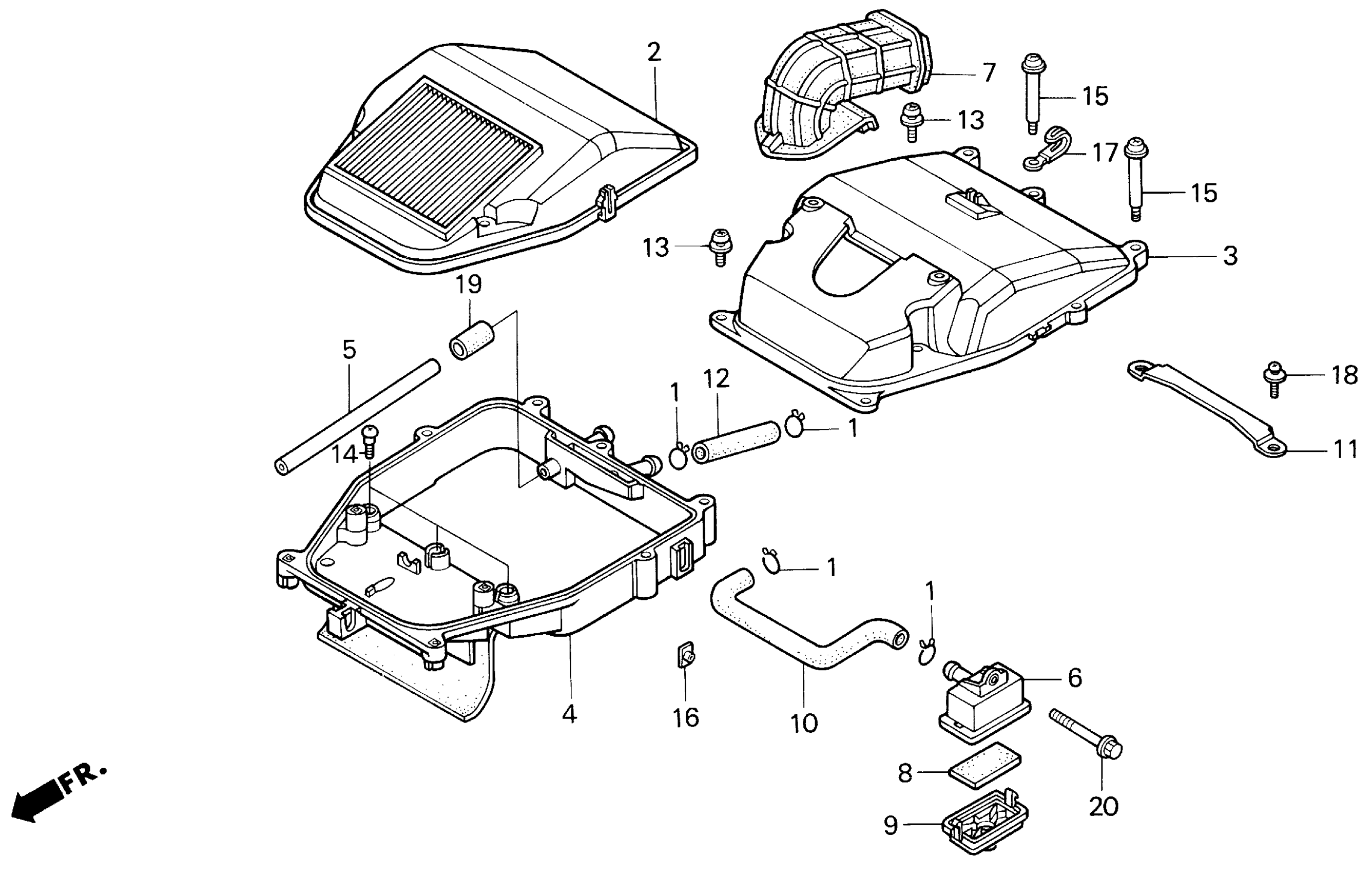

Honda VF750C2AC (97) MAGNA, JPN, VIN# JH2RC434-VM200001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, DRAIN TUBE (B20)

15772-GB5-670

$3.39

2

AIR CLEANER

17210-MZ5-000

$51.86

3

COVER, AIR CLEANER HOUSING

17220-MZ5-000

Unavailable

4

AIR CLEANER HOUSING

17230-MZ5-940

Unavailable

5

PIPE, AIR

17234-MZ5-740

Unavailable

6

CASE, SUB-AIR CLEANER

17251-KT8-000

$26.11

7

DUCT, AIR CLEANER IN.

17251-MZ5-000

Unavailable

8

FILTER, SUB-AIR CLEANER

17254-KAZ-000

$2.20

9

COVER, SUB-AIR CLEANER

17256-MM4-000

$19.85

10

TUBE, SUB-AIR CLEANER

17258-MZ5-000

Unavailable

11

STOPPER, AIR CLEANER IN. DUCT

17259-MZ5-000

Unavailable

12

TUBE A, BREATHER

17355-MZ5-000

Unavailable

13

SCREW, SPECIAL (5X12)

90105-MB1-000

$2.92

14

SCREW, PAN (5X19)

90141-KT8-000

$5.20

15

SCREW, PAN (4X40)

90141-MZ5-000

Unavailable

16

NUT, SPECIAL (6X7)

61304-958-003

$3.24

17

CLIP, SWITCH CORD

91400-MR8-000

Unavailable

18

SCREW-WASHER (5X10)

93891-05010-07

$1.49

19

BULK HOSE, VACUUM (12X1000) (12X35)

95005-12001-10M

$61.17

20

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

20

BOLT, FLANGE (6X45)

95701-06045-07

$2.06
