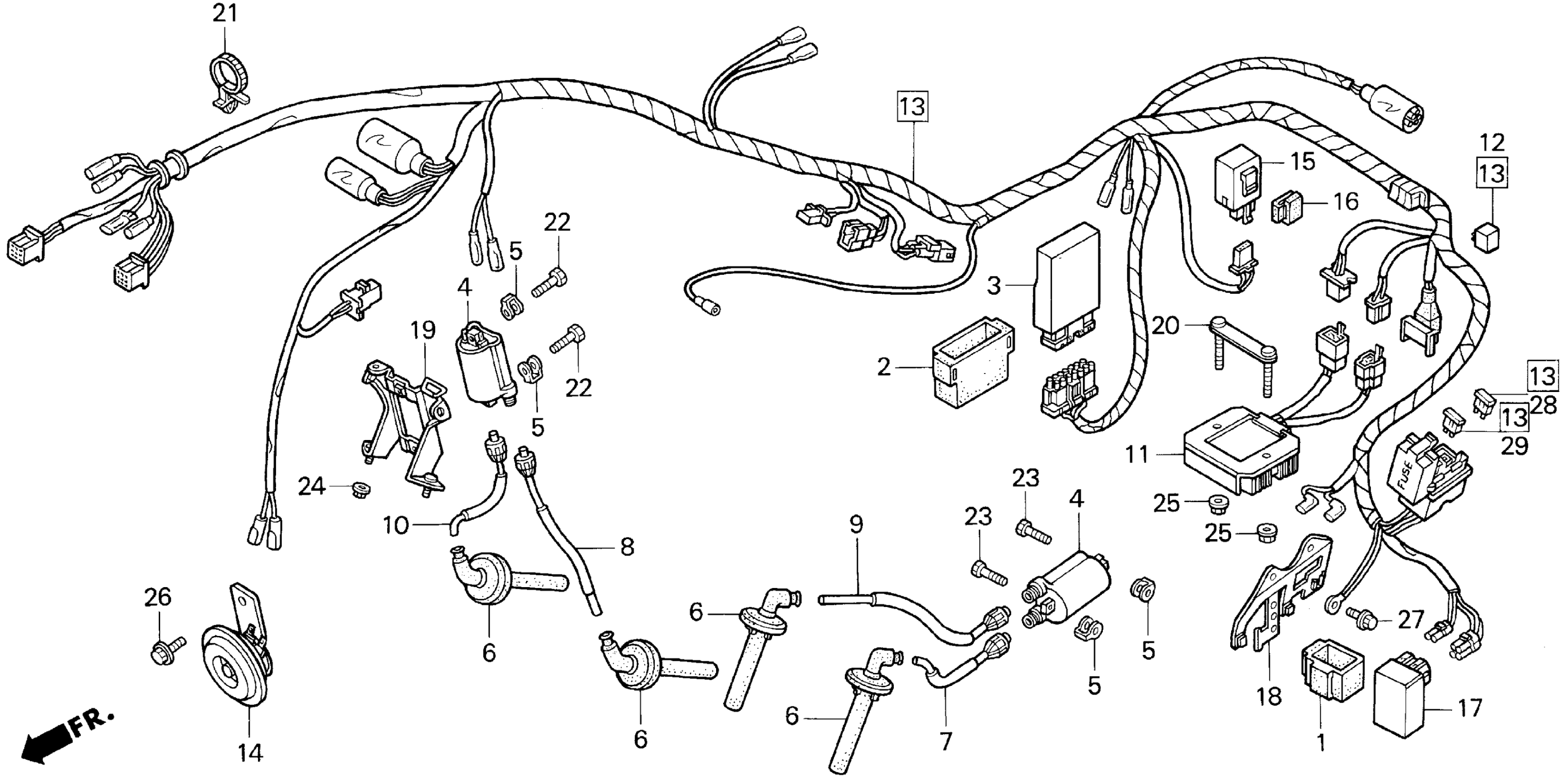

Honda VF750C2A (97) MAGNA, JPN, VIN# JH2RC433-VM200001 WIRE HARNESS Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-GB6-000

$4.81

2

CUSHION, SPARK UNIT

30405-MT6-000

Unavailable

3

MODULE, IGNITION CONTROL (CDI)

30410-MZ5-671

Unavailable

4

COIL, IGNITION

30510-KT7-023

$127.65

5

SPACER, IGNITION COIL

30520-ML7-000

$3.52

6

CAP ASSY,NOISE SU This part replaces 30700-KAF-010.

30700-KAF-003

$33.37

7

WIRE 1, IGNITION

30731-MZ5-000

Unavailable

8

WIRE 2, IGNITION

30731-KEA-505

Unavailable

8

WIRE 2, IGNITION This part replaces 30732-MZ5-000.

30731-KEA-505

Unavailable

9

WIRE 3, IGNITION

30731-KEA-505

Unavailable

9

WIRE 2, IGNITION This part replaces 30733-MZ5-000.

30731-KEA-505

Unavailable

10

WIRE 4, IGNITION

30731-KEA-505

Unavailable

10

WIRE 2, IGNITION This part replaces 30734-MZ5-000.

30731-KEA-505

Unavailable

11

RECTIFIER ASSY., REGULATE

31600-MZ5-003

Unavailable

12

RECTIFIER, SILICON

31700-196-000

$23.71

13

WIRE HARNESS

32100-MZ5-670

Unavailable

14

HORN (LOW)

38120-MZ5-003

Unavailable

15

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$65.61

16

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.42

17

INDICATOR UNIT, TEMPERATURE

38710-MZ5-003

Unavailable

18

BRACKET, RR. IGNITION COIL

50333-MZ5-000

Unavailable

19

BRACKET, FR. IGNITION COIL

50334-MZ5-000

Unavailable

20

PLATE, REGULATE RECTIFIER

50336-MR1-000

$11.30

21

STRAP, CABLE (105MM) (BLACK)

90672-SB2-003

$5.23

22

BOLT, HEX. (6X22)

92101-06022-4J

$4.00

23

BOLT, HEX. (6X28)

92101-06028-4J

$4.29

24

NUT, FLANGE (6MM)

94050-06070

$1.32

25

NUT, FLANGE (6MM)

94050-06080

$0.59

26

BOLT, FLANGE (8X12)

95701-08012-07

$1.64

27

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

28

FUSE, BLADE (10A)

98200-31000

$1.19

29

FUSE, BLADE (15A)

98200-31500

$1.19
