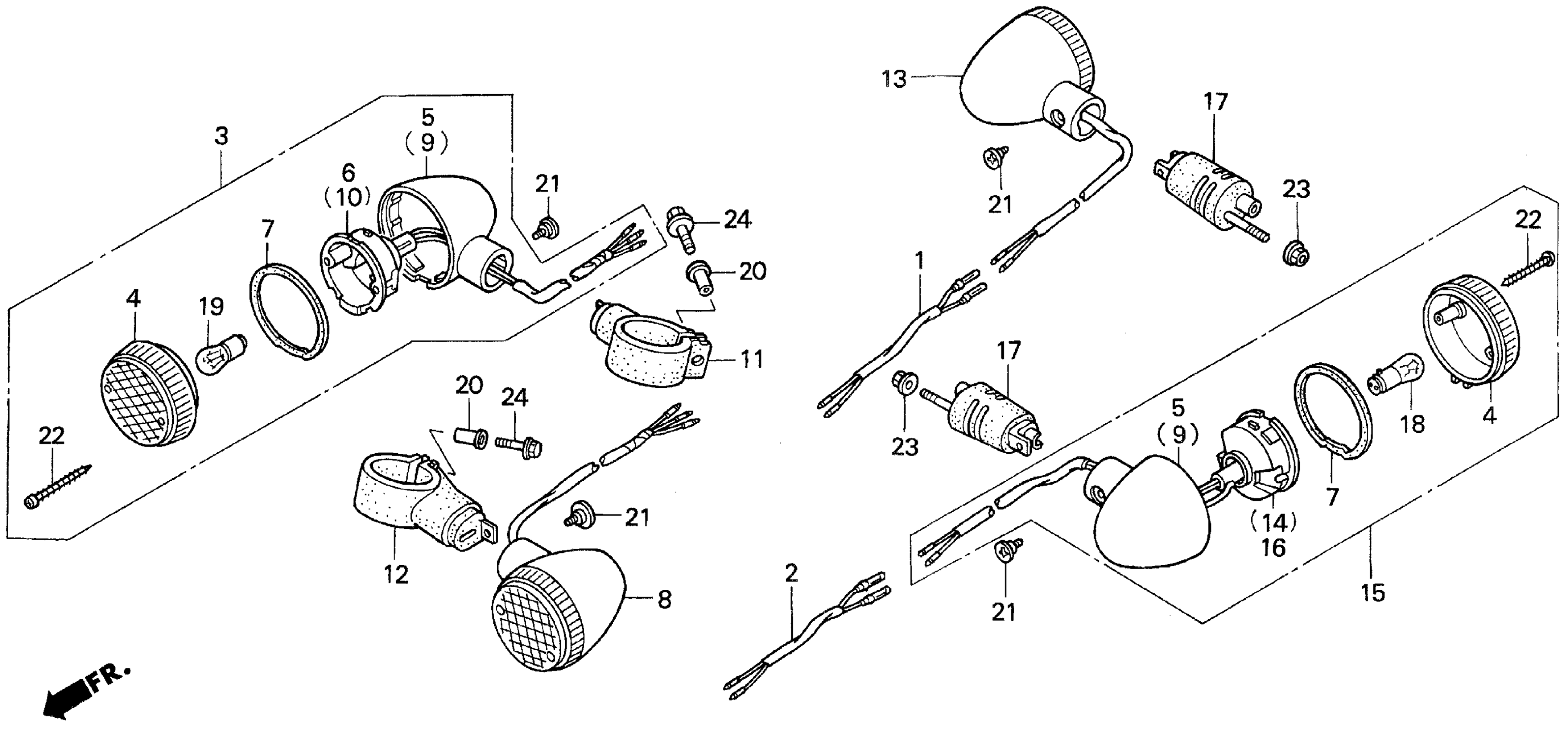

Honda VF750C2A (97) MAGNA, JPN, VIN# JH2RC433-VM200001 TURN SIGNAL Diagram

#

Description
Price

3

TURN SIGNAL ASSY., R. FR. (12V 23/8W)

33400-MK7-P00

Unavailable

3

TURN SIGNAL ASSY., R. FR. (12V 23/8W) This part replaces 33400-MN0-003.

33400-MK7-P00

Unavailable

4

LENS, FR. TURN SIGNAL

33401-MK7-672

$13.43

7

GASKET, TURN SIGNAL LENS

33407-MK7-671

$4.67

8

TURN SIGNAL ASSY., L. FR.

33450-MN0-003

Unavailable

11

STAY, R. FR. TURN SIGNAL

33490-MZ5-000

Unavailable

12

STAY, L. FR. TURN SIGNAL

33491-MZ5-000

Unavailable

13

TURN SIGNAL ASSY., R. RR.

33600-MZ5-910

Unavailable

15

TURN SIGNAL ASSY., L. RR.

33650-MZ5-910

Unavailable

17

STAY, RR. TURN SIGNAL

33690-MZ5-000

Unavailable

18

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

19

BULB (12V 23/8W) (STANLEY)

34905-425-671

$6.67

20

COLLAR, NUMBER PLATE BRACKET

84702-KV0-670

Unavailable

21

SCREW, SPECIAL (6X8)

90380-MZ5-000

$4.85

22

SCREW, TAPPING (4X25)

93901-34610

$1.49

23

NUT, FLANGE (8MM)

94050-08080

$1.49

24

BOLT, FLANGE (6X30)

96001-06030-07

$1.80
