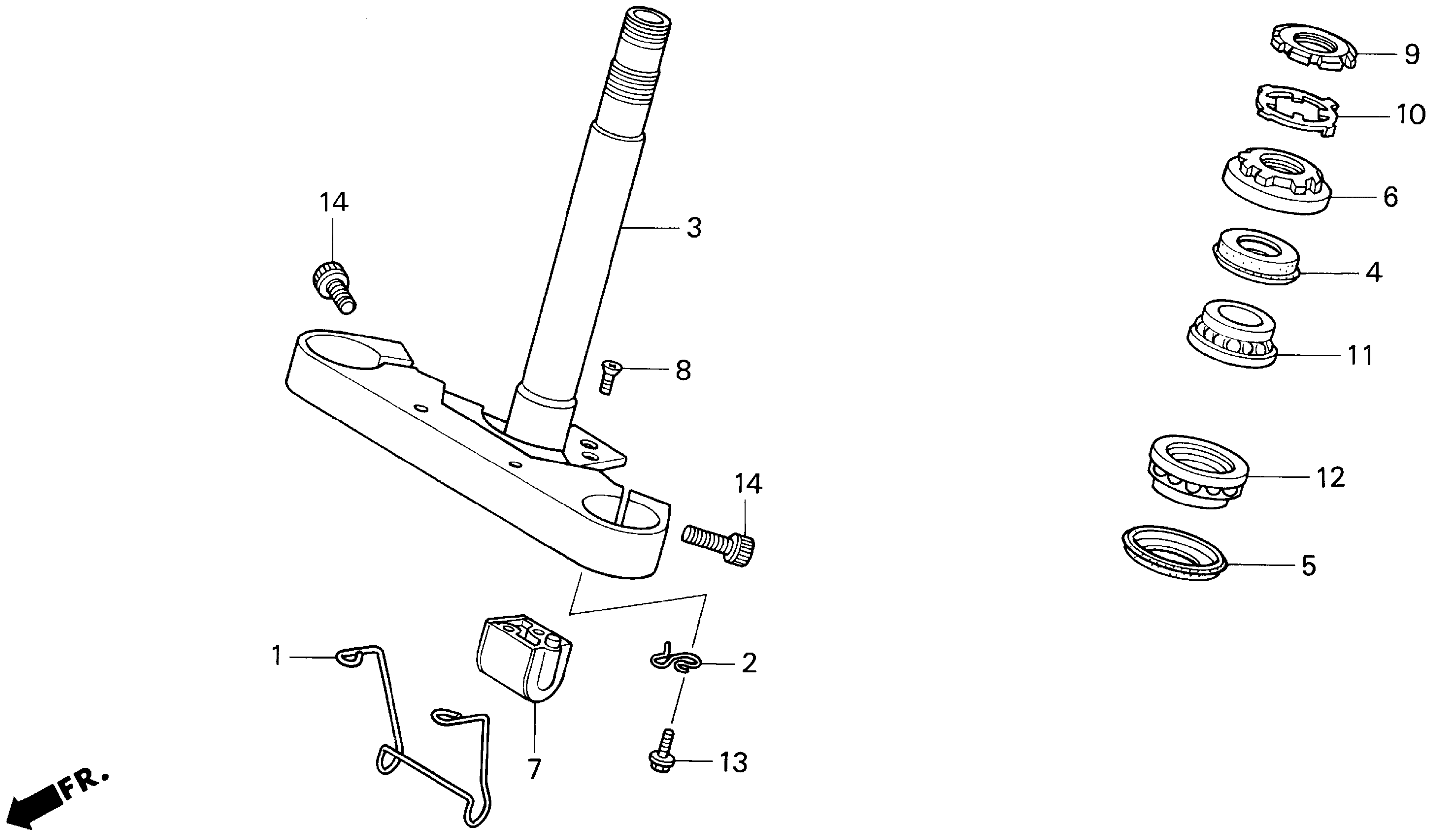

Honda VF750C2A (97) MAGNA, JPN, VIN# JH2RC433-VM200001 STEERING STEM Diagram

CLAMP A, BRAKE HOSE

45131-MZ5-000

Unavailable

CLAMP, SPEEDOMETER CABLE

53105-MZ5-000

Unavailable

STEM SUB-ASSY., STEERING This part replaces 53200-MZ5-000.

53219-MZ5-M10

Unavailable

STEM SUB-ASSY., STEERING

53219-MZ5-M10

Unavailable

DUST SEAL, STEERING (UPPER) (ARAI)

53213-MB4-771

$12.13

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

THREAD, STEERING HEAD TOP

53220-422-000

$32.73

LOCK, HANDLEBAR

53600-086-007

$47.89

LOCK, HANDLEBAR This part replaces 53600-126-921.

53600-086-007

$47.89

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$36.57

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$36.57

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, SOCKET (10X25)

96700-10025-10

$2.51
