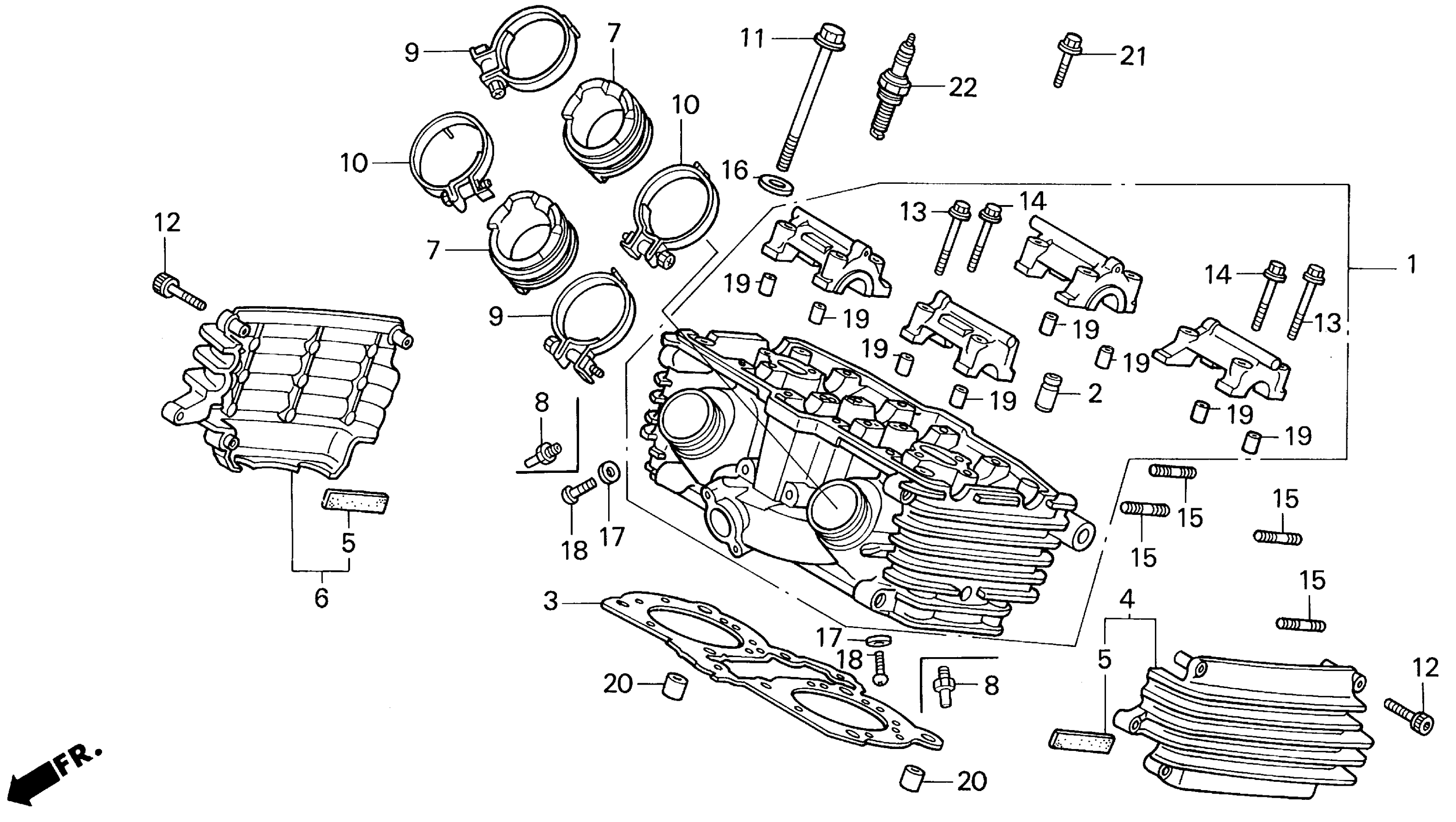

Honda VF750C2A (97) MAGNA, JPN, VIN# JH2RC433-VM200001 REAR CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., RR.

12020-MZ5-315

$1,046.41

2

GUIDE, VALVE (OVER SIZE)

12204-MT4-305

$23.95

3

GASKET, CYLINDER HEAD

12251-MT4-014

Unavailable

4

FIN A, CYLINDER HEAD

12350-MZ5-000

Unavailable

5

RUBBER, SEAT

12352-MZ5-300

$3.36

6

FIN B, CYLINDER HEAD

12360-MZ5-000

Unavailable

7

INSULATOR, CARBURETOR

16211-MZ5-000

$56.33

9

BAND A, INSULATOR

16219-MM4-000

Unavailable

10

BAND B, INSULATOR

16220-MM4-000

$11.72

11

BOLT, FLANGE (9X93)

90007-ML7-920

$11.45

12

BOLT, SOCKET (6X28)

90012-MZ5-000

Unavailable

13

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.35

14

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.92

15

BOLT, STUD (6X22)

90036-MZ5-000

$6.38

16

WASHER (9MM)

90445-MM4-000

$4.30

17

WASHER, SEALING (5MM)

90452-323-000

$1.59

18

SCREW, PAN (5X8)

93500-05008-0A

$1.49

19

PIN, DOWEL (8X14)

94301-08140

$2.25

20

PIN, DOWEL (12X20)

94301-12200

$2.29

21

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

22

SPARK PLUG (CR8EH9) (NGK)

98059-58916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-58926.

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59910.

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) | (Optional).

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59926.

98059-59916

$8.09
