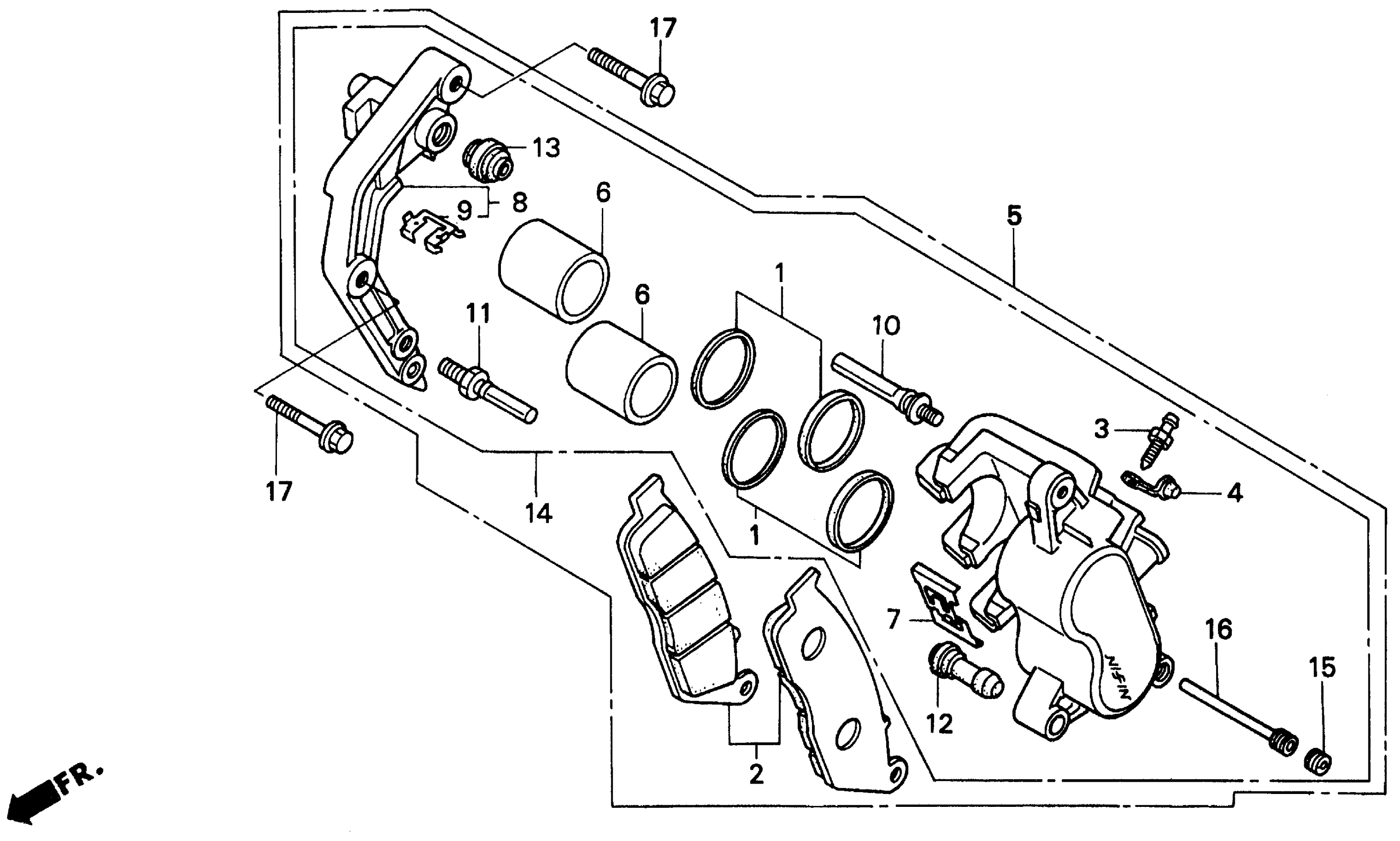

Honda VF750C2A (97) MAGNA, JPN, VIN# JH2RC433-VM200001 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06451-GE2-405

$11.41

PAD SET, FR.

06455-MS9-405

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON

45107-MN5-006

$37.88

SPRING, PAD (NISSIN)

45108-ML7-922

$6.19

BRACKET, L. FR.

45110-MZ6-006

Unavailable

RETAINER

45112-MS9-611

$5.46

BOLT A, PIN

45131-ML7-921

$15.44

BOLT, PIN

45131-166-016

$7.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. BRAKE

45150-MZ5-305

Unavailable

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-ML7-922

$10.67

BOLT, SPECIAL FLANGE (8X32)

90101-MZ8-000

$6.75
